Запчасти Case IH 2444 (H-03) - CONTROLS, ENGINE SPEED CONTROLS, GASOLINE ENGINE TRACTORS Controls

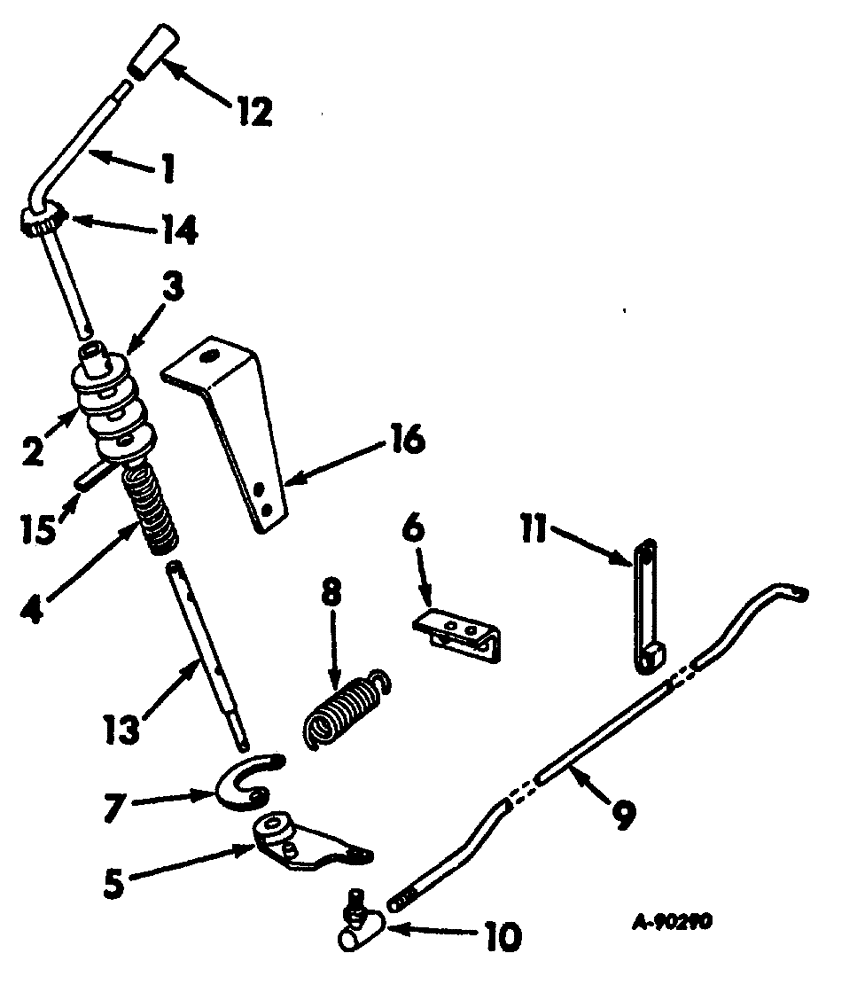

Схема запчастей Case IH 2444 - (H-03) - CONTROLS, ENGINE SPEED CONTROLS, GASOLINE ENGINE TRACTORS Controls
14
15
4
3
13
12
9
7
6
2
8
11
16
10
5
1

Артикул

Название

Примечание

Количество

1

402783R1

SPARE PART LEVER hand, governor control

1шт.

2

394716R1

DISC

WASHER friction, governor control

2шт.

3

402785R1

SPARE PART ASSY. friction, governor control

1шт.

4

401663R1

SPRING

governor control

1шт.

5

388635R11

SPARE PART ASSY. rod, governor control

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x .065"

1шт.

6

392142R2

ANGLE

anchor, balance spring

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

7

369468R1

SUPPORT

RING anchor, spring, governor control

1шт.

8

370587R1

SPRING

balance, governor control

1шт.

9

402786R1

SPARE PART governor control

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

16558R1

WASHER

17/64" x 5/8" x .065"

1шт.

10

19318R1

BALL JOINT

1/4"-28

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

hex, 1/4"-28

1шт.

11

388638R1

SPARE PART rod, governor control

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

12

388634R1

GRIP

handle, rod, governor control

1шт.

13

402782R1

SPARE PART lever, governor control

1шт.

19368R1

PIN,5/32" x 1", Coiled

4шт.

495-11053

WASHER,1/2", SAE

17/32" x 1-1/16" x 16 gauge

2шт.

14

394054R1

SPARE PART lever, governor control

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

cup point, hex s/c head, 8-32 x 3/8"

1шт.

15

401789R1

SPARE PART ASSY. friction, adj. lower, governor control

1шт.

16

401360R1

SPARE PART BRACKET governor

1шт.

102635

NUT,3/8"-16, G5

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

Выбрано товаров: 34
