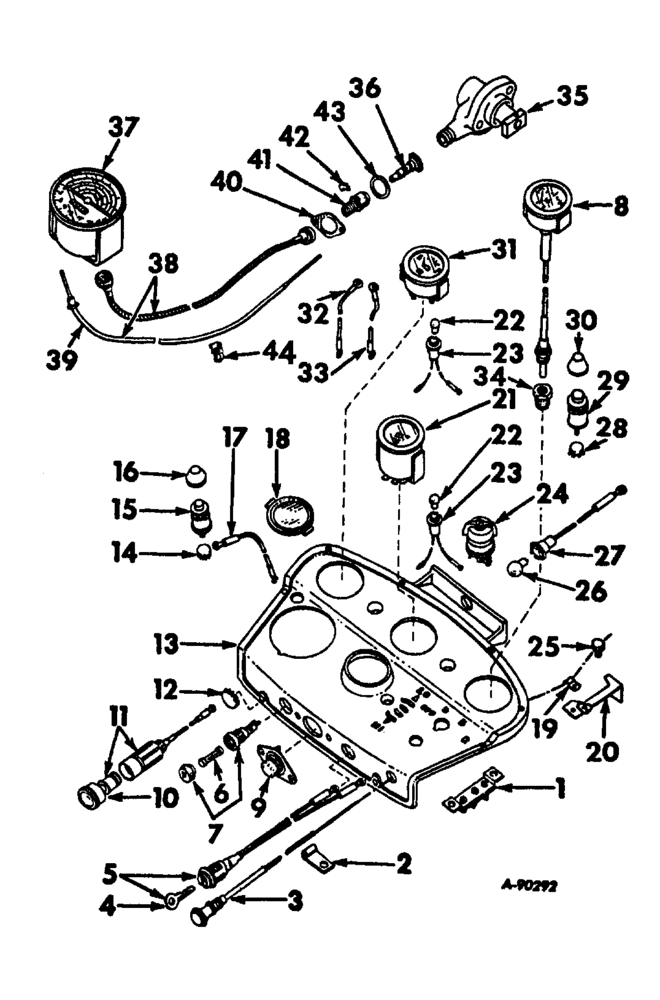

Запчасти Case IH 2444 (H-02) - CONTROLS, ENGINE CONTROLS AND INSTRUMENTS Controls

1

378336R91

BLOCK

ASSY. junction

1шт.

120614

NUT,Hex, #10 - 32

2шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

cap, Taptite, CDP hex washer head, 10-24 x 1/2"

2шт.

106497

LOCK WASHER,#10

2шт.

120217

LOCK WASHER,#10

2шт.

2

350740R1

CLIP

SPARE PART choke control, gasoline engine tractors

2шт.

3

371796R92

CABLE

CONTROL ASSY. choke, gasoline engine tractors

1шт.

3

381047R92

CABLE

CONTROL ASSY. shut-off, diesel engine tractors

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

1шт.

4

382458R2

KEY

KEY switch

1шт.

5

403562R1

IGNITION SWITCH

ASSY. key 479594R93

1шт.

365502R1

NUT

mounting, switch

1шт.

375431R1

LOCK WASHER

nut, mounting, switch

1шт.

6

9426333

FUSE,15 Amp, Type 3AG

cartridge type, AGC 15

1шт.

7

376852R91

HOUSING

ASSY. fuse

1шт.

8

390938R91

INDICATOR

ASSY. heat, gasoline engine tractors

1шт.

8

401532R1

SPARE PART ASSY. heat, diesel engine tractors

1шт.

9

397940R93

SWITCH

starting, push-button

1шт.

120611

NUT,#10 - 32

hex, 10-32 C-Z

2шт.

435429

SPARE PART machine, rod. head slt., 10-32 x 9/16" C-Z Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

2шт.

10

378781R91

PACKAGE

UNIT pop-out

1шт.

11

378338R91

CIGAR LIGHTER

PARTS ACCESSORY

1шт.

12

432281

HOLE PLUG BUTTON,29/32"

button, cr. pltd., , tractors without cigarette lighter 29/32"

1шт.

13

401390R1

SPARE PART ASSY. instrument

1шт.

13

401414R2

SPARE PART ASSY. instrument, tractors with power steering

1шт.

451928

SCREW cross recess ov. head, 10-24 x 5/8"

2шт.

432234

SCREW cross recess ov. head, 10-24 x 1-1/8"

4шт.

14

531167R1

SPARE PART button, horn, Replaces: 527844R1, tractors without electric horn

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

1шт.

15

393209R91

SWITCH

horn

1шт.

16

371487R1

CYLINDER END CAP

dust, horn switch, gray

1шт.

17

359380R91

CABLE

ASSY. horn switch to junction block

1шт.

18

406099R1

COVER

ASSY. hole plug, glow meter, Replaces: 371052R11

2шт.

19

275965R1

CLAMP

cable, shut-off

1шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, slotted pan head, 10-24 x 1/2"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

106497

LOCK WASHER,#10

1шт.

20

388623R11

BRACKET control, shut-off

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

21

389985R91

METER

hour, gasoline engine tractors

1шт.

21

378352R91

METER

ASSY. glow plug, Replaces: 370380R92, diesel engine tractors

1шт.

22

9412348

BULB,C2B, #257, 14V

LAMP oil and amp Tellite, No. 257, 12 volt

1шт.

23

CABLE ASSY., refer to starting and lighting, section G

1шт.

24

376851R92

SWITCH

ASSY. lighting

1шт.

120217

LOCK WASHER,#10

1шт.

25

388622R1

SPARE PART SWIVEL cable, fuel shut-off, diesel engine tractors

1шт.

363881R1

RETAINER

swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

machine, slotted head, 8-32 x 3/8"

1шт.

32592D

WASHER

WASHER swivel

1шт.

26

A14553

BULB

LAMP instrument light, No. 57, 12 volt

1шт.

27

CABLE ASSY., refer to starting and lighting section G

1шт.

28

531167R1

SPARE PART switch hole, glow plug, Replaces: 374342R1

1шт.

29

393209R91

SWITCH

ASSY. glow plug, less cap

1шт.

30

373612R1

CAP

dust, switch, glow plug, red

1шт.

31

402601R1

FUEL GAUGE

electric

1шт.

32

402602R1

SPARE PART ASSY. gauge to sending unit

1шт.

33

402603R1

SPARE PART ASSY. gauge to junction block

1шт.

34

51510D

BUSHING

installation, lamp, capillary tube

1шт.

35

3042474R91

ANGLE

BOX ASSY. drive gear, diesel engine tractors

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

2шт.

36

369695R91

GEAR

ASSY. drive, gasoline engine tractors

1шт.

37

388893R91

SPEEDOMETER

TACHOMETER ASSY., gasoline engine tractors

1шт.

37

388893R91GV

TACHOMETER

Value, Speedometer

1шт.

37

388894R91

TACHOMETER

SPARE PART SPEEDOMETER ASSY., diesel engine tractors

1шт.

38

388524R91

CABLE

SHAFT ASSY. drive, flexible, diesel engine tractors

1шт.

38

150938R91

CABLE PULLING GRIP

SHAFT ASSY. drive, flexible, gasoline engine tractors

1шт.

39

406814R1

CORE

SPARE PART ASSY. drive, flexible, gasoline engine tractors

1шт.

40

363817R1

RETAINER

PLATE housing, connection, gasoline engine tractors

1шт.

435429

SPARE PART machine, slotted round head, 10-32 x 9/16" Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

2шт.

41

369692R1

HOUSING

connection, gasoline engine tractors

1шт.

42

369693R1

SUPPORT

RETAINER drive gear, gasoline engine tractors

1шт.

43

363814R1

GASKET

housing, connection, gasoline engine tractors

1шт.

44

361774R1

SPARE PART drive shaft, flexible

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.
