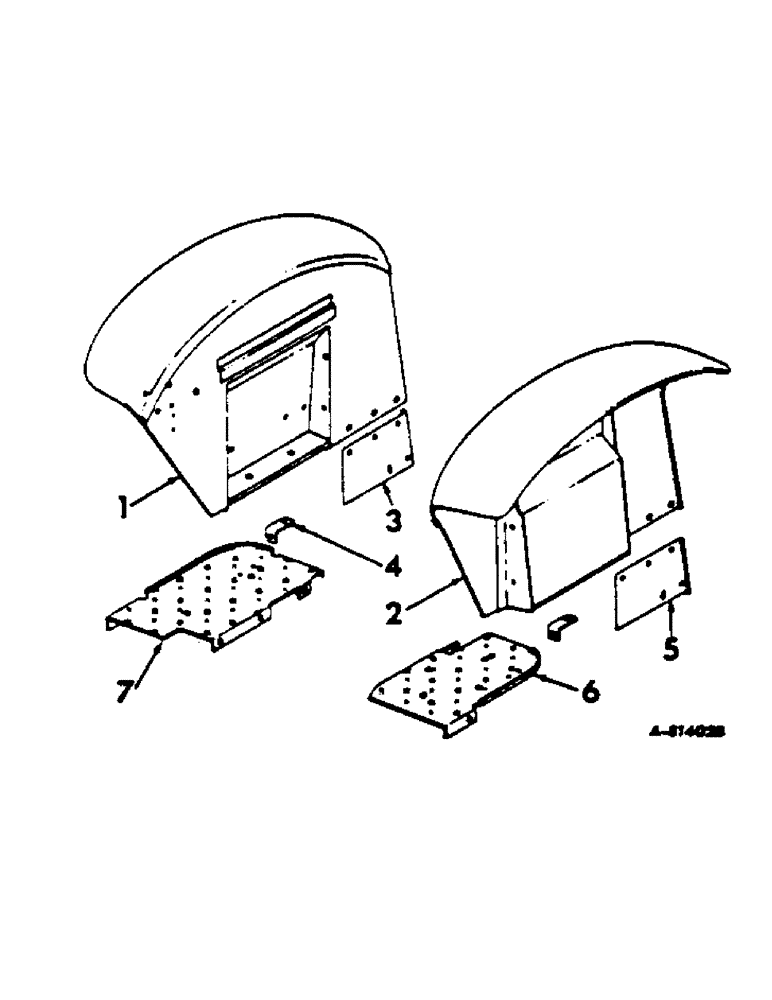

Запчасти Case IH 2444 (A-07) - CHASSIS, RADIATOR AND SHEET METAL, FENDERS AND PLATFORMS Chassis, Radiator & Sheet Metal

1

401401R1

SPARE PART ASSY., L.H.

1шт.

102635

NUT,3/8"-16, G5

1шт.

102639

NUT,5/8"-11, G5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW cap, hex head, 5/8"-11 x 2-1/4"

2шт.

103321

LOCK WASHER,3/8"

1шт.

103325

LOCK WASHER,5/8"

2шт.

2

401402R1

SPARE PART ASSY., R.H.

1шт.

102635

NUT,3/8"-16, G5

1шт.

102639

NUT,5/8"-11, G5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW cap, hex head, 5/8"-11 x 2-1/4"

2шт.

103321

LOCK WASHER,3/8"

1шт.

103325

LOCK WASHER,5/8"

2шт.

3

388387R2

SPARE PART fender, L.H.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

machine, slotted truss head, 1/4"-20 x 1/2" C-Z

3шт.

492-11025

LOCK WASHER,1/4"

3шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x 0.65")

2шт.

4

391732R11

SPARE PART ASSY. fender clamp

2шт.

102635

NUT,3/8"-16, G5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

4шт.

446363

WASHER,5/16"

3/8" x 7/8" x .083" gauge

2шт.

5

388388R2

SPARE PART PANEL, R.H.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

machine, slotted truss head, 1/4"-20 x 1/2" C-Z

3шт.

492-11025

LOCK WASHER,1/4"

3шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x 0.65")

2шт.

6

3069240R92

SPARE PART ASSY, L.H.

1шт.

102635

NUT,3/8"-16, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

4шт.

7

3069241R92

SPARE PART ASSY., R.H.

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

3шт.
