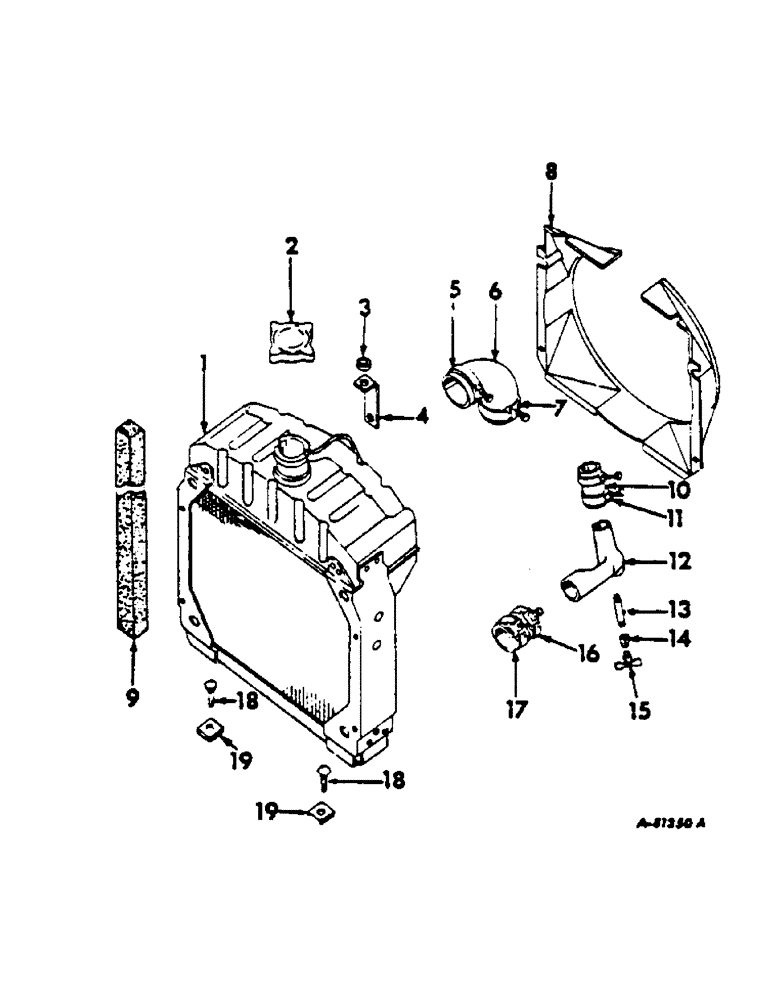

Запчасти Case IH 2444 (A-05) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS Chassis, Radiator & Sheet Metal

1

388458R91

SPARE PART ASSY., optional with 405474R1

1шт.

1

405474R1

SPARE PART ASSY., optional with 388458R91

1шт.

2

393229R91

CAP

ASSY. radiator filler

1шт.

3

132469R1

RUBBER WASHER

BUSHING rubber, radiator support

1шт.

4

388461R1

SPARE PART BRACKET radiator

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

Q1500

WASHER

SPARE PART 11/32" x 1-1/4" x 16 gauge

1шт.

231-1435

LOCK NUT,5/16"-18, GB

Stop, ESNA

1шт.

5

39226H

CLAMP

hose, radiator inlet, upper, for radiator 388458R91

1шт.

5

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

hose, for radiator 405474R1

1шт.

6

369397R1

HOSE,2.38" ID, 2.50" ID x 4.00", SAE 20R4 Class R Grade -1

elbow, radiator inlet, for radiator 388458R91

1шт.

6

369397R1GV

RADIATOR HOSE

Value, Elbow, Radiator Inlet

1шт.

6

405111R1

RADIATOR HOSE,2.50" ID, 2.25" ID x 4.00", SAE 20R4, CLASS R, GRADE 1

Inlet, For radiator 405474R1

1шт.

7

39233H

CLAMP

hose, radiator inlet, lower, for radiator 388458R91

1шт.

7

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

hose, for radiator 405474R1

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

cap, hex head, 1/4"-28 x 1/2"

2шт.

8

369399R1

SHROUD

HOUSING fan

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

cap, hex head, 1/4"-28 x 1/2"

2шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

cap, hex head, 1/4"-28 x 3/4"

2шт.

103319

LOCK WASHER,1/4"

4шт.

9

384210R1

SPARE PART GASKET side baffle, radiator

2шт.

10

387721R1

HOSE,1.38" ID x 4.00", SAE 20R1

Inlet, Water Pump

1шт.

11

39142H

COLLAR CLAMP

hose, inlet, water pump

2шт.

12

369396R1

ELBOW

radiator outlet, for radiator 388458R91

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

pipe, square socket head, 3/8"

1шт.

12

405759R1

SPARE PART water outlet, for radiator 405474R1

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

pipe, auto square socket, 3/8"-18

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

13

12469R1

HYD CONNECTOR

NIPPLE drain pipe, radiator, 3/8" x 4-1/4"

1шт.

14

111644

COUPLING

reducing pipe, 3/8" x 1/4"

1шт.

15

144569

COCK, DRAIN

type C, 1/4"

1шт.

16

29970D

CLAMP

hose, outlet, radiator

2шт.

17

20075DB

RADIATOR HOSE,50.80 mm ID x 57.20 mm, SAE 20R4 Class R

Outlet

1шт.

18

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

mounting, radiator

2шт.

446220

WASHER

WASHER, 1/2" x 1-1/8" x .083"

2шт.

18601R1

NUT,7/16"-20, GC

stop, ESNA, 7/16"-20

2шт.

19

47240D

PAD

radiator, for radiator 388458R91

2шт.

19

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

PAD, for radiator 405474R1

2шт.
