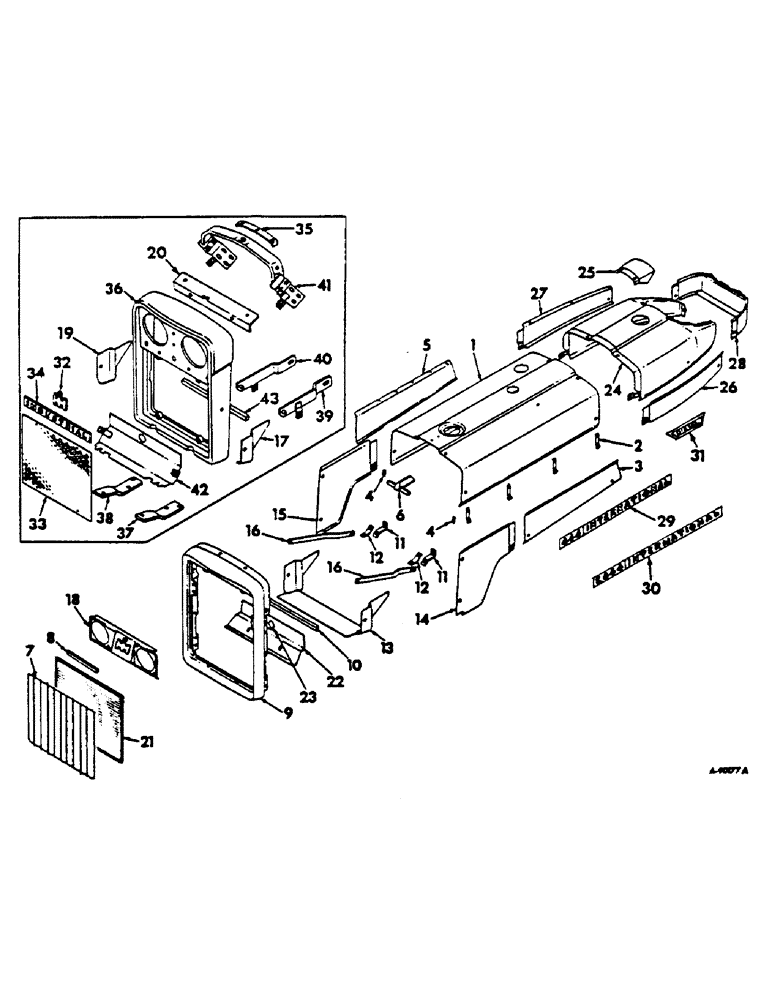

Запчасти Case IH 2444 (A-03) - CHASSIS, RADIATOR AND SHEET METAL, HOOD AND RADIATOR GRILLE Chassis, Radiator & Sheet Metal

1

388652R11

SPARE PART SHEET ASSY., gasoline engine tractors with underslung exhaust

1шт.

1

388651R11

SPARE PART SHEET ASSY., diesel engine tractors with uderslung exhaust

1шт.

1

388974R11

SPARE PART SHEET ASSY., gasoline engine tractors with vertical exhaust

1шт.

1

388975R11

SPARE PART SHEET ASSY., diesel engine tractors with vertical exhaust

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex washer head, 5/16"-18 x 5/8"

8шт.

2

369173R1

SPRING

hood panel

6шт.

110633

NUT,#10-24

6шт.

3

401411R1

PANEL

side, front hood, L.H.

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

long mounting, hood side panel

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

short mounting, hood side panel

1шт.

4

376787R1

WASHER

RETAINER mounting screw, side panel

4шт.

5

401412R1

PANEL

side, front hood, R.H.

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

long mounting, hood side panel

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

short mounting, hood side panel

1шт.

6

369180R1

PRODUCT GRAPHIC

ORNAMENT hood

1шт.

6

369180R1GV

DECAL

Value, Ornament, Hood

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

machine, hex head, with external tooth lock washer, 10-24 x 7/16"

2шт.

7

401494R1

GRILLE

SPARE PART ASSY. radiator

1шт.

173137

SPARE PART light spring, 1/8"

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

7

401983R1

SPARE PART ASSY. radiator, 2444 tractors with front mounted hydraulic power supply

1шт.

8

401495R1

SPARE PART cushion, grille screen

2шт.

9

401400R11

SPARE PART ASSY. radiator grille

1шт.

10

370181R1

GASKET

GASKET radiator, bottom baffle

1шт.

11

388628R1

SPARE PART BRACKET grille housing

2шт.

12

388629R1

SPARE PART housing, radiator grille

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex head, 5/16"-18 x 5/8"

2шт.

13

388659R91

PANEL

ASSY. bolster side

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex washer head, 5/16"-18 x 5/8"

2шт.

106261

WASHER,1/4"

5/16" x 3/4" x .051"

2шт.

14

401396R11

SPARE PART ASSY. side, grille, L.H.

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16"-18

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex washer head, 5/16"-18 x 5/8"

2шт.

15

401397R11

SPARE PART ASSY. side, grille, R.H.

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16"-18

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex washer head, 5/16"-18 x 5/8"

2шт.

16

388643R1

SPARE PART upper, grille mounting

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

17

388909R1

SPARE PART bolster side, L.H., 2444 tractors with heavy duty grille

1шт.

18

401394R1

SPARE PART headlight

1шт.

401496R1

SPARE PART CLIP headlight panel

4шт.

180015

SCREW cap, hex head, 1/4"-20 x 7/16" C-Z

4шт.

492-11025

LOCK WASHER,1/4"

4шт.

19

388910R1

SPARE PART bolster side, R.H., 2444 tractors with heavy duty grille

1шт.

20

375246R1

SPARE PART mounting, headlight, 2444 tractors with heavy duty grille

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

cap, hex head, 3/8"-16 x 1-5/8"

2шт.

21

401497R1

SPARE PART radiator grille

1шт.

22

388648R1

SPARE PART radiator, lower

1шт.

22

405760R1

SPARE PART radiator, lower, for tractors with standard radiator 405474R1 or 405475R1

1шт.

22

405764R1

SPARE PART lower, H.D. grille radiator, tractors with heavy duty grille

1шт.

23

192280

HOLE PLUG BUTTON,1 1/4"

button, 1-1/4"

1шт.

24

401498R1

SPARE PART ASSY. instrument panel

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16"-18

2шт.

369916R2

SCREW,Hex Wshr Hd, #10 - 24 x 7/16"

cap, hex washer head, 10-24 x 7/16"

8шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex washer head, 5/16"-18 x 5/8"

6шт.

25

369268R11

SPARE PART ASSY. instrument panel housing

1шт.

26

376797R11

SPARE PART ASSY. instrument, side, L.H.

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex washer head, 5/16"-18 x 5/8"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

27

376798R11

SPARE PART ASSY. instrument, side, R.H.

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex washer head, 5/16"-18 x 5/8"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

28

401398R1

SPARE PART ASSY., instrument, lower, rear

1шт.

29

2754093R1

PRODUCT GRAPHIC

International 444, side name, L.H.

1шт.

29

2754092R1

PRODUCT GRAPHIC

International 444, side name, R.H.

1шт.

30

2754095R1

PRODUCT GRAPHIC

International 2444, side name, L.H.

1шт.

30

1754094R1

PRODUCT GRAPHIC, International 2444, side name, R.H.

1шт.

31

2754090R1

PRODUCT GRAPHIC

diesel

1шт.

31

2754091R1

SPARE PART lo-boy diesel

1шт.

31

2754089R1

SPARE PART lo-boy gasoline

1шт.

32

2751844R1

PRODUCT GRAPHIC

IH emblem, die casting, optional with 2751846R1

1шт.

155097

SPARE PART machine, cross recess round head, 10-24 x 5/16"

2шт.

147794

SPARE PART machine, cross recess round head, 10-24 x 1/2", industrial tractors

2шт.

495-21019

WASHER,#8

3/16" x 7/16" x .049"

2шт.

32

2751846R1

EMBLEM CASE/IH

PRODUCT GRAPHIC plastic, optional with 2751844R1

1шт.

385129R1

SCREW,Sl Rnd Hd, #10 - 16 x 3/8"

thread cutting, 10-16 x 3/8"

2шт.

385130R1

SPARE PART thread cutting, 10-16 x 9/16", industrial tractors

2шт.

395-31022

WASHER,#10

13/64" x 15/32" x .049"

2шт.

33

375243R1

SPARE PART GRILLE radiator, 2444 tractors with heavy duty grille

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

80681

LOCK WASHER,5/16"

4шт.

34

378518R1

SPARE PART industrial name, 2444 tractors with heavy duty grille

1шт.

398310R1

SPARE PART mounting, industrial name plate

3шт.

35

375244R11

SPARE PART ASSY. hood, top front, 2444 tractors with heavy duty grille

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

1шт.

36

388898R1

SPARE PART radiator, 2444 tractors with heavy duty grille

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

cap, hex head, 1/2"-13 x 2-1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/16" x .095"

2шт.

37

388899R1

SPARE PART BRACKET radiator guard, L.H., 2444 tractors with heavy duty grille

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

cap, hex head, 1/2"-13 x 1-3/8"

2шт.

103323

LOCK WASHER,1/2"

2шт.

38

388900R1

SPARE PART radiator guard, R.H., 2444 tractors with heavy duty grille

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

cap, hex head, 1/2"-13 x 1-3/8"

2шт.

103323

LOCK WASHER,1/2"

2шт.

39

388901R11

SPARE PART ASSY. radiator guard, L.H., 2444 tractors with heavy duty grille

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

cap, hex head, 1/2"-13 x 1-3/8"

2шт.

103323

LOCK WASHER,1/2"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/16" x .095"

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

1шт.

40

388902R11

SPARE PART ASSY. radiator guard, R.H., 2444 tractors with heavy duty grille

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

cap, hex head, 1/2"-13 x 1-3/8"

2шт.

103323

LOCK WASHER,1/2"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/16" x .095"

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

1шт.

41

388904R91

SPARE PART ASSY. hood, 2444 tractors with heavy duty grille

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16"-18

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

42

388907R11

SPARE PART ASSY. radiator, lower, 2444 tractors with heavy duty grille

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW cap, hex washer head, 5/16"-18 x 5/8"

2шт.

43

389838R1

FOAM

GASKET radiator, lower baffle, 2444 tractors with heavy duty grille

1шт.
