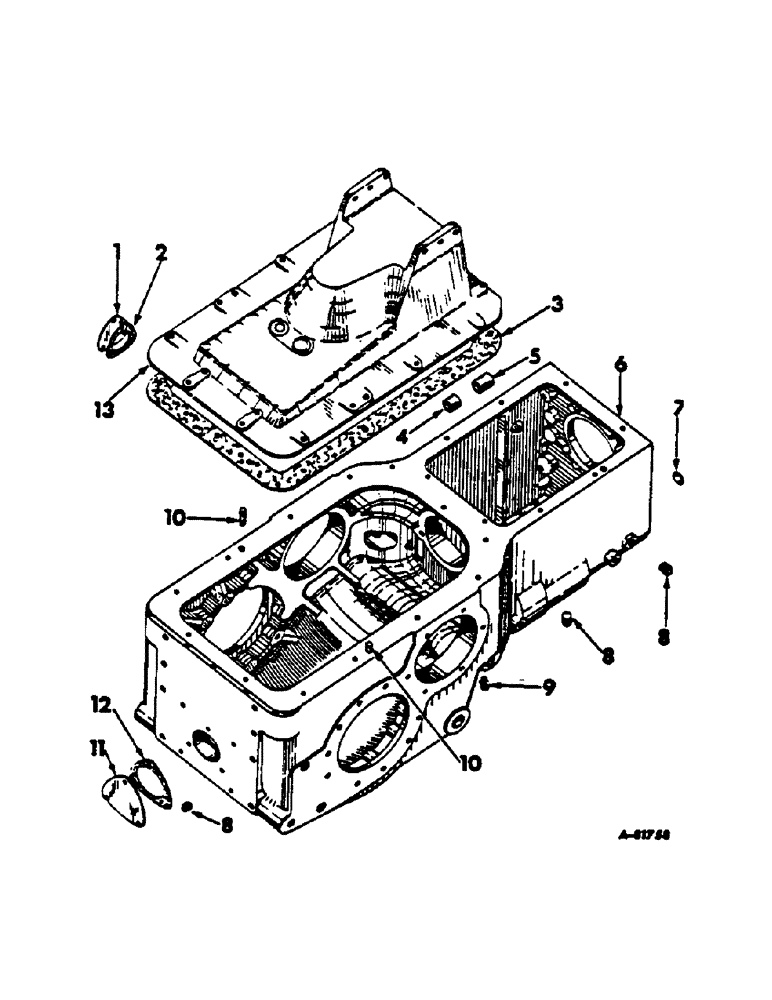

Запчасти Case IH 2444 (A-02) - CHASSIS, RADIATOR AND SHEET METAL, TRANSMISSION CASE AND COVER Chassis, Radiator & Sheet Metal

1

711466R1

PLATE

cover, shaft hole, PTO shifter

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

2

711312R1

GASKET

cover plate, shaft hole, PTO shifter

1шт.

3

703967R2

GASKET

GASKET rear cover, rear frame

1шт.

4

711272R2

BUSHING

reverse idler gear, rear

1шт.

5

3072136R1

BUSHING

reverse idler gear, front

1шт.

6

3072135R92

CASE

ASSY. transmission, composed of: (1) bushing 711272R2, (1) bushing 3072136R1, (1) case 3064228R4 (NSS), (2) fitting 109462, (2) pin 141284, (3) plug 103868, (1) plug 172575

1шт.

7

172575

PLUG,Exp, 1 9/16"

expansion, 1-9/16"

1шт.

8

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG pipe, square head, 1/2"

3шт.

9

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING elbow, 1/8" x 45°

2шт.

10

141284

PIN,25.4mm OD x 31.75mm L

2шт.

11

703972R1

PLATE

cover, PTO shaft opening

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

12

703971R1

GASKET

cover plate, PTO shaft opening

1шт.

13

3069942R11

SPARE PART rear frame, with two plugs 172599

1шт.

172599

PLUG,Exp, 2 3/8"

expansion, 2-3/8"

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

12шт.

103321

LOCK WASHER,3/8"

12шт.
