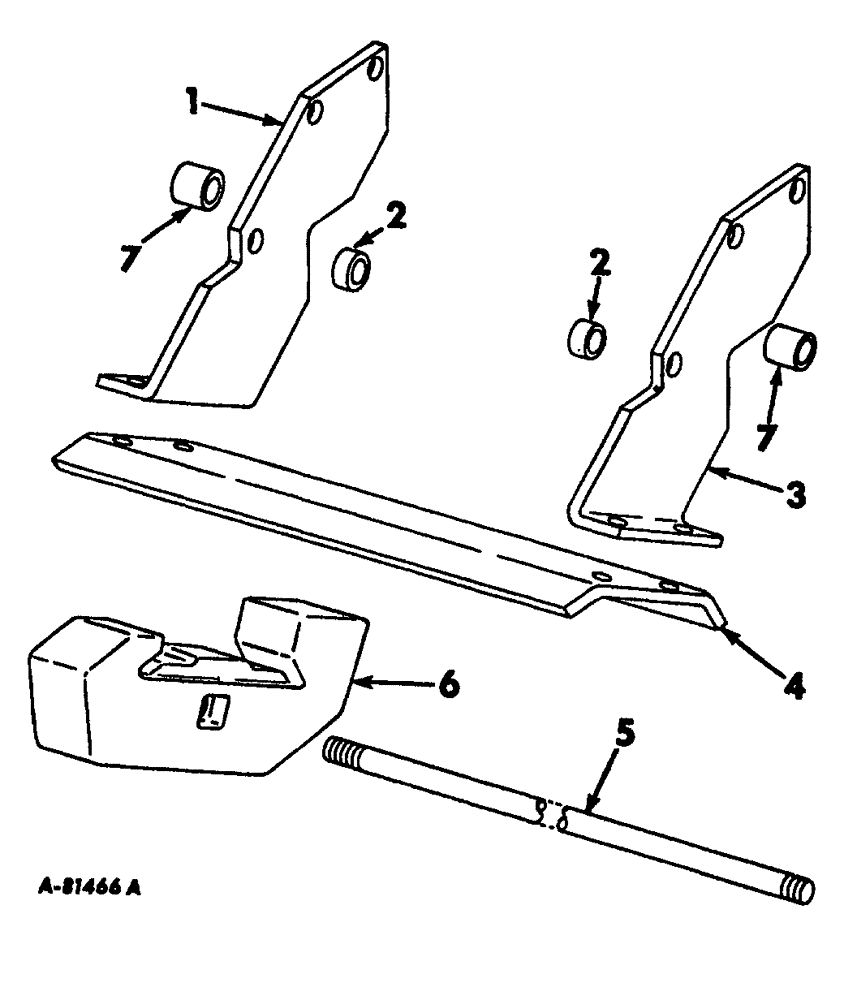

Запчасти Case IH 2444 (M-08) - SEAT, OPERATORS PLATFORM AND MISC., FRONT END WEIGHT BRACKET AND WEIGHTS, TRACTORS WITH BACKHOE (10) - OPERATORS PLATFORM

ATTACHMENT front end weight and bracket 381229R91

1шт.

1

390067R1

SPARE PART BRACKET, L.H., front weight

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW cap, hex head, 3/4"-10 x 2-3/4"

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

3шт.

2

267907R1

SPARE PART bracket, front weight

2шт.

3

390068R1

SPARE PART R.H., front weight

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW cap, hex head, 3/4"-10 x 2-3/4"

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

3шт.

4

381214R11

SPARE PART ASSY. mounting, front weight

1шт.

280954

NUT,3/4"-10, G5

4шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW cap, hex head, 3/4"-10 x 1-3/4"

4шт.

5

381217R1

SPARE PART cross tie, front weight

1шт.

425-1014

NUT,7/8"-9, G5

1шт.

427691

NUT

square, 7/8"-9 C-Z

1шт.

6

381216R1

WEIGHT

WEIGHT front end

8шт.

7

PO15162

SPARE PART pump bracket

2шт.
