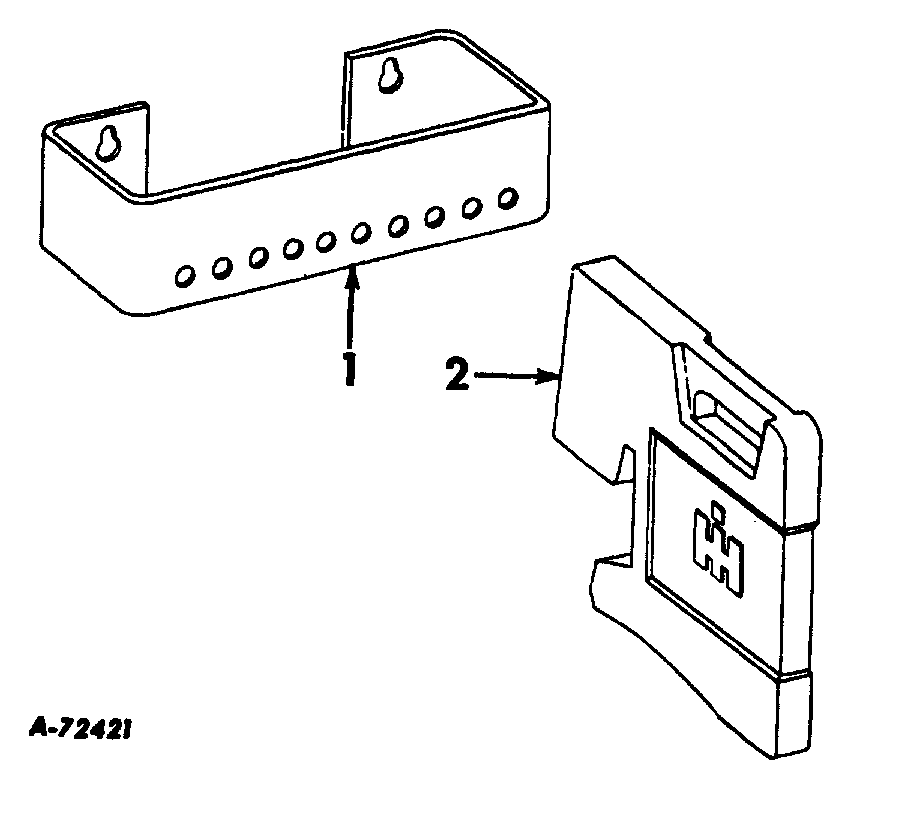

Запчасти Case IH 2444 (M-08[01]) - SEAT, OPERATORS PLATFORM AND MISC., FRONT END WEIGHT BRACKET AND WEIGHTS (10) - OPERATORS PLATFORM

383388R91

PARTS ACCESSORY weight mounting bracket, front end , also order weight and mounting parts desired

1шт.

1

383389R11

BRACKET

ASSY. weight mounting

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW cap, hex head, 3/4"-10 x 2" znd

4шт.

103326

LOCK WASHER,3/4"

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32" x 1-1/4" x 11 gauge

2шт.

2

383392R1

WEIGHT

WEIGHT front end, 67 lbs.

1шт.

2

383393R1

WEIGHT

front end, 100 lbs.

1шт.
