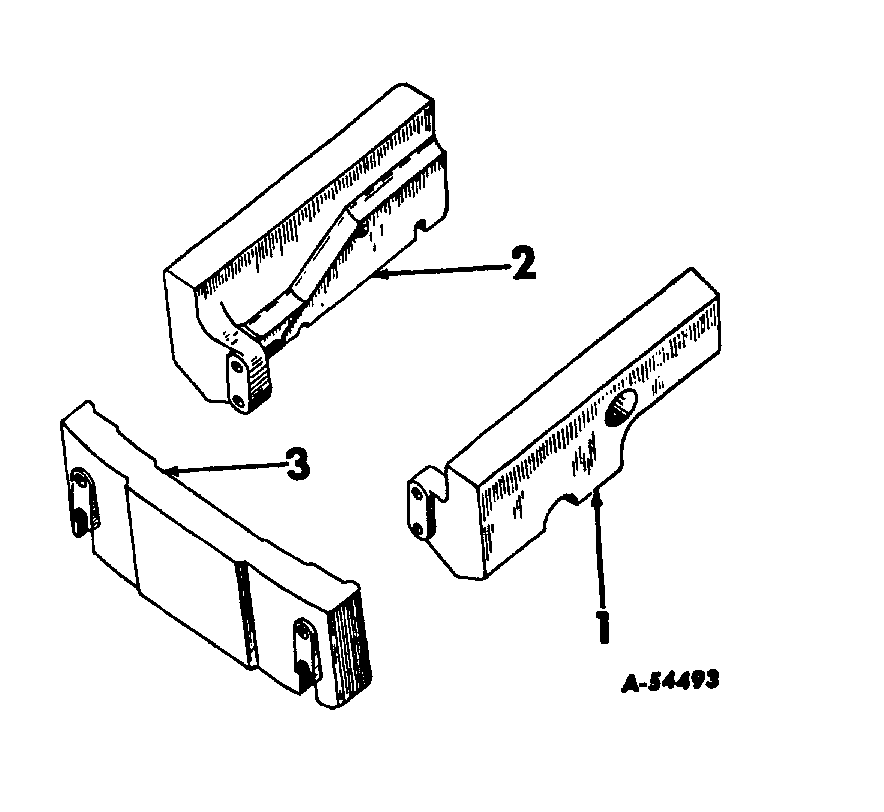

Запчасти Case IH 2444 (M-07[01]) - SEAT, OPERATORS PLATFORM AND MISC., FRONT BOLSTER AND FRONT END WEIGHTS (10) - OPERATORS PLATFORM

1

371389R3

SPARE PART L.H., front bolster

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

SCREW cap, hex head, 3/4"-10 x 2-3/4"

3шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16" x 1-1/2" x .134"

3шт.

2

371390R3

SPARE PART R.H., front bolster

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

SCREW cap, hex head, 3/4"-10 x 2-3/4"

3шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16" x 1-1/2" x .134"

3шт.

3

371202R2

WEIGHT front end, first set

1шт.

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

cap, hex head, 3/4"-10 x 4"

4шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16" x 1-1/2" x .134"

4шт.

3

371202R2

WEIGHT front end, second set

1шт.

18752R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW cap, hex head, 3/4"-10 x 6-1/2"

4шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16" x 1-1/2" x .134"

4шт.

3

371202R2

WEIGHT front end, third set

1шт.

17245R1

SPARE PART SCREW cap, hex head, 3/4"-10 x 9"

4шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16" x 1-1/2" x .134"

4шт.
