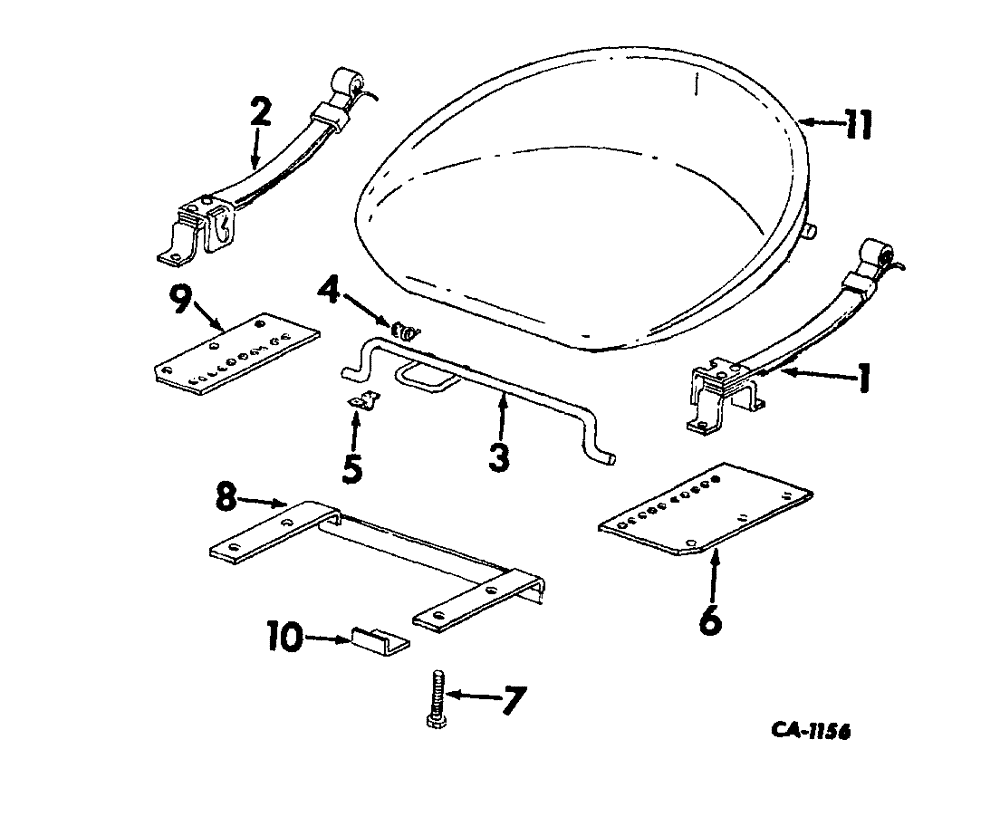

Запчасти Case IH 2444 (M-05) - SEAT, OPERATORS PLATFORM AND MISC., DELUXE PAN SEAT (10) - OPERATORS PLATFORM

1

50586DB

SPARE PART ASSY., L.H. seat

1шт.

104102

SPARE PART round head, 5/16" x 1-3/8"

2шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW cap, hex head, 3/8"-24 x 7/8"

2шт.

103321

LOCK WASHER,3/8"

4шт.

103026

NUT,3/8"-24, G5

2шт.

104167

RIVET,Csk, 1/4" x 13/16"

csk. head, 1/4" x 3/4", 90°

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

2шт.

2

50587DB

SPARE PART ASSY., R.H. seat

1шт.

104102

SPARE PART round head, 5/16" x 1-3/8"

2шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW cap, hex head, 3/8"-24 x 7/8"

2шт.

103321

LOCK WASHER,3/8"

4шт.

103026

NUT,3/8"-24, G5

2шт.

104167

RIVET,Csk, 1/4" x 13/16"

csk. head, 1/4" x 3/4", 90°

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

2шт.

3

69752DA

SPARE PART ASSY. seat lock

1шт.

4

50582D

SPARE PART rod, seat lock

1шт.

5

50581D

CLAMP

CLIP rod, seat lock

2шт.

6

402140R1

SPARE PART PLATE, L.H. mounting, seat

1шт.

7

50583D

SPARE PART adjustable, seat spring

2шт.

103026

NUT,3/8"-24, G5

4шт.

8

402208R1

SPARE PART ASSY. mounting, seat

1шт.

9

402141R1

SPARE PART PLATE, R.H. mounting, seat

1шт.

10

391937R1

SPARE PART BRACKET seat safety

1шт.

11

354157R93

SEAT

ASSY. deluxe pan

1шт.

103385

COTTER PIN,1/8" x 1"

2шт.

350515R1

WASHER

plain, 21/32" x 1" x 16 gauge

2шт.

425-115

NUT,5/16"-24, G5

4шт.
