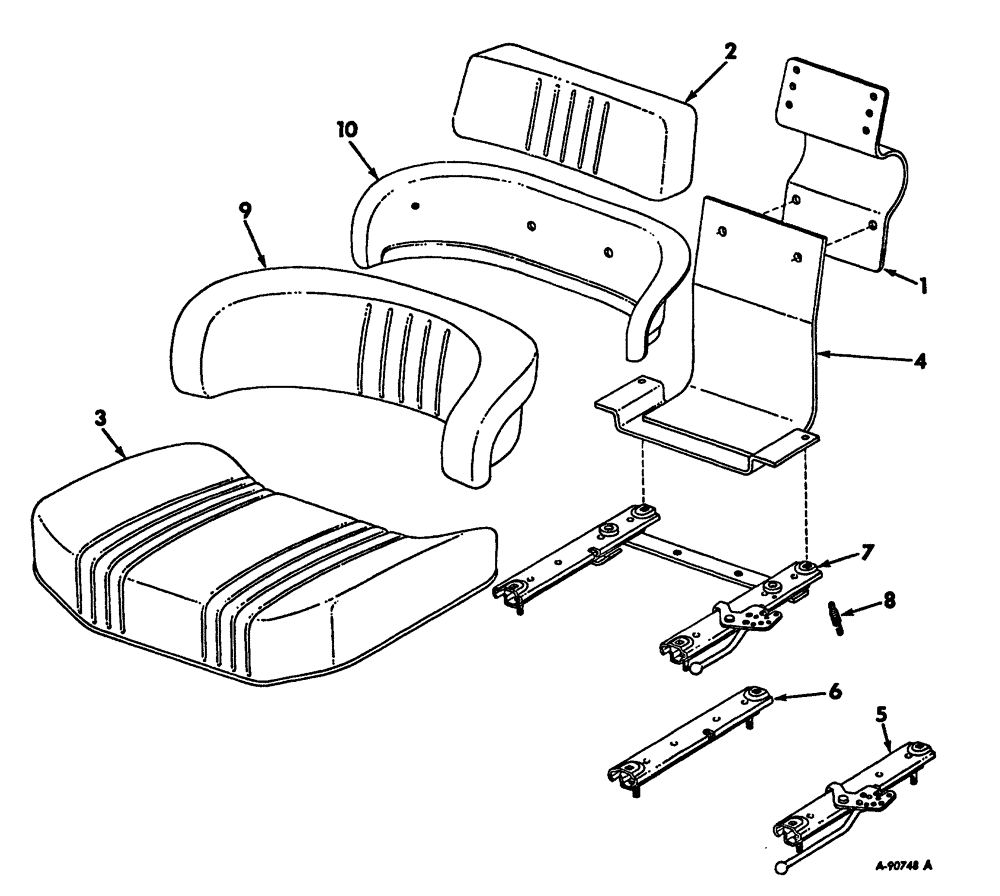

Запчасти Case IH 2444 (M-04) - SEAT, OPERATORS PLATFORM AND MISC., SEAT, DELUXE (10) - OPERATORS PLATFORM

1

405068R1

SPARE PART back, upper

1шт.

80681

LOCK WASHER,5/16"

2шт.

19286R1

SCREW cap, hex head, CDP, 5/16"-18 x 3/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

623066R1

SPARE PART SCREW cap, hex head, CDP, 3/8"-16 x 1"

2шт.

2

405067R1

CUSHION

ASSY. back, upper

1шт.

161895

SCREW,Cross Pan Hd, #10 - 12 x 1/2"

tap, cross recess pan head, 10-12 x 1/2" C-Z

4шт.

3

405060R1

CUSHION

ASSY. seat

1шт.

4

406451R1

SPARE PART ASSY. seat

1шт.

4

405061R1

SPARE PART ASSY. seat

1шт.

120393

BEARING WASHER,5/16", SAE

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

405062R1

ADJUSTER

HEIGHT L.H. seat, with handle

1шт.

6

405063R1

ADJUSTER

HEIGHT ASSY., R.H. seat

1шт.

7

406452R1

SPARE PART ASSY. slide

1шт.

80681

LOCK WASHER,5/16"

4шт.

19286R1

SCREW cap, hex head, CDP, 5/16"-18 x 3/4"

4шт.

8

398176R1

SPRING

latch

1шт.

9

405065R1

CUSHION

ASSY. back

1шт.

10

405066R1

SPARE PART back, outer

1шт.

120392

WASHER,1/4", SAE

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

155348

YOKE

SCREW machine, cross recess round head, 1/4"-20 x 3/4" C-Z

2шт.
