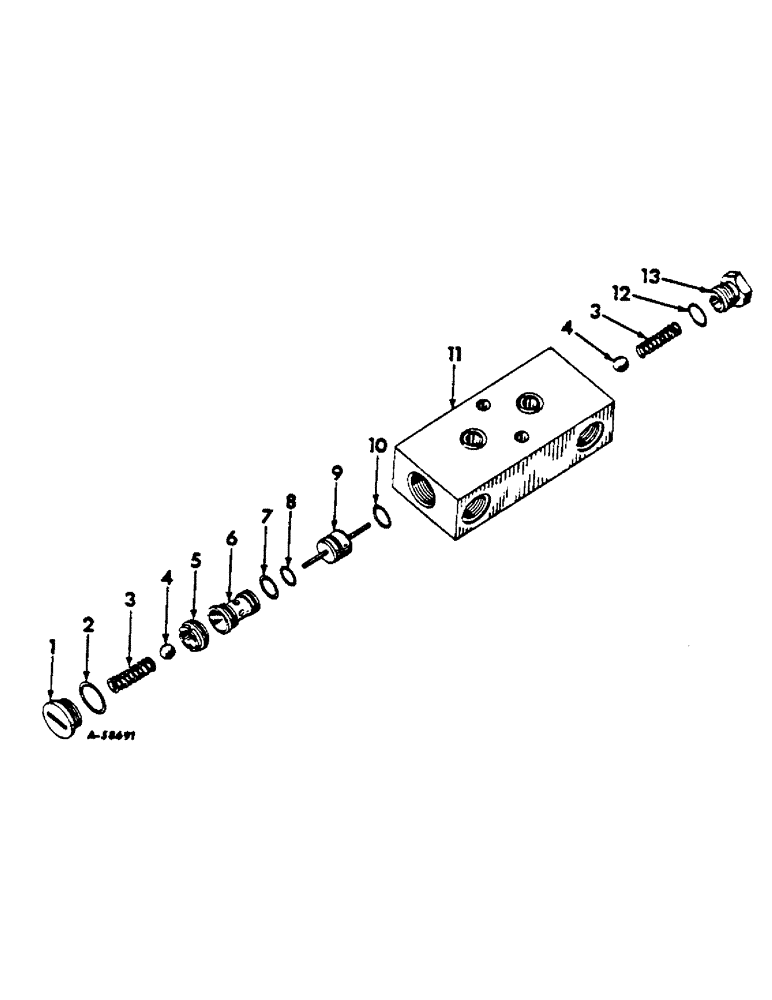

Запчасти Case IH 2444 (F-23) - HYDRAULICS SYSTEM, DOUBLE-ACTING CHECK VALVE (07) - HYDRAULIC SYSTEM

374083R92

VALVE

ASSY. check

1шт.

1

374088R1

PLUG

check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

plug, check valve, 59/64" x 1-1/16" x 7/64"

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

retainer, ball, check valve

1шт.

6

374087R21

RETAINER

ASSY. ball, check valve

1шт.

7

384943R1

O-RING,0.739" ID x 0.07" Width

Ball Retainer, Large

1шт.

8

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

ball retainer, small, 11/16" x 13/16" x 1/16"

1шт.

9

374085R11

PISTON

ASSY. actuator, check valve

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

piston, 5/8" x 13/16" x 3/32"

1шт.

11

NSS

NOT SOLD SEPARAT

BLOCK ASSY. check valve, order check valve 374083R92

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug, check valve, 3/4" x 15/16" x 3/32"

1шт.

13

374089R1

PLUG

check valve

1шт.
