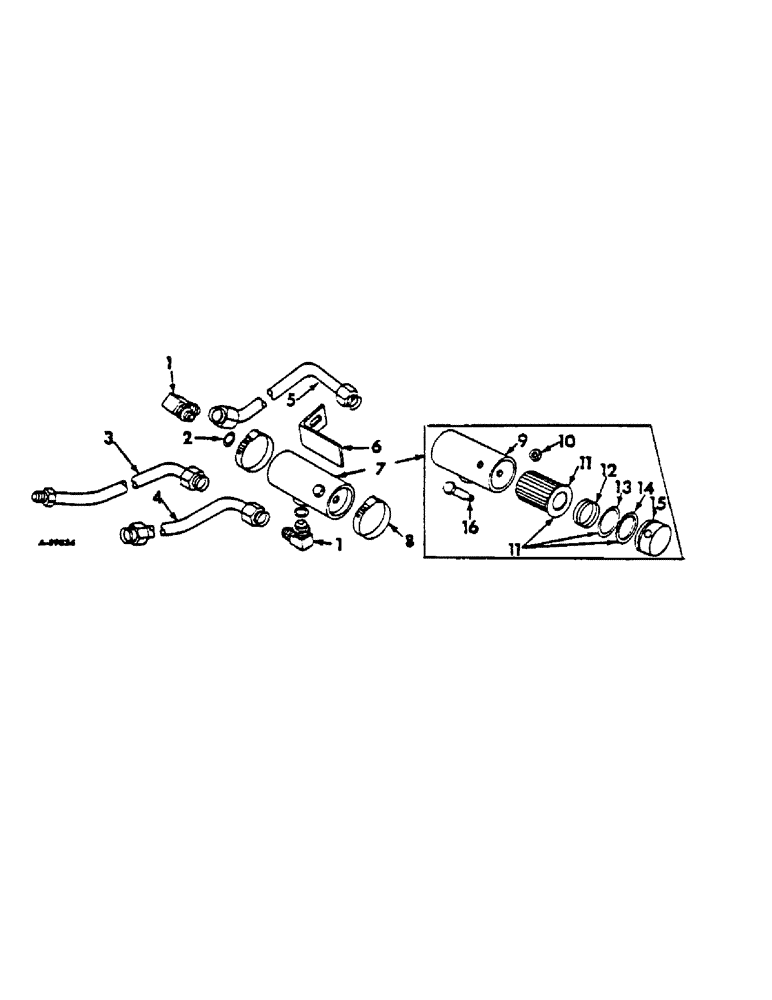

Запчасти Case IH 2444 (F-18) - HYDRAULICS SYSTEM, HYDRAULIC FILTER, TRACTORS WITHOUT AUXILIARY VALVES (07) - HYDRAULIC SYSTEM

1

391960R91

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Union Elbow connector, adj. filter, 90°

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

tube, 1/2" OD

2шт.

3

391957R11

SPARE PART ASSY., Serial Range: hose-filter

1шт.

4

391962R11

TUBE

PIPE ASSY. flow, Serial Range: divider-filter

1шт.

5

392015R11

SPARE PART ASSY. filter to hydraulic lift valve

1шт.

6

391959R1

SPARE PART BRACKET support, hydraulic filter

1шт.

179842

SPACER

cap, hex head, 3/8"-16 x 1-3/8"

2шт.

7

391958R91

SPARE PART ASSY. hydraulic

1шт.

8

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

adjustable, worm-type

2шт.

9

NSS

NOT SOLD SEPARAT

BARREL ASSY. filter

1шт.

10

18253R1

LOCK NUT,3/8"-16, GB

bolt, filter

1шт.

11

392532R91

KIT

PACKAGE service, filter and O-ring

1шт.

12

392528R1

SPRING filter element

1шт.

13

343904R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 6, 90 Duro

1-13/16" x 2-3/32"

1шт.

14

392533R1

SPARE PART back-up

1шт.

15

392530R1

SPARE PART end, removable

1шт.

16

392531R1

SPARE PART filter

1шт.
