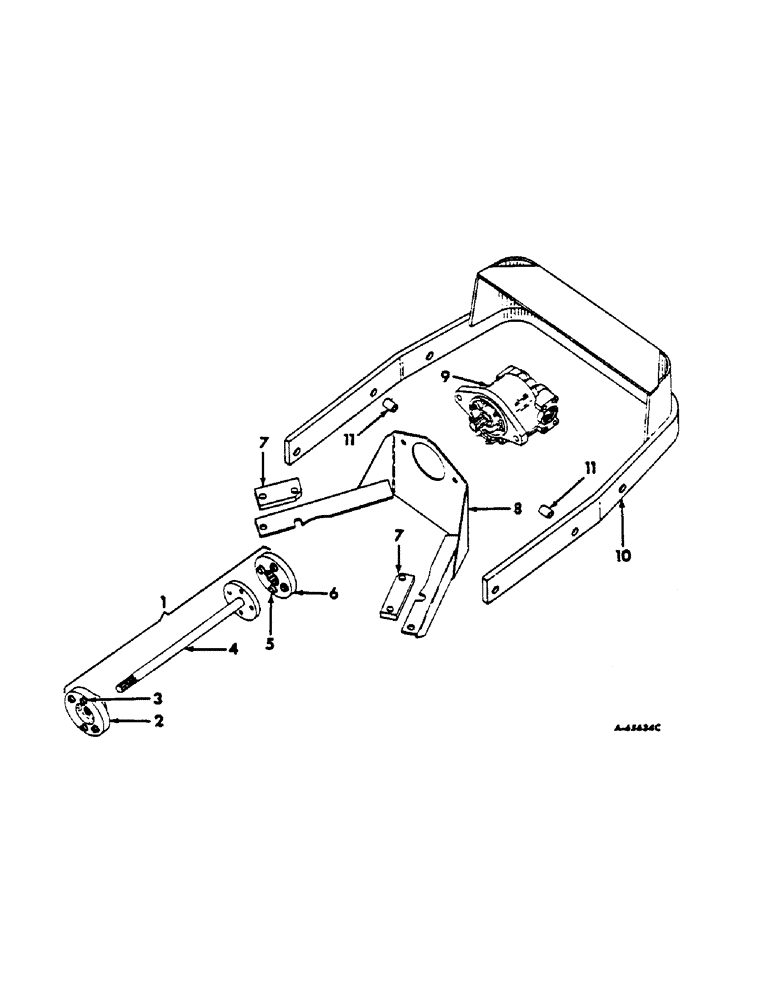

Запчасти Case IH 2444 (F-16) - HYDRAULICS SYSTEM, FRONT POWER TAKE-OFF, INTERNATIONAL TRACTORS (07) - HYDRAULIC SYSTEM

1

488163R91

SHAFT

COUPLING ASSY. pump, PTO driven, front, gasoline engine tractors, used with splined pump shaft

1шт.

1

488165R91

COUPLING

ASSY. pump, PTO driven, front, diesel engine tractors, used with splined pump shaft

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW cap, hex head, 3/8"-16 x 1-1/2" C-Z

4шт.

120394

WASHER,3/8", SAE

13/32" x 13/16" x .065" gauge C-Z

4шт.

2

378870R91

HUB

ASSY. splined

1шт.

3

380809R1

BLOCK

BUSHING ASSY.

4шт.

4

488164R1

SHAFT ASSY.

FLANGE, gasoline engine tractors, used with splined pump shaft

1шт.

4

488166R1

SHAFT

FLANGE ASSY., diesel engine tractors, used with splined pump shaft

1шт.

5

380810R1

BLOCK

BUSHING ASSY.

4шт.

6

488161R91

HUB

ASSY., used with splined pump shaft

1шт.

442825

NUT lock, hex, 5/16"-18 C-Z

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

cap, hex head, 5/16"-18 x 1-1/2" C-Z

4шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8"-16 x 3/4" x .065" gauge C-Z

4шт.

7

379340R1

SPARE PART bracket, pump, tractors without heavy duty grille

2шт.

8

379337R11

SPARE PART ASSY. pump, PTO driven, front

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW cap, hex head, 1/2"-13 x 1-3/4" C-Z

4шт.

446221

WASHER,7/16"

WASHER, 1/2" x 1-1/8" x .083" gauge C-Z

2шт.

120384

WASHER,1/2"

2шт.

9

381151R91

PUMP

ASSY., PTO driven, front, Cessna, has splined shaft, for components see list of parts under details of front PTO pump, optional with 531271R91

1шт.

9

531271R91

PUMP

ASSY., PTO driven, front, Thompson, Replaces: 383514R92, has splined shaft, for components see list of parts under details of front PTO pump, optional with 381151R91

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW cap, hex head, 1/2"-13 x 2" C-Z

2шт.

120384

WASHER,1/2"

2шт.

10

469338R91

SPARE PART ASSY. pump

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW cap, hex head, 3/4"-10 x 2-3/4" C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

495-11081

WASHER,3/4", SAE

13/16" x 1-1/2" x .108" C-Z

2шт.

11

PO15162

SPARE PART pump guard

2шт.
