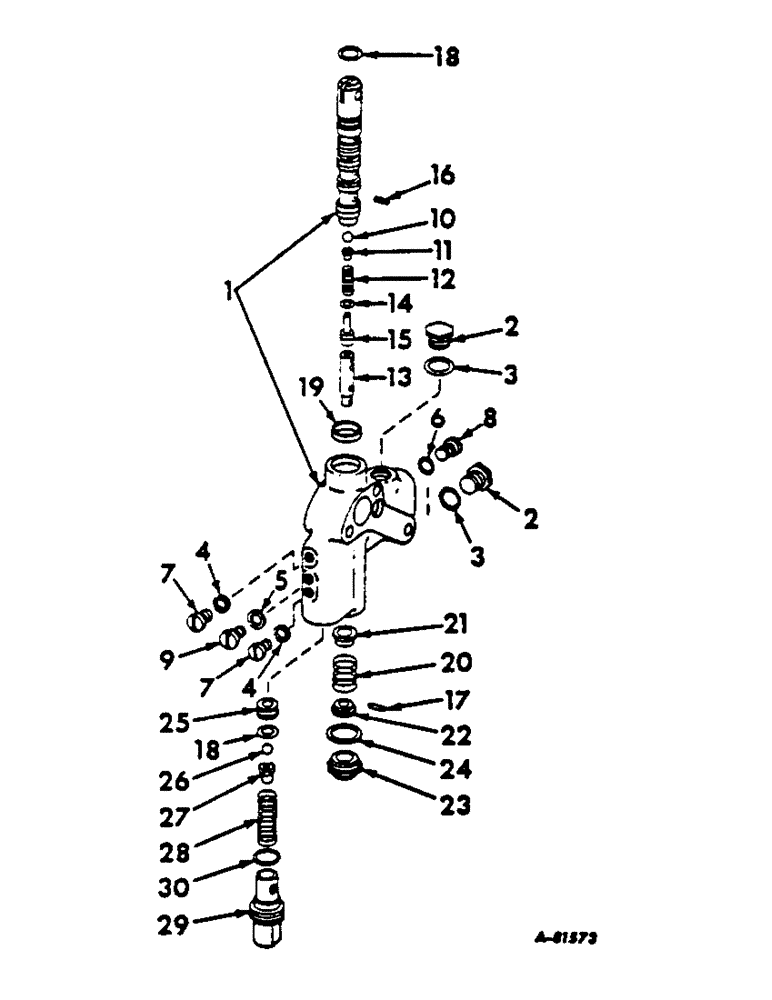

Запчасти Case IH 2444 (F-15) - HYDRAULICS SYSTEM, DOUBLE ACTING AUXILIARY VALVE (07) - HYDRAULIC SYSTEM

3069020R92

CONTROL VALVE

VALVE ASSY. double acting

1шт.

1

3069042R91

BODY

SPOOL ASSY., matched set

1шт.

2

9410360

PLUG

O-ring boss, straight thread, 7/8"-14

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" x 5/16" x 3/32"

2шт.

4

751876R1

SEALING WASHER

WASHER plug

2шт.

5

709803R1

SEALING WASHER

WASHER plug

1шт.

6

3043969R91

WASHER

plug

1шт.

7

140758

PLUG fil. head, 5/16"

2шт.

8

110832

SPACER

PLUG fil. head, 7/16"

1шт.

9

437310

PLUG fil. head, 3/8"

1шт.

10

16011R1

BALL

BALL steel, cr.pltd., 11/32" diameter

1шт.

11

3061046R1

SEAT

SPARE PART RIDER ball

1шт.

3072917R1

BALL,11/32" Dia

rider

2шт.

12

3061047R1

SPRING

1шт.

13

3069043R1

END

SPOOL

1шт.

14

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16" x 7/16" x 1/16"

1шт.

15

3069044R1

SEAT

spring

1шт.

16

20948R1

PIN,1/8" x 5/8", Coiled

1/8" x 5/8", Coiled

1шт.

17

21007R1

PIN,1/8" x 1/2", Coiled

1/8" x 1/2", Coiled

1шт.

18

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16" x 3/4" x 3/32"

2шт.

19

3061049R1

SEAL

oil

1шт.

20

3064800R1

SPRING

return

1шт.

21

3069045R1

SEAT

spring, top

1шт.

22

3069046R1

SEAT

spring, lower

1шт.

23

3061051R1

PLUG

1шт.

24

3063547R1

WASHER

fiber

1шт.

25

3069047R1

SEAT

valve, relief

1шт.

26

16012R1

BALL

steel, cr.pltd., 3/8" diameter

1шт.

27

751556R2

SEAT

RIDER ball

1шт.

28

751557R1

SPRING

valve, relief

1шт.

29

3069048R1

HOUSING

valve, relief

1шт.

30

706071R1

RING, SNAP

RING SNAP O, 1" x 13/16" x 3/32"

1шт.
