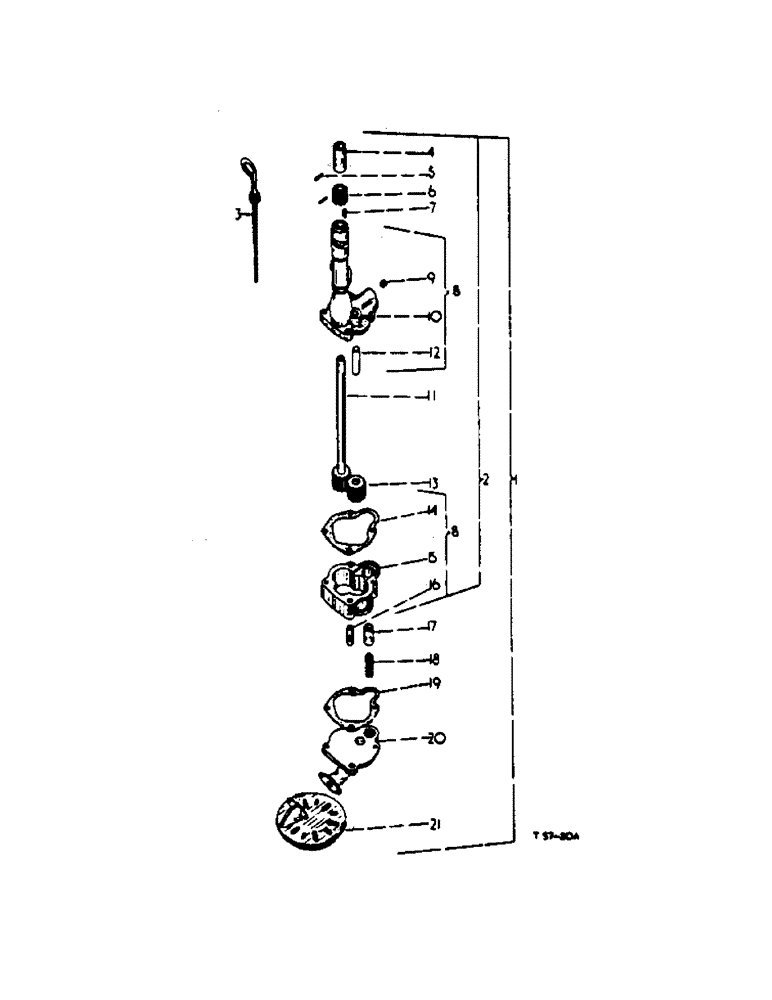

Запчасти Case IH 2300 (1-15) - DIESEL ENGINE, LUBRICATION SYSTEM (01) - ENGINE

1

3064060R91

PUMP

oil assy., comprising: (1) ball 751830R2, (1) body 3043132R93, (2) bolt 179826, (2) bolt 179828, (2) bolt 179791, (1) cover 3064061R1, (X) gasket 711558R1, (2) nut 102634, (1) screen 3064062R91, (1) spring 751829R1, (4) washer 115548

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex hd. 3/8" x 1-1/8"

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

2

3043132R93

BODY

oil pump, assy., comprising: (1) body 3042570R92, (1) coupling 3042479R1, (1) gear 3063757R1, (1) key 103905, (1) pinion 704107R1, (2) 932204R1, (X) shaft 3042572R91

1шт.

3

706977R91

DIPSTICK

GAUGE, oil level, cpte.

1шт.

4

3042479R1

COUPLING, BREAK AWAY

COUPLING, hourmeter drive

1шт.

5

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, roll (3 mm dia. x 20 mm long)

2шт.

6

704107R1

GEAR

PINION, oil pump drive

1шт.

7

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, woodruff

1шт.

8

3042570R92

CASE

BODY, oil pump, cpte., comprising: (1) body (NSS), (1) case (NSS), (1) gasket 706628R1, (2) pin 932205R1, (1) plug 103883, (1) shaft (NSS)

1шт.

9

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

10

NSS

NOT SOLD SEPARAT

BODY, oil pump

1шт.

11

3042572R91

SHAFT

drive, oil pump

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT, idler, oil pump

1шт.

13

3063757R1

GEAR

idler, oil pump body

1шт.

14

706628R1

GASKET

oil pump body

1шт.

15

NSS

NOT SOLD SEPARAT

CASE, oil pump gear

1шт.

16

932205R1

LOCK PIN,M10 x 40, Slotted

PIN, roll (10 mm dia x 40 mm long)

2шт.

17

751830R2

VALVE

BALL, oil pressure regulating valve

1шт.

18

751829R1

SPRING

oil pressure regulating valve

1шт.

19

711558R1

GASKET

oil pump gear

1шт.

20

3064061R1

COVER

oil pump

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16"

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

21

3064062R91

FILTER SCREEN

SCREEN, oil pump, assy.

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
