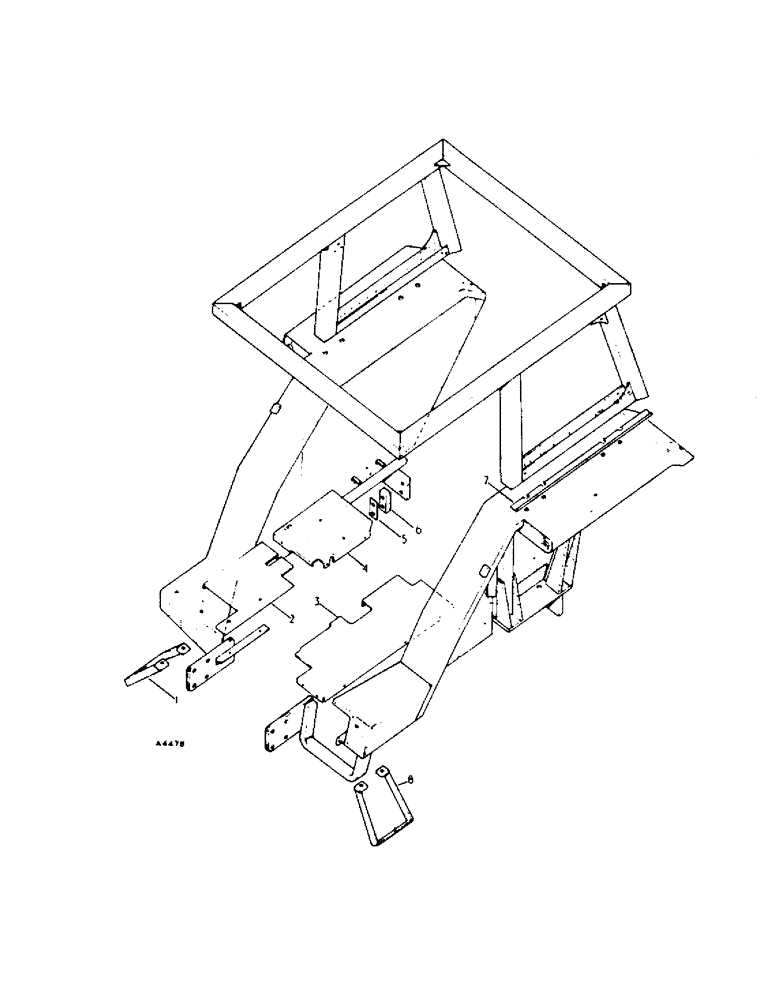

Запчасти Case IH 2300 (6-75) - ATTACHMENTS, SAFETY FRAME Attachments

3113261R92

FRAME

CPTE., safety

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8" x 1-1/2" hex hd.

8шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4" x 2-3/4" hex hd.

4шт.

3070973R1

BOLT

5/8" x 8-1/2" 'T' hd.

4шт.

102639

NUT,5/8"-11, G5

4шт.

280954

NUT,3/4"-10, G5

4шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5 to - FIGURE DOESN'T EX

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

.812" x 1.50" x 1.08"

4шт.

1

3112896R1

STEP

FOOTSTEP, assy. R.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

3112898R1

PLATE

FOOTPLATE, R.H. front

1шт.

19417R1

BOLT

3/8" x 1" sq. neck carriage

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8" plain

6шт.

3

3112897R1

PLATE

FOOTPLATE, CPTE. L.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8" plain

6шт.

4

3112899R1

PLATE

FOOTPLATE, R.H. CPTE. rear

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8" plain

4шт.

5

3114165R1

SHIM

(As required)

2шт.

6

3112968R2

BAR

axle spacer

2шт.

7

3112388R1

SEAL

SEAL, wing piping

2шт.

8

3112895R1

STEP

FOOTSTEP, assy. L.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

192413

DRIVE SCREW,U, Rnd Hd, Metallic, #2 x 1/4"

No. 4 x 1/4" rd. hd. drive (Safety frame approval plate)

2шт.

3112888R1

PLUG

blanking

2шт.

NSS

NOT SOLD SEPARAT

BRACKET, cross shaft CPTE. (See overnor controls)

1шт.

NSS

NOT SOLD SEPARAT

ROD, hand brake connecting (See Handbrake Linkage - Chassis)

1шт.

NSS

NOT SOLD SEPARAT

PEDAL, CPTE. diff. lock (See Differential Lock - Chassis)

1шт.

NSS

NOT SOLD SEPARAT

PACKAGE, safety frame conversion (For machines fitted w/power steering) (Factory application), consists of:

1шт.

3115228R1

PLATE, CPTE., floor L.H.

1шт.
