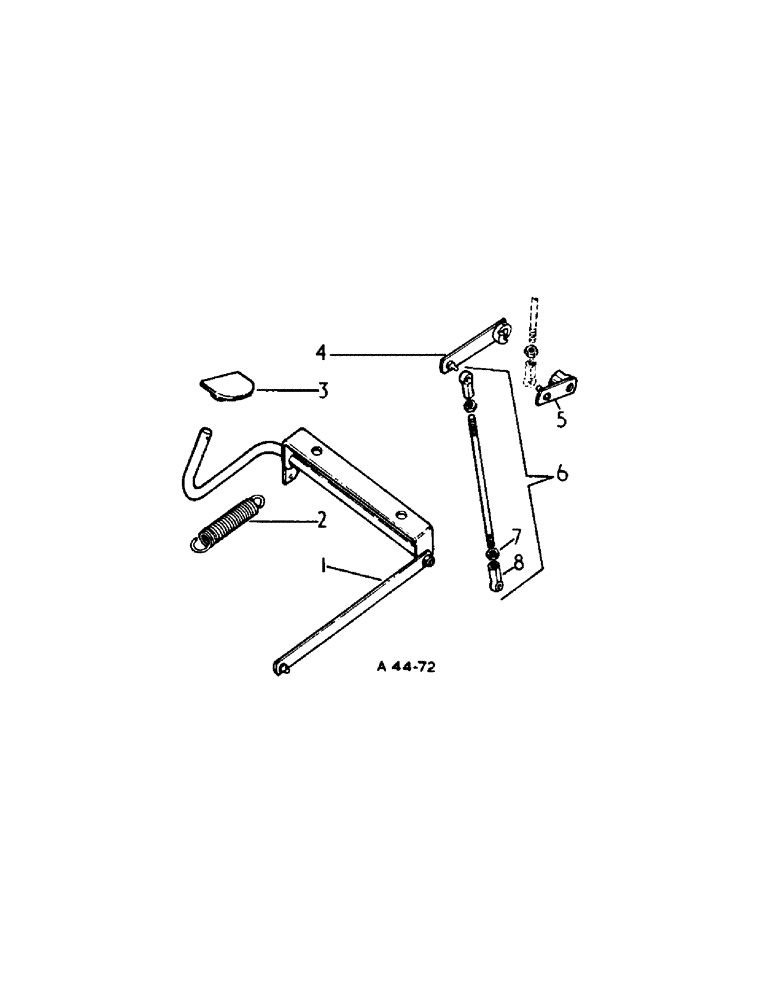

Запчасти Case IH 2300 (6-74) - ATTACHMENTS, FOOT ACCELERATOR ATTACHMENT Attachments

3114186R91

ATTACHMENT, foot accelerator (Diesel) (USA & CANADA)

1шт.

3114187R91

ATTACHMENT, foot accelerator (Petrol) (USA & CANADA)

1шт.

1

3112052R1

BRACKET

cross shaft CPTE.

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16" hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

304756R1

SPRING, pedal return

1шт.

3

3108779R1

PEDAL

foot accelerator CPTE.

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

4

3112094R1

LEVER

CPTE., foot accelerator

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

5

3112091R1

LEVER

CPTE., cross shaft driving

1шт.

6

3112050R91

ROD

CPTE., control center

1шт.

7

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

8

3068537R1

TRUNNION

END, control

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

hex hd. 3/8" x 1-1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

(Foot accelerator stop) 3/8"-16, G5

2шт.
