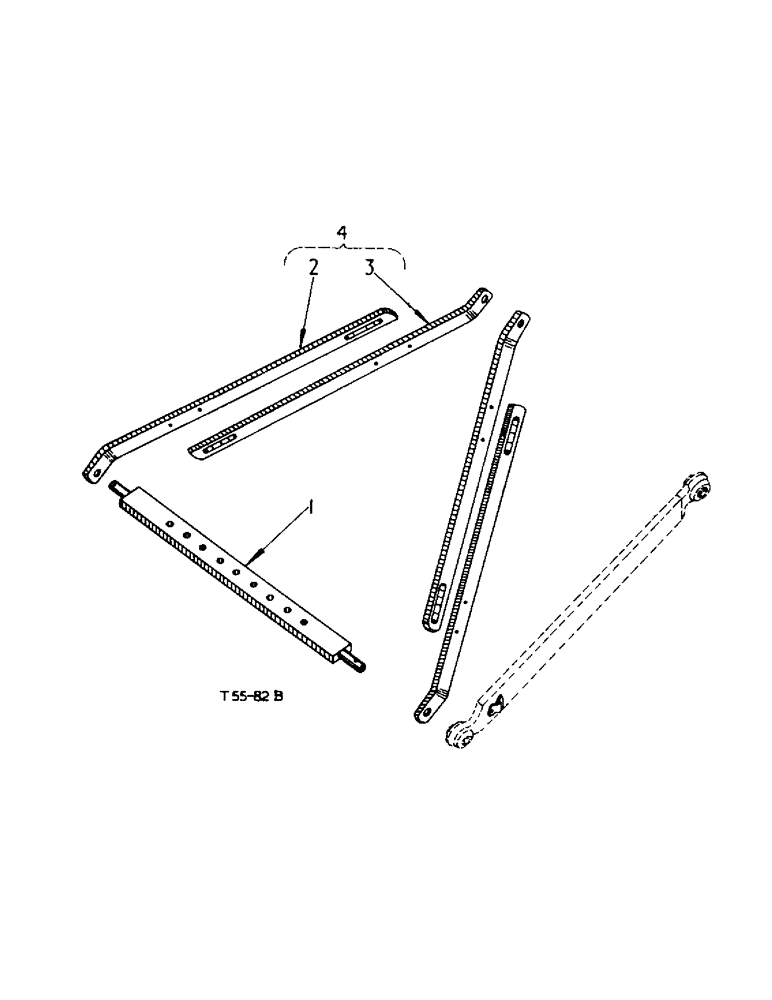

Запчасти Case IH 2300 (6-02) - ATTACHMENTS, THREE POINT LINKAGE DRAWBAR ATTACHMENT Attachments

3049064R91

ATTACHMENT, three point linkage drawbar

1шт.

Used only with hydraulic lift attachment, Vary Touch

1шт.

1

751764R1

BAR

DRAWBAR

1шт.

2

751765R1

STRUT

lower half

2шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

1/2" x 1-3/8" hex hd.

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/16" x .095" plain

2шт.

3

751766R1

STRUT

upper half

2шт.

4

751769R91

STRUT

CPTE. comprising: (2) bolt 179884, (2) nut 102637, (1) strut 751766R1, (1) strut 751765R1, (2) washer 103323, (2) washer 103343

2шт.

704187R1

LOCKING RING

RING, implement cotter, clip

2шт.

700531R1

NO LONGER SERVICED

COTTER, implement

2шт.

517758R91

SPLIT PIN/SAFETY PIN

COTTER, assy., Opt.

2шт.

704212R91

COTTER PIN

COTTER, w/cotter 700531R1 and ring 704187R1 CPTE. implement), Opt.

2шт.
