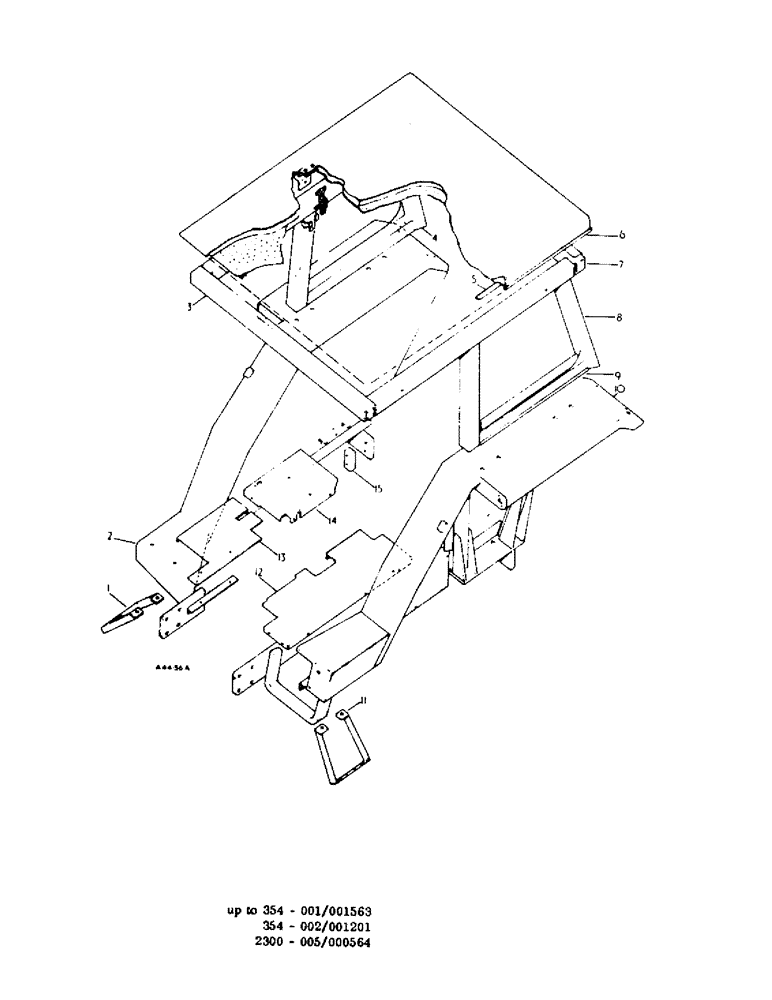

Запчасти Case IH 2300 (6-70) - ATTACHMENTS, SAFETY FRAME, UP TO 351-001/001563, 354-002/001201, 2300-005-000564 Attachments

3113261R91

FRAME

CPTE. safety (000721/up) (Order frame 3113261R92)

1шт.

Including 707 to 712

1шт.

3112887R91

FRAME, CPTE. safety, Serial Range: (up-/000720)

1шт.

Excluding 707 to 712

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

hex hd. 5/8" x 1-1/2"

8шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

hex hd. 3/4" x 2-3/4"

4шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5 to - FIGURE DOESN'T EX

1шт.

3070973R1

BOLT

'T' hd. 5/8" x 8-1/2"

1шт.

102639

NUT,5/8"-11, G5

to - FIGURE DOESN'T EX

4шт.

3113260R91

FRAME, assy. safety (000721/up) (Order frame 3113261R92)

1шт.

Including 707 to 712

1шт.

3112892R91

FRAME

assy. safety, Serial Range: (up-/000720)

1шт.

Excluding 707 to 712

1шт.

1

3112896R1

STEP

FOOTSTEP ASSY, R.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

3112894R1

FENDER

ASSY, CPTE., R.H. (Order 3113261R92)

1шт.

3

3113256R1

FRAME

ASSY, top front (000721/up)

1шт.

Including 707 to 712

1шт.

3

3112384R1

FRAME

ASSY, top front, Serial Range: (up-/000720)

1шт.

Excluding 707 to 712

1шт.

4

3113255R1

FRAME

ASSY., side R.H. (000721/ up)

1шт.

Including 707 to 712

1шт.

4

3112387R1

FRAME

ASSY., side R.H. (up to /000720) (Order frame 3113255R1)

1шт.

Excluding 707 to 712

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, hex hd. 1/2" x 3"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

495-11053

WASHER,1/2", SAE

plain

4шт.

3112947R1

WASHER

packing

2шт.

5

3112490R1

STRIP

SEAL, roof

1шт.

6

3113246R91

ROOF

ASSY (000721/up) (Order 3113575R91 w/bolt 180735, two nut 3056470R1 and two fiber washer)

1шт.

Including 707 to 712

1шт.

109084

NUT,1/4"-20, G5

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

pan hd. sltd. mach. 1/4-20 x 3/4"

4шт.

709353R1

SEAL

WASHER, Dowty sealing

4шт.

120392

WASHER,1/4", SAE

5/8" x 9/32" x 16 ga.

4шт.

110633

NUT,#10-24

6шт.

110530

SCREW, 10-24 x 3/8" long fill hd. sltd. mach

6шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

6

3112465R91

ROOF

ASSY (consists of plate 3112467R1, latch 3112491R1 and seal 3112490R1), Serial Range: (up-/000720)

1шт.

Excluding 707 to 712

1шт.

7

3113257R1

FRAME

ASSY., top rear (000721/up)

1шт.

Including 707 to 712

1шт.

7

3112385R1

FRAME

ASSY., top rear, Serial Range: (up-/000720)

1шт.

Excluding 707 to 712

1шт.

8

3113252R1

FRAME

ASSY., side L.H. (000721/up)

1шт.

Including 707 to 712

1шт.

8

3112386R1

FRAME

ASSY., side R.H. (up to /000720) (Order frame 3113252R1)

1шт.

Excluding 707 to 712

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, hex hd. 1/2" x 3"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

495-11053

WASHER,1/2", SAE

plain

4шт.

3112947R1

WASHER

packing

2шт.

9

3112388R1

SEAL

SEAL, wing piping

2шт.

10

3112893R1

FENDER

ASSY., CPTE., L.H. (Order frame 3113261R92)

1шт.

11

3112895R1

STEP

FOOTSTEP ASSY, L.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex hd. 3/8" x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

3112897R1

PLATE

FOOTPLATE, CPTE., L.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8" plain

6шт.

13

3112898R1

PLATE

FOOTPLATE, R.H. front

1шт.

19417R1

BOLT

3/8" x 1" sq. neck carriage

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8" plain

6шт.

14

3112899R1

PLATE

FOOTPLATE, R.H. CPTE. rear

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8" x 1" hex hd.

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8" plain

4шт.

15

3112968R2

BAR

axle spacer

2шт.

3114165R1

SHIM

PARTS NOT ILLUSTRATED

2шт.

NSS

NOT SOLD SEPARAT

BRACKET, cross shaft CPTE. (See governor controls), PARTS NOT ILLUSTRATED

1шт.

3112888R1

PLUG

blanking, PARTS NOT ILLUSTRATED

2шт.

3113421R91

KIT

PACKAGE, cab roof field (export) (For updating machines fitted w/roof 3112465R91), PARTS NOT ILLUSTRATED

1шт.

3112491R1

LATCH

(up to /000720), PARTS NOT ILLUSTRATED

2шт.

Excluding 707 to 712

1шт.

3112467R1

PLATE, edging (up to /000720), PARTS NOT ILLUSTRATED

1шт.

Excluding 707 to 712

1шт.

NSS

NOT SOLD SEPARAT

ROD, handbrake connecting (See handbrake linkage chassis), PARTS NOT ILLUSTRATED

1шт.
