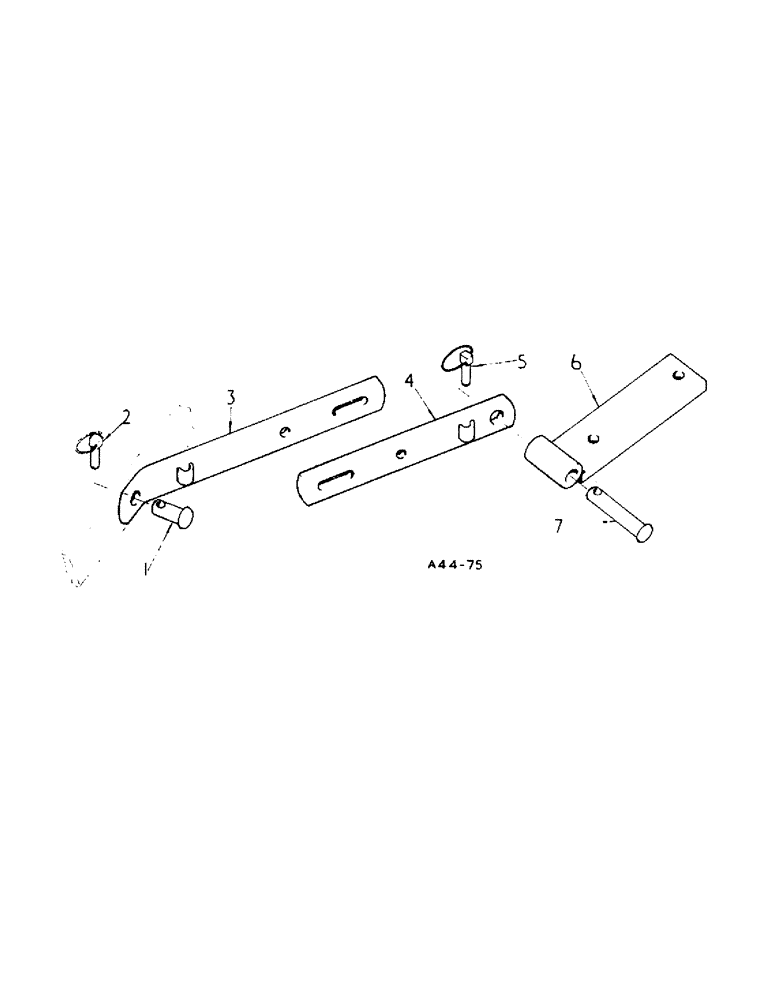

Запчасти Case IH 2300 (6-69) - ATTACHMENTS, ADJUSTABLE CHECK LINK ATTACHMENT, U.S.A. AND CANADIAN MARKET Attachments

3070382R91

ATTACHMENT, adjustable check link

1шт.

1

707072R1

PIN

check link attaching

1шт.

2

704212R91

COTTER PIN

COTTER, implement CPTE.

1шт.

704187R1

LOCKING RING

RING

1шт.

700531R1

NO LONGER SERVICED

COTTER

1шт.

3

707069R12

ADJUSTER

check link outer CPTE.

2шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

hex hd. 1/2" x 1-1/2"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/6" x .095"

4шт.

4

707068R12

ADJUSTER

check link inner CPTE.

2шт.

5

704212R91

COTTER PIN

COTTER, implement CPTE.

1шт.

704187R1

LOCKING RING

RING

1шт.

700531R1

NO LONGER SERVICED

COTTER

1шт.

6

3044312R91

BRACKET

check link CPTE.

2шт.

17956R1

BOLT,Hex, 5/8" - 11 x 7 3/4"

hex hd.

4шт.

7

3044315R1

PIN

check link bracket

2шт.
