(6-55) - ATTACHMENTS, STARTER MOTOR, COLD STARTING ATTACHMENT

Запчасти Case IH 2300 (6-55) - ATTACHMENTS, STARTER MOTOR, COLD STARTING ATTACHMENT Attachments

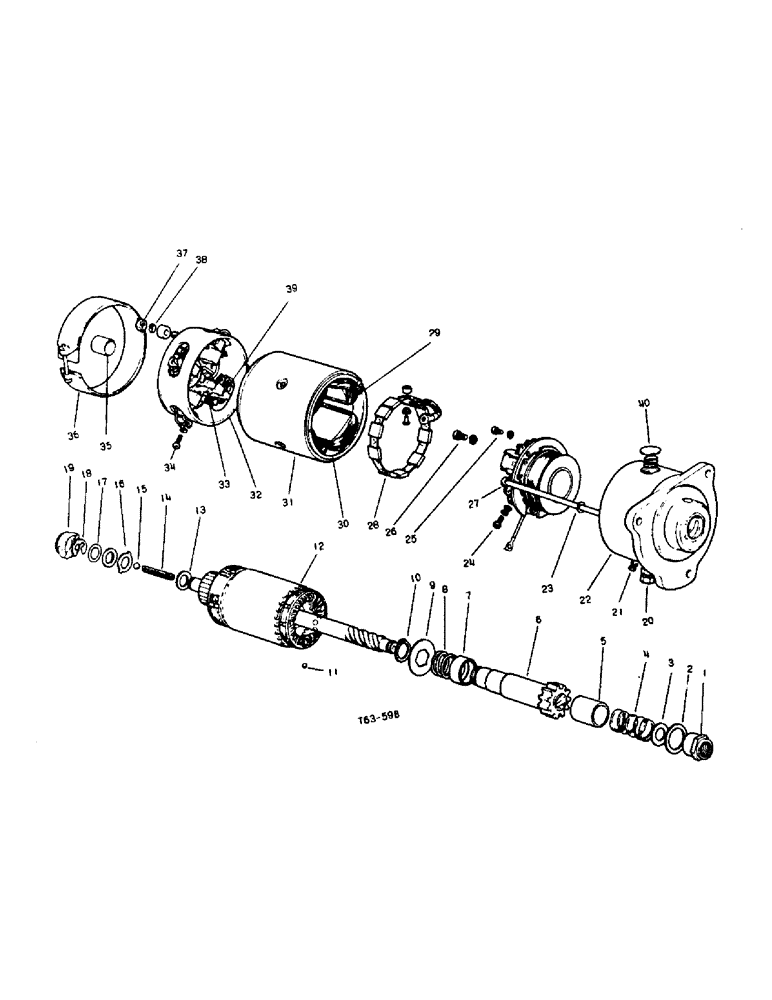

Схема запчастей Case IH 2300 - (6-55) - ATTACHMENTS, STARTER MOTOR, COLD STARTING ATTACHMENT Attachments
29
31
16
11
22
28
9
33
12
40
13
34
37
18
17
32
23
2
10
35
27
36
21
20
8
25
39
38
1
4
14
24
15
30
3
26
6
19
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3066553R92

STARTER MOTOR

MOTOR, starter assy. (CA45F12-Y51)

1шт.

1

3067832R1

NUT

pinion stop

1шт.

2

3070428R1

THRUST WASHER

thrust

1шт.

3

3070427R1

WASHER

shim

1шт.

4

3067831R1

SPRING

pinion

1шт.

5

3067830R1

COVER

spring

1шт.

6

3112476R1

GEAR

PINION

1шт.

7

3112475R1

COLLAR

locking

1шт.

8

3112474R1

SPRING

locking

1шт.

9

3070425R1

COLLAR

trip

1шт.

10

3070424R1

RETAINER

CIRCLIP, trip collar

1шт.

11

3073423R1

BALL, steel

8шт.

12

3067828R91

ARMATURE

1шт.

13

3045168R1

WASHER

SHIM (.008)

1шт.

13

3045206R1

WASHER

SHIM, (.012)

1шт.

14

3045201R1

SPRING

shaft

1шт.

15

3045202R1

BALL

steel

1шт.

16

3045204R1

WASHER

thrust (.036)

1шт.

17

3074977R1

RETAINER

CLIP, retaining

1шт.

18

3074976R1

PAD

1шт.

19

3074975R1

CAP, end assy.

1шт.

20

3025134R91

TERMINAL, large D.E.

1шт.

3045183R1

BUSHING

BUSH, insulating

1шт.

3025136R1

INSULATOR, internal

1шт.

3045187R1

NUT

2шт.

3070421R1

RING

sealing

1шт.

3071656R1

SCREW, connecting

1шт.

3065972R1

WASHER

insulating

2шт.

3065971R1

WASHER

plain

1шт.

706423R1

WASHER

spring

2шт.

3070422R1

WASHER

spring

1шт.

3025135R1

SUPPORT

terminal large D.E.

1шт.

21

3065973R1

TERMINAL CONNECTOR

TERMINAL, small

1шт.

3112472R1

BUSHING

BUSH, insulating

1шт.

3112473R1

INSULATOR

internal

1шт.

3045193R1

NUT

2шт.

706891R1

SPRING WASHER

spring

2шт.

3112471R1

WASHER

plain

1шт.

22

3067826R91

SHIELD

D.E.

1шт.

3065986R1

PAD

felt

1шт.

3115996R1

PLUG

core oiler

1шт.

3070432R1

SEAL

dust

1шт.

3045214R1

SPRING

oiler

1шт.

3045212R91

BUSHING

BEARING

1шт.

23

3045169R1

BOLT

through

2шт.

3045170R1

SPRING WASHER

spring

2шт.

24

3064984R1

SCREW

fixed contact

2шт.

3045173R1

WASHER

plain

2шт.

706891R1

SPRING WASHER

spring

2шт.

25

3064984R1

SCREW

1шт.

3070415R1

WASHER

plain

1шт.

706891R1

SPRING WASHER

spring

1шт.

26

3070413R1

SCREW

fixing

2шт.

706891R1

SPRING WASHER

spring

2шт.

27

3070408R1

RESISTOR

1шт.

3064973R1

BUSHING

BUSH

1шт.

3070411R1

RIVET

1шт.

3047225R1

SPACER

1шт.

28

3067824R91

COIL

S, set, field

1шт.

29

3064979R1

INSULATOR

small

4шт.

29

3067825R1

INSULATOR

large

4шт.

30

706425R1

POST

SCREW, pole

4шт.

31

3067823R92

SHIELD

assy., C.E. w/bearing 3105005R1 and 4 spring 3045208R1

1шт.

32

3045208R1

SPRING

bush

4шт.

33

702557R1

SCREW

bush

4шт.

706891R1

SPRING WASHER

spring

4шт.

34

3105005R1

BUSHING

BEARING

1шт.

35

3045171R91

COVER

w/screw 3070429R1 and nut 3070430R1 assy., band

1шт.

3070429R1

SCREW

cover

1шт.

3070430R1

NUT, screw cover

1шт.

36

3045187R1

NUT

terminal

1шт.

3064972R1

SPACER

C.E. shield terminal

1шт.

37

706423R1

WASHER

terminal spring

1шт.

38

3068411R91

SET

BRUSH, set

1шт.

39

3112470R91

SWITCH

SOLENOID, assy.

1шт.

40

3112479R91

X

SET, segment

1шт.

3112480R1

SPRING

segment

1шт.

41

3070416R1

PLUG

core

2шт.
