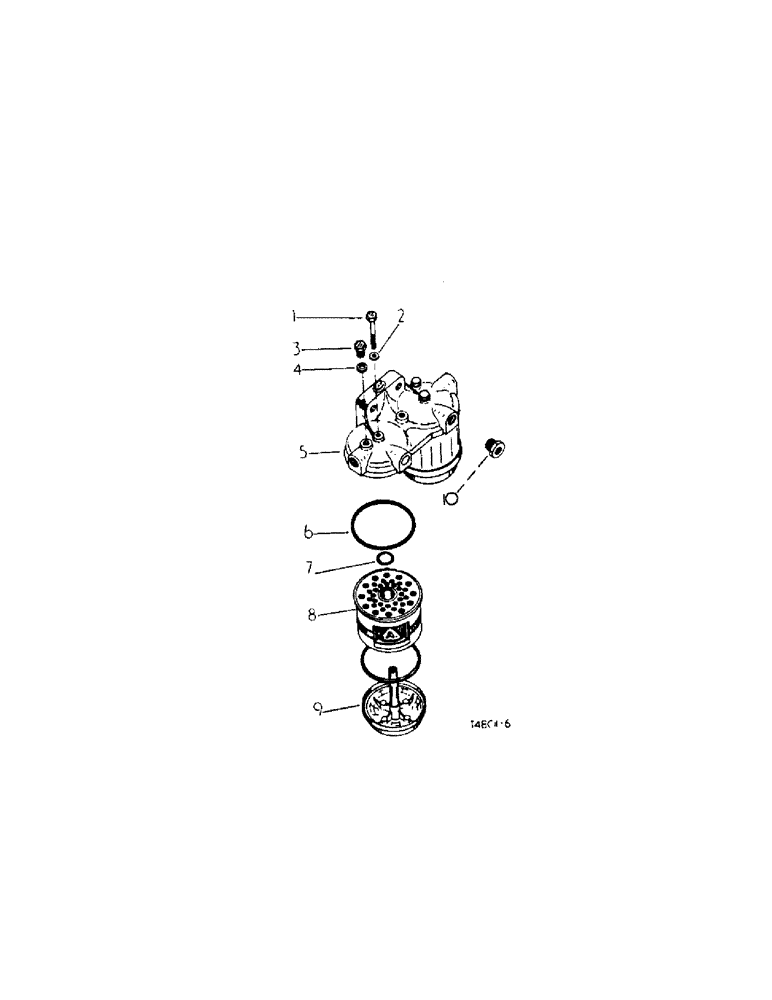

Запчасти Case IH 2300 (6-41[A]) - ATTACHMENTS, TWIN BOWL-LESS FUEL FILTER Attachments

3068142R92

FILTER, twin bowl-less fuel, comprising:

1шт.

1

3070771R2

BOLT

center

2шт.

2

3114668R1

WASHER, center bolt

2шт.

3

3070770R1

PLUG

center, small

2шт.

4

3049111R1

SEALING WASHER

vent plug

2шт.

5

3117034R91

HEAD

COVER

1шт.

6

3105001R1

SEAL

cover and base

2шт.

7

3044505R1

SEAL

RING, element seal

2шт.

8

3044506R93

FILTER, FUEL

ELEMENT, assy.

2шт.

9

3117037R91

BASE

assy.

2шт.

10

3070775R1

ADAPTER

ADAPTOR, inlet and oulet (18 mm - 14 mm) (used only w/3068142R91)

3шт.
