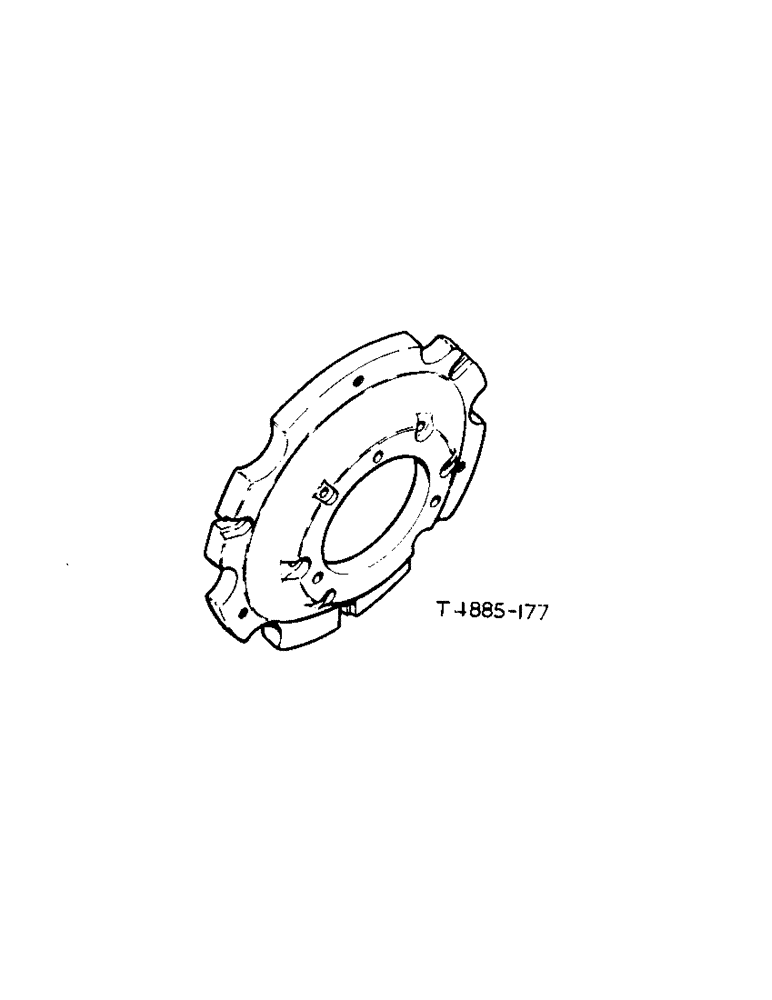

Запчасти Case IH 2300 (6-39) - ATTACHMENTS, WEIGHTS, REAR WHEEL Attachments

3069592R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3042292R91, 3068209R91

1шт.

3069692R1

WEIGHT

rear wheel

2шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

hex hd. 5/8" x 3-3/4"

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

plain, 21/32" x 1-5/16" x .074"

6шт.

3042299R1

WASHER

taper

6шт.

3069593R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3042292R91, 3068209R91

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069693R1

BOLT

rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

12шт.

3069594R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3042292R91, 3068209R91

1шт.

3069692R1

WEIGHT

rear wheel

6шт.

3069693R1

BOLT

rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

18шт.

3069595R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3042292R91, 3068209R91

1шт.

3069693R1

BOLT

WEIGHT, rear wheel

8шт.

3069693R1

BOLT

rear wheel weight

6шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8" x 2-1/2" hex hd.

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

24шт.

3069596R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3042292R91, 3068209R91

1шт.

3069692R1

WEIGHT

rear wheel

10шт.

3069693R1

BOLT

rear wheel weight

6шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8" x 2-1/2" hex hd.

12шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

30шт.

3069677R91

WHEEL WEIGHT

ATTACHMENT, rear wheel weight, comprising next 4 items

1шт.

For use with wheels 3040877R91, 3049216R91

1шт.

For use with wheels 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

2шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

hex hd. 5/8" x 3-1/4"

6шт.

704160R1

NUT

clamp

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3069678R91

WHEEL WEIGHT

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3040877R91, 3049216R91

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069694R1

BOLT,5/8" x 8"

rear wheel weight 8" long

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3069679R91

WHEEL WEIGHT

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3040877R91, 3049216R91

1шт.

3069692R1

WEIGHT

rear wheel

6шт.

3069694R1

BOLT,5/8" x 8"

rear wheel 8" long

6шт.

102639

NUT,5/8"-11, G5

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

3069680R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3040877R91, 3049216R91

1шт.

3069692R1

WEIGHT

rear wheel

8шт.

3069694R1

BOLT,5/8" x 8"

rear wheel weight 8" long

6шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8" x 2-1/2" hex hd.

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

3069681R91

ATTACHMENT, rear wheel weight, comprising:

1шт.

For use with wheels 3040877R91, 3049216R91

1шт.

3069692R1

WEIGHT

rear wheel

10шт.

3069694R1

BOLT,5/8" x 8"

rear wheel weight

6шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8" x 2-1/2" hex hd.

12шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.
