(6-32) - ATTACHMENTS, BELT PULLEY SAFETY SHIELD, BELT PULLEY AND SHIELD ATTACHMENT

Запчасти Case IH 2300 (6-32) - ATTACHMENTS, BELT PULLEY SAFETY SHIELD, BELT PULLEY AND SHIELD ATTACHMENT Attachments

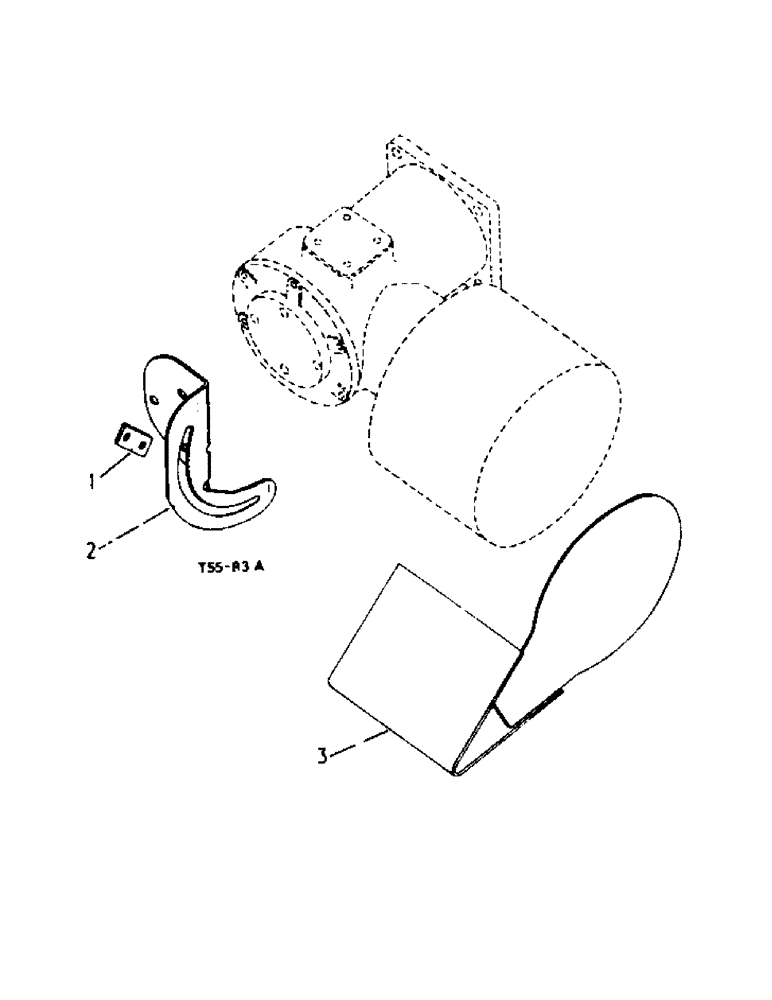

Схема запчастей Case IH 2300 - (6-32) - ATTACHMENTS, BELT PULLEY SAFETY SHIELD, BELT PULLEY AND SHIELD ATTACHMENT Attachments
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3049001R1

PLATE

locking

1шт.

2

3048906R11

BRACKET, CPTE., belt pulley safety shield

1шт.

3

3048908R92

SHIELD, CPTE., belt pulley safety

1шт.

NLS

NO LONGER SERVICED

hex 7/16

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
