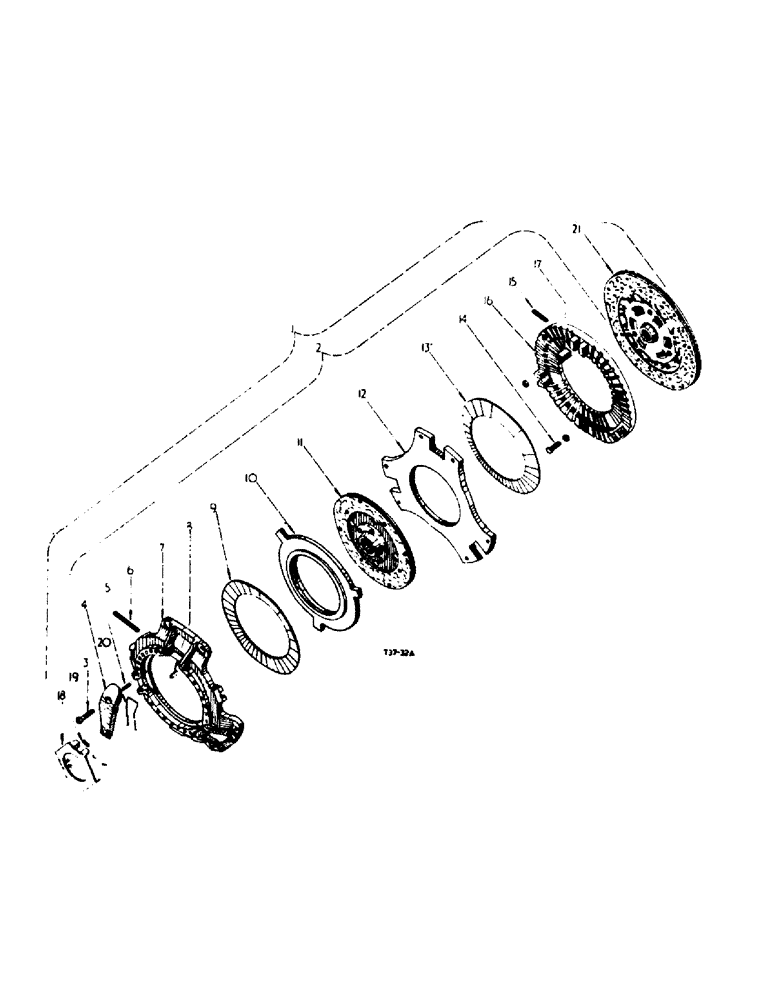

Запчасти Case IH 2300 (6-18) - ATTACHMENTS, DUAL CLUTCH AND FLYWHEEL, CONSTANT RUNNING P.T.O. ATTACHMENT Attachments

1

751132R98

CLUTCH

auburn, dual, CPTE., w/housing 709638R95 and member 709639R94

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

LATEST SUB ON REF. 1 IS 1539021C1 AND 1539026C1

1шт.

2

709638R94

HOUSING

assy., comprising: (1) cover 709642R2, (3) end 709647R1, (3) lever 709650R1, (1) member 709640R92, (6) nut 3066671R1, (3) pin 709648R1, (3) pin 3047750R1, (3) pin 3045529R1, (1) plate 709641R1, (1) plate 709643R1, (1) plate 709644R1

1шт.

3

709651R1

ADJUSTMENT SCREW

adjusting

3шт.

4

709650R1

SET

LEVER, clutch

3шт.

5

709654R1

VALVE SPRING

SPRING, anchor clip

3шт.

6

3047750R1

PIVOT PIN,7.84mm OD x 68.3mm L

PIN, pivot

3шт.

7

709642R2

COVER

1шт.

8

3047600R1

SPRING

hair pin

3шт.

9

3071104R1

SPRING

belleville (9" clutch)

1шт.

10

709644R1

PLATE

pressure (9" clutch)

1шт.

11

709640R92

CLUTCH & DISC ASSY

MEMBER, 9" driven, assy.

1шт.

12

709643R1

PLATE

flywheel

1шт.

13

709645R1

SPRING

belleville (main drive)

1шт.

14

709652R1

SET SCREW

set

3шт.

3066671R1

NUT

lock

6шт.

15

709648R1

PIN

rod end

3шт.

16

709641R1

PLATE

pressure (main drive)

1шт.

17

709647R1

END FITTING

END, rod

3шт.

18

3045527R1

RING

release

1шт.

3045529R1

PIN

split

3шт.

19

3045530R1

SLEEVE

3шт.

20

3045528R2

SPRING

3шт.

21

709639R94

CLUTCH & DISC ASSY

MEMBER, 11" driven

1шт.

3045853R11

FLYWHEEL, CPTE., (Petrol engines), comprising:

1шт.

3044171R1

GEAR

flywheel ring

1шт.

3041456R11

FLYWHEEL, CPTE., (D.P.A. engines), comprising:

1шт.

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

709515R1

BOLT,Hex, 7/16" - 20 x 1 1/4"

flywheel

4шт.

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

3045531R91

LEVER

PACKAGE, service, clutch release lever, comprising: (3) lever 709650R1, (3) pin 3045529R1, (1) ring 3045527R1, (3) spring 3045528R1, (3) spring 3045530R1

1шт.

3041390R91

FACING

PACKAGE, service, 9" clutch facing

1шт.

3041389R91

SERVICE KIT

PACKAGE, service, 11" clutch facing w/facings and twenty four rivets 3070748R1

1шт.

3070748R1

RIVET

24шт.
