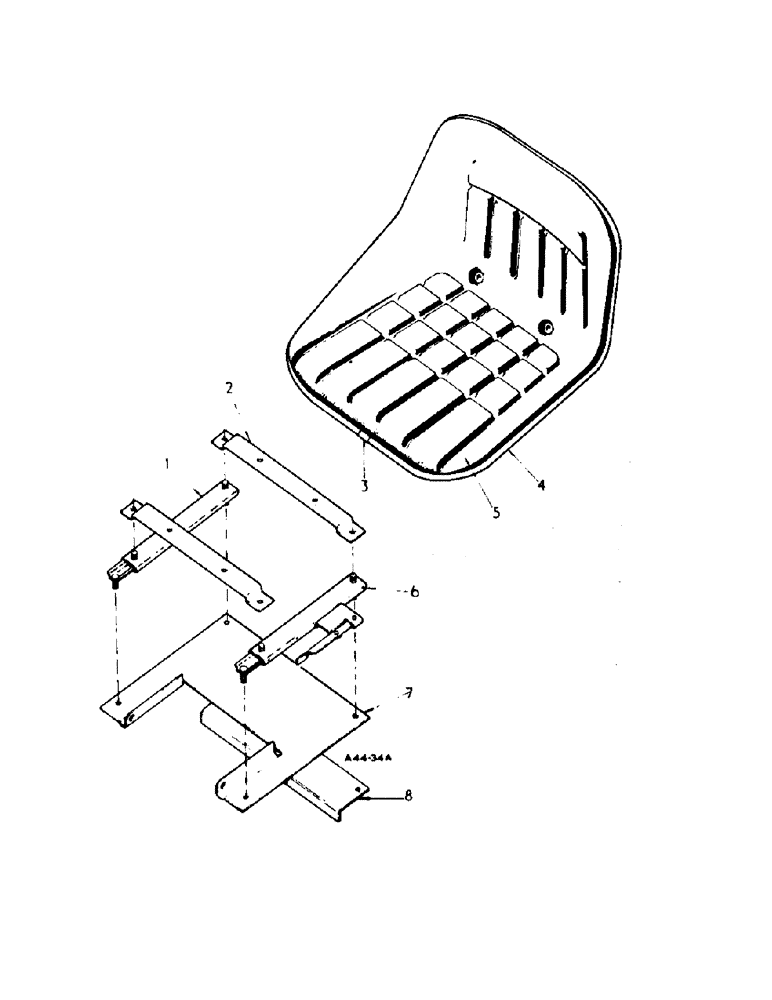

Запчасти Case IH 2300 (4-39) - CHASSIS, BOSTROM SEAT, STATIC (12) - CHASSIS

3112186R91

SEAT

bostrom static CPTE., Mk. 111

1шт.

1

3112740R1

RAIL

slide R.H.

1шт.

3112822R1

NUT

hex 5/16"

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

2

3112738R1

BRACKET

mounting

2шт.

179812

GEAR

hex hd. 5/16" x 1/2"

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

3

825224C1

CLIP

trim

1шт.

4

NSS

NOT SOLD SEPARAT

(Not serviced)

1шт.

5

3112734R1

CUSHION

SKIN AND FOAM, assy.

1шт.

3112741R1

PAN

assy., seat weld

1шт.

825222C1

GROMMET

2шт.

6

3112739R1

RAIL

slide L.H.

1шт.

3112822R1

NUT

hex 5/16"

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

7

3112718R91

HINGE

platform assy.

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2" x 1-3/4" hex hd.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, , Attaching hardware for seat assembly 1/2"

2шт.

8

3071396R1

ANGLE

rear adjuster

1шт.
