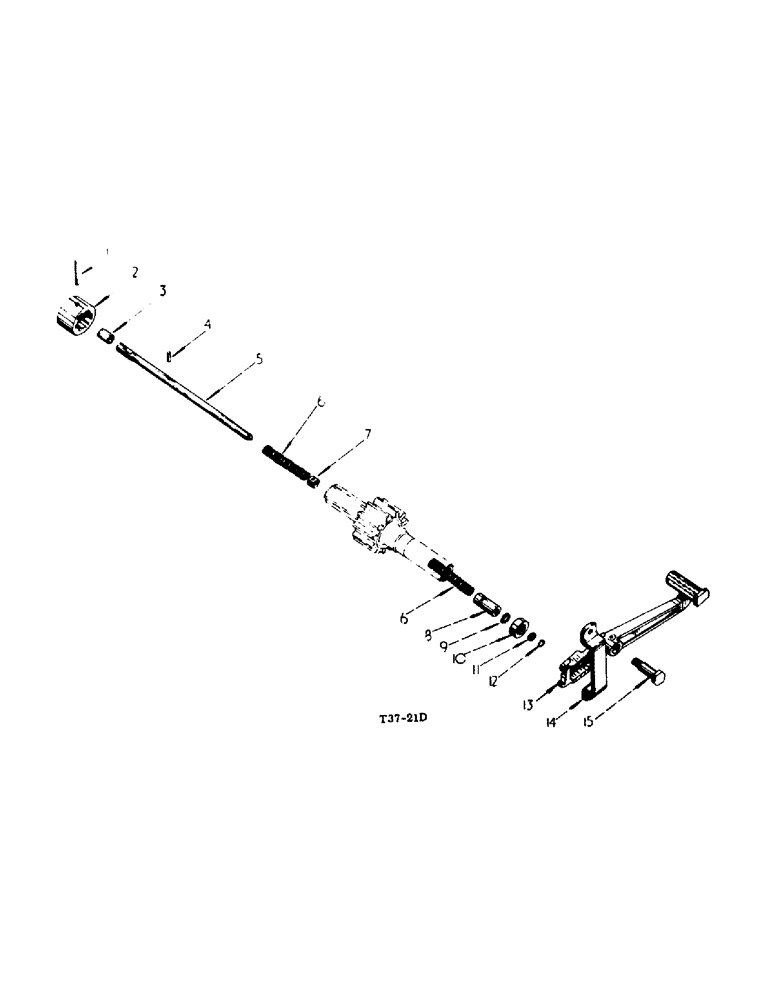

Запчасти Case IH 2300 (4-31) - CHASSIS, DIFFERENTIAL LOCK (12) - CHASSIS

1

3111329R1

PIN

groove, 5/16" x 2-1/2"

1шт.

2

704747R1

CLUTCH

differential lock

1шт.

3

704750R1

TUBE

DISTANCE PIECE, differential lock shaft

1шт.

4

141155

DOWEL,3/16" x 3/4"

PIN, dowel 3/16" x 3/4"

1шт.

5

708997R2

SHAFT

differential lock

1шт.

6

705233R1

SPRING

differential lock

2шт.

7

704749R1

COLLAR

differential lock shaft

1шт.

8

708996R1

RETAINER

O-ring, differential lock shaft

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

inner, differential lock shaft

1шт.

10

708998R91

SEAL

OIL SEAL, differential lock shaft, Opt.

1шт.

10

3066288R91

OIL SEAL

OIL SEAL, differential lock shaft, Opt.

1шт.

10

3070026R91

SEAL

OIL SEAL, differential lock shaft, Opt.

1шт.

11

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

outer, differential lock shaft

1шт.

12

708999R1

RETAINER

CIRCLIP, ext.

1шт.

13

3066635R31

PEDAL

LEVER, differential (used w/safety frame & cab)

1шт.

13

3066635R31

PEDAL

LEVER, differential (USA & Canadian Market)

1шт.

13

3070576R21

LEVER

differential, CPTE.

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF (Used w/lever 3066635R31 USA & Canadian Market) 1/8"-27 x .66 lg

1шт.

14

704758R1

LARGE PLATE

PLATE, thrust, differential lock lever

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex hd. 7/16 x 1-1/4

2шт.

W6652

WASHER

plain 15/32 x 1 x 16 ga.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

704757R1

BOLT

pivot, differential lock

1шт.

615167R1

WASHER

plain 25/32 x 1-3/16 x 16 ga.

2шт.
