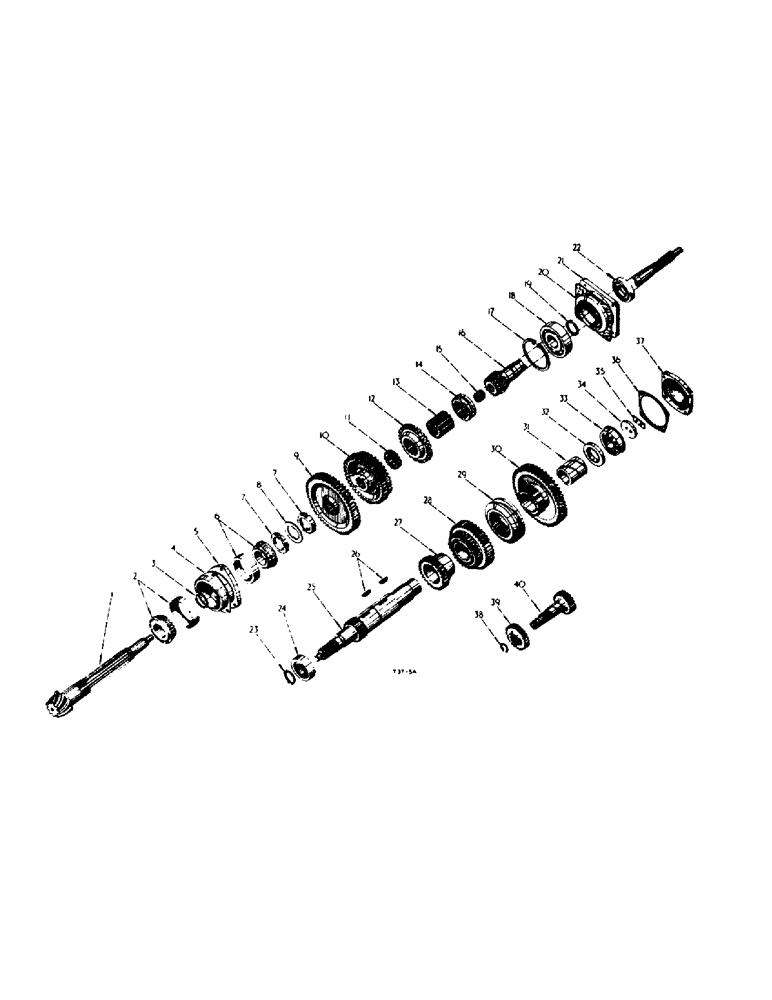

Запчасти Case IH 2300 (4-27) - CHASSIS, TRANSMISSION GEARS AND SHAFTS (12) - CHASSIS

1

NSS

NOT SOLD SEPARAT

SHAFT, trans. spline (Order 709448R92)

1шт.

2

PO15712

TAPERED BEARING

roller, taper, trans. spline shaft rear (Timken)

1шт.

3

707500R1

SPACER

trans. spline shaft taper roller bearing

1шт.

707501R1

SHIM

trans. spline shaft taper roller bearing (.002)

1шт.

707503R1

SHIM

trans. spline shaft taper roller bearing (.004)

1шт.

707502R1

SHIM

trans. spline shaft taper roller bearing (.010)

1шт.

4

704008R1

SHIM

trans. spline shaft taper roller bearing cage (heavy)

1шт.

4

704009R1

SHIM

trans, spline shaft taper roller bearing cage (Medium)

1шт.

4

704010R1

SHIM

trans. spline shaft taper roller bearing cage (Light)

1шт.

4

3041092R1

SHIM

trans. spline shaft taper roller bearing cage (.015)

1шт.

4

3041093R1

SHIM, trans. spline shaft taper roller bearing cage (.030)

1шт.

5

751069R1

CAGE

trans. spline shaft taper roller bearing

1шт.

186334

BOLT, hex hd. 1/2" UNF x 2-5/8"

3шт.

25-118

NUT,1/2"-20, G5

lock, 1/2" UNF

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

6

551862R91

BEARING ASSY,2" ID x 3.5" OD x 0.875"

roller, taper, trans. spline shaft (Timken) Optional

1шт.

6

704715R91

TAPERED BEARING

BEARING, roller, taper, trans. spline shaft (Timken) Optional

1шт.

7

751068R1

NUT

lock, trans. spline shaft taper roller bearing

2шт.

8

703992R1

WASHER

lock, trans. spline shaft taper roller bearing, lock nut

1шт.

9

751070R1

GEAR

sliding, 1st and reverse speed (51 teeth)

1шт.

10

751071R1

GEAR

sliding, 2nd and 3rd speed (44 and 36 teeth)

1шт.

11

751073R2

GEAR

coupling, 4th and direct speed

1шт.

12

751072R3

SPLINED COUPLING

GEAR, coupling, sliding, 4th and direct speed (51 teeth)

1шт.

13

751074R21

GEAR

sliding quill, CPTE., w/two bearing 751075R91

1шт.

14

751076R3

COUPLING, BREAK AWAY

COUPLING, sliding gear

1шт.

15

704014R91

NO LONGER SERVICED

BEARING, pilot, trans. spline shaft (Fischer), Opt.

1шт.

15

751867R91

BEARING

pilot, trans. spline shaft (Ina), Opt.

1шт.

15

3114321R91

NEEDLE BEARING

BEARING, pilot trans. spline shaft (Ina), Opt.

1шт.

16

751078R2

SHAFT

trans. driving

1шт.

17

751081R1

CLIP

CIRCLIP, trans. driving shaft bearing retaining (100 mm internal)

1шт.

18

3114942R91

BEARING

trans. driving shaft (NTN), Opt.

1шт.

18

700523R91

BEARING, BALL

BEARING, trans. driving shaft (R&M), Opt.

1шт.

18

700521R91

BALL BEARING

BEARING, trans. driving shaft (Fischer), Opt.

1шт.

18

49533H

BEARING, BALL

BEARING, trans. driving shaft (SKF), Opt.

1шт.

18

704768R92

BALL BEARING

BEARING, trans. driving shaft (Hoffman), Opt.

1шт.

19

751146R1

RING

CIRCLIP, trans. driving shaft bearing retaining

1шт.

20

704017R1

GASKET

trans. driving shaft bearing cage

1шт.

21

751181R1

CAGE

bearing, trans. driving shaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex hd. 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

751080R91

SEAL

OIL SEAL, trans. driving shaft, Opt.

1шт.

22

3066617R91

SEAL

OIL SEAL, trans. driving shaft, Opt.

1шт.

22

3049150R92

SEAL

OIL SEAL, trans. driving shaft, Opt.

1шт.

23

703987R1

CIRCLIP, trans. countershaft rear ball bearing retainer

1шт.

24

700524R91

BALL BEARING

BEARING, ball, trans. countershaft, rear (Fischer), Opt.

1шт.

294714R91

BALL BEARING

BEARING, ball, trans. countershaft, rear (S.K.F), Opt.

1шт.

700526R91

BEARING, BALL

trans. countetshaft, rear (R&M), Opt.

1шт.

704772R92

BEARING, BALL

trans. countershaft, rear (Hoffman), Opt.

1шт.

25

751052R2

GEAR

COUNTERSHAFT, trans. and 1st speed gear

1шт.

26

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

2шт.

27

751054R1

GEAR

driving, 2nd speed (26 teeth)

1шт.

28

751055R3

GEAR

3rd and 4th speed (32 and 39 teeth)

1шт.

29

3040868R3

SPLINED COUPLING

COUPLING, sliding gear

1шт.

30

751058R2

GEAR

constant mesh

1шт.

31

751056R1

BUSHING

BUSH, cast iron

1шт.

32

751059R1

SPACER

countershaft

1шт.

33

3114945R91

BEARING

ball countershaft front (NTN), Opt.

1шт.

3063612R91

BEARING

ball countershaft front (Hoffman), Opt.

1шт.

34

751120R2

WASHER

retaining, trans, countershaft

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

35

751441R1

SHIM

LOCKPLATE, trans. countershaft

1шт.

36

751061R1

GASKET

countershaft front ball bearing retainer

1шт.

37

751062R1

RETAINER

countershaft front ball bearing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex hd. 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

515440R1

SNAP RING,#98, Ext

CIRCLIP, ext. 25 mm

1шт.

3110755R1

WASHER

reverse idler

1шт.

39

751083R1

GEAR

driving, reverse idler (24T)

1шт.

40

3071849R2

SHAFT

AND GEAR, reverse idler (20T)

1шт.

3111471R91

SHAFT HOUSING

PACKAGE, trans. spline shaft and drive gear, Opt.

1шт.

709448R92

SHAFT

PACKAGE, trans. spline shaft and drive gear

1шт.

751075R91

BEARING

needle

2шт.

3043047R91

NEEDLE BEARING

BEARING, needle, Opt.

1шт.

3061827R92

COUPLING

PACKAGE, service, coupling, comprising: (1) coupling 3040868R3, (1) gear 751055R2, (1) gear 751058R2

1шт.

3069326R92

PINION

PACKAGE, service, sliding gear coupling and quill

1шт.
