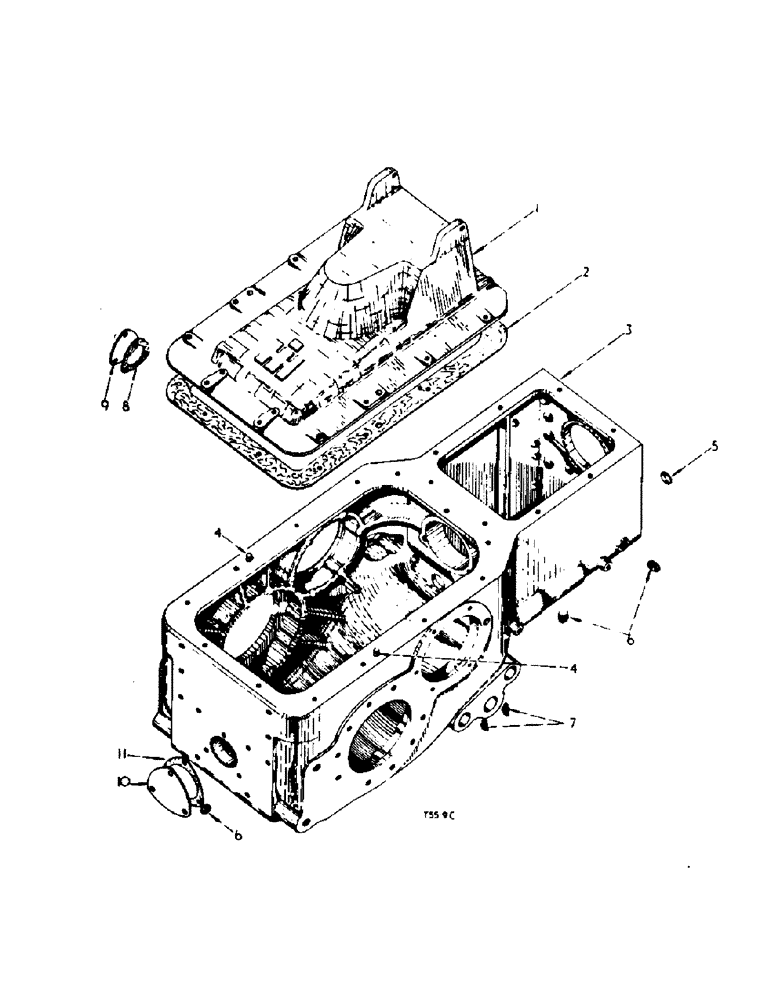

Запчасти Case IH 2300 (4-26) - CHASSIS, TRANSMISSION CASE (12) - CHASSIS

1

703968R21

COVER, trans. rear, CPTE., w/two plugs 112428

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex hd. 3/8 x 1-1/8

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

703967R3

GASKET

trans. case cover, rear

1шт.

3

3072135R92

CASE

trans., comprising: (1) bushing 3072136R91, (1) bushing 711272R2, (2) lubricator 109462, (2) pin 141284, (1) plug 172575, (3) plug 438159

1шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

172575

PLUG,Exp, 1 9/16"

expansion

1шт.

6

31189R1

NUT

PLUG, pipe 1/2" sq. hd., Opt.

3шт.

6

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe 1/2" sq. hd., Opt.

3шт.

6

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional Sq Hd, 1/2"-14 NPTF

3шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, angle 1/8" PT - 90 deg. (brake pedal shaft)

2шт.

8

3114906R1

GASKET

P.T.O. shifter shaft hole cover plate

1шт.

711272R2

BUSHING

BUSH, reverse gear, rear

1шт.

3072136R1

BUSHING

BUSH, reverse gear, front

1шт.

9

711466R1

PLATE

cover P.T.O. shifter shaft hole

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

703972R1

PLATE

P.T.O. shaft opening cover

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

703971R1

GASKET

P.T.O. shaft opening cover plate

1шт.
