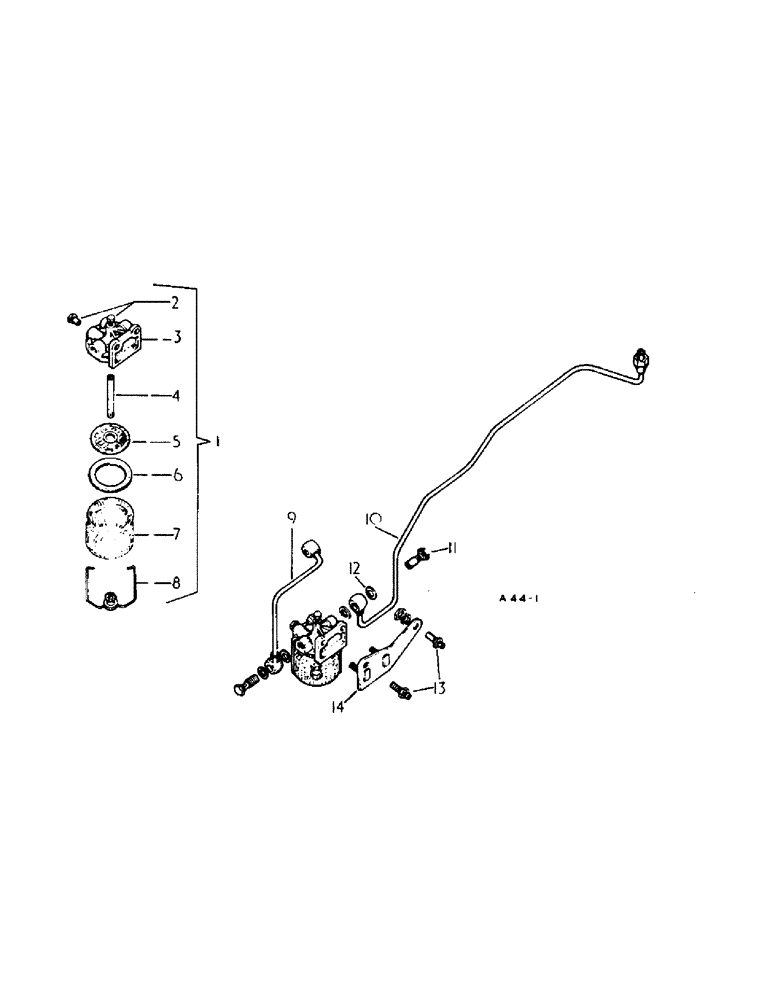

Запчасти Case IH 2300 (4-19) - CHASSIS, WATER TRAP (12) - CHASSIS

1

3041141R92

TRAP

water, cpte., comprising:

1шт.

2

3042738R1

SCREW

water trap valve

2шт.

3

3062465R1

CAP

TOP, water trap

1шт.

4

3042740R1

SCREEN

tubular, water strap

1шт.

5

3042902R1

FILTER

GAUZE, water trap filter

1шт.

6

3042901R1

GASKET

water trap

1шт.

7

3042900R1

BOWL

glass, water trap

1шт.

8

3042739R91

CLAMP

BALE, assy., water trap

1шт.

9

3069923R91

PIPE

fuel cpte., water trap to fuel pump

1шт.

10

3112132R92

PIPE

fuel, cpte., tap to water trap

1шт.

11

3070324R1

BOLT,1/2" - 20 x 1.067"

banjo, optional

2шт.

11

708296R1

CONNECTOR, ELEC

BOLT, banjo, optional

2шт.

12

708297R1

GASKET

WASHER, banjo bolt

4шт.

13

3069920R1

STUD

water trap mounting

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

3069918R11

BRACKET

water trap mounting, cpte.

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
