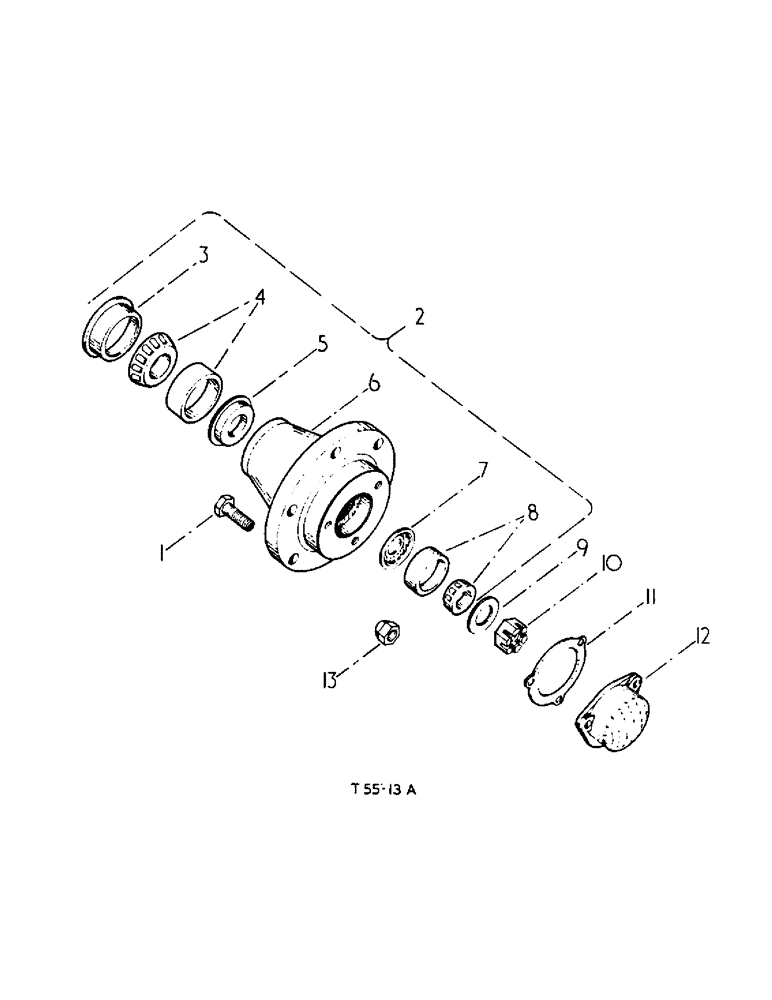

Запчасти Case IH 2300 (4-17) - CHASSIS, FRONT WHEEL HUB (12) - CHASSIS

1

3047573R1

WHEEL BOLT

BOLT, front wheel hub

12шт.

2

3043868R11

HUB

cpte., front wheel, comprising: (1) bearing 618022R91, (1) bearing 3043872R91, (1) hub (NSS), (1) retainer 48548D, (1) retainer 3043869R1, (1) retainer 3043870R1

1шт.

3

48548D

WASHER

front wheel felt washer

2шт.

4

618022R91

BEARING ASSY,1.375" ID x 2.5635" OD x 0.72"

cpte., inner, front wheel, optional

2шт.

371896R91

TAPERED BEARING

BEARING, cpte., inner, front wheel, optional

2шт.

5

3043869R91

RETAINER

inner, grease, front wheel bearing

2шт.

6

NSS

NOT SOLD SEPARAT

HUB, front wheel (Not supplied separately)

1шт.

7

3043870R1

RETAINER

outer, grease, front wheel bearing

2шт.

8

392674R91

BEARING ASSY,1.125" ID x 2.25" OD x 0.7813, 0.6250"

assy., outer front wheel, T.M., optional w/3043872R91

1шт.

392675R91

ROLLER BEARING,28.57mm ID x 19.36mm W

CONE, tapered roller bearing

1шт.

392676R1

BEARING, CUP

CUP, tapered roller bearing

1шт.

8

3043872R91

BEARING

cpte., outer front wheel optional w/392674R91

2шт.

9

700572R1

WASHER

front wheel outer bearing retainer

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, hex sltd., 7/8" UNF

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

11

703921R1

GASKET

front wheel hub cap

2шт.

12

703922R1

NO LONGER SERVICED

CAP, front wheel hub, optional

2шт.

12

704021R1

CAP

front wheel hub, optional

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

3047574R1

NUT

front wheel hub, bolt

12шт.
