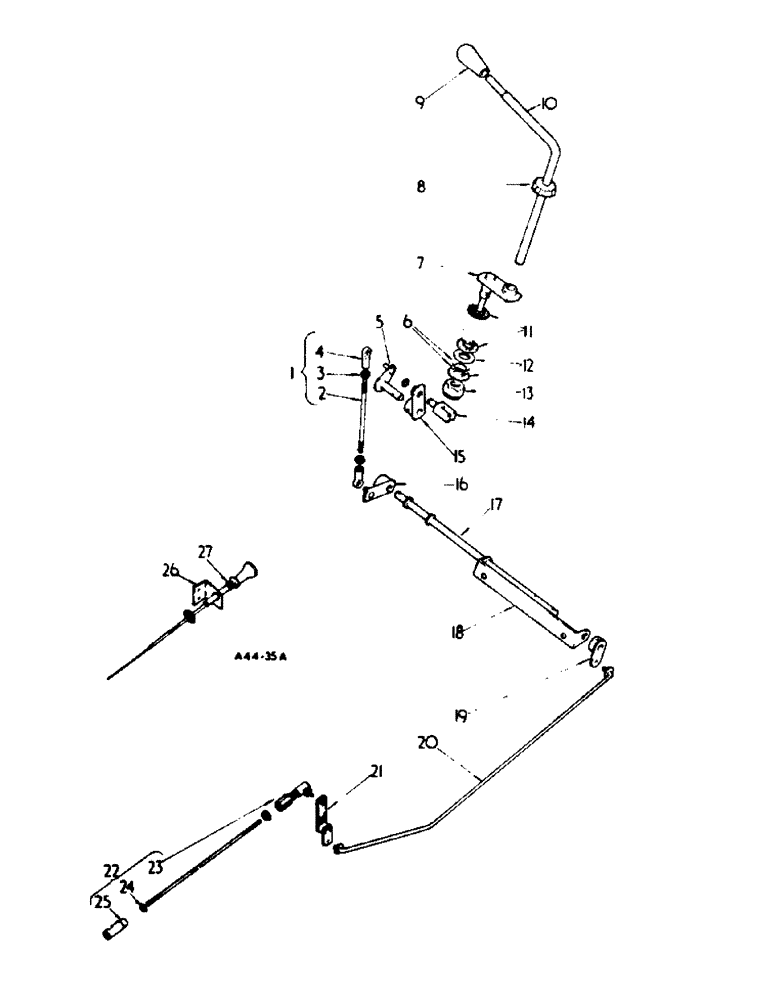

Запчасти Case IH 2300 (4-10) - CHASSIS, GOVERNOR CONTROLS, PETROL, U.S.A. AND CANADIAN MARKET (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
3112048R91
ROD
cpte., control comprising:
1шт.
2
NSS
NOT SOLD SEPARAT
ROD, control
1шт.
4
3068537R1
TRUNNION
END, control rod
2шт.
5
3112080R1
LEVER
cpte., governor control
1шт.
6
3112079R1
WASHER
disc spring
2шт.
7
3112075R2
ARM
cpte., governor control
1шт.
17054R1
LOCK PIN,3/16" x 7/8", Slotted
PIN, slotted spring 3/8 x 7/8 (U.S.A./Canada-Petrol 002842/up) (U.S.A./Canada-Petrol 2300/000891/up)
1шт.
17271R1
LOCK PIN,1/8" x 7/8", Slotted
PIN, (U.S.A/Canada-Petrol up to /0028410) (U.S.A/Canada-Petrol to /2300/000890) 1/8" x 7/8", Slotted
1шт.
575808R1
WASHER
plain 19/32 x 1 x .063
1шт.
8
528290R1
GUIDE RING
COLLAR, governor control handle
1шт.
222335
SET SCREW,Hex Soc, #8-32 x 3/8"
SCREW, 3/8" soc. hd.
1шт.
9
402584R1
BUTTON
KNOB, governor control handle
1шт.
10
3112074R2
ROD
governor control handle
1шт.
11
3112078R1
FRICTION WASHER
friction governor control
2шт.
12
551174R1
WASHER
19/32" 1-1/4" x 1/8"
2шт.
13
3112678R1
NUT
9/16" UNF self locking
1шт.
14
3112086R1
FORK
governor control
1шт.
3112087R1
WASHER
governor control fork
1шт.
138693R1
SNAP RING,#31, Ext
Ring, Snap, . #31, Ext
1шт.
15
3112082R1
LEVER
cpte., throttle arm
1шт.
17271R1
LOCK PIN,1/8" x 7/8", Slotted
PIN, 1/8" x 7/8", Slotted
1шт.
120394
WASHER,3/8", SAE
WASHER, 13/32" x 13/16" x .051" plain
1шт.
16
3112702R1
LEVER, cpte., cross shaft driving
1шт.
17271R1
LOCK PIN,1/8" x 7/8", Slotted
PIN, 1/8" x 7/8", Slotted
1шт.
17
3112089R1
SHAFT
cross cpte., governor control
1шт.
13042R1
AXLE PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
120394
WASHER,3/8", SAE
WASHER, 13/32" x 13/16" plain
1шт.
18
3112088R1
BRACKET
cross shaft spt.
1шт.
NLS
NO LONGER SERVICED
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
19
3112096R1
LEVER
cpte., cross shaft
1шт.
17271R1
LOCK PIN,1/8" x 7/8", Slotted
PIN, 1/8" x 7/8", Slotted
1шт.
20
3112750R1
ROD, cpte., cross shaft to bell crank
1шт.
137141
AXLE PIN
PIN, cotter, 1/16" x 5/8" C-Z
2шт.
21
3112744R2
LEVER
cpte., bell crank
1шт.
22
3112748R91
ROD
cpte., governor to bell crank lever comprising:
1шт.
23
3109941R92
END
adj. control rod
1шт.
114492
JAM NUT,Jam, 1/4"-28, G5
1/4" UNF hex
1шт.
115547
LOCK WASHER,Int Tooth, 1/4"
WASHER, LOCK, Int Tooth, 1/4"
1шт.
24
114492
JAM NUT,Jam, 1/4"-28, G5
1/4" UNF
2шт.
25
3062511R91
JOINT
ball governor to bell crank lever
1шт.
191241
PIN, cotter, 3/64" x 5/8"
1шт.
114492
JAM NUT,Jam, 1/4"-28, G5
1/4" hex jam., high idle adj. stop
1шт.
NLS
NO LONGER SERVICED
SCREW, 1/4" x 1-1/2" fill. hd., high idle adj. stop
1шт.
26
3071169R1
BRACKET, engine choke control
1шт.
181312
BOLT,Hex, 1/4" - 28 x 11/16", Gr 5
hex hd. 1/4" UNF x 11/16"
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
27
3045038R1
CABLE, cpte., choke control
1шт.
120520
CLIP
CLAMP, closed 3/16" C-Z
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4" x 1/2" hex hd. C-Z
1шт.
115547
LOCK WASHER,Int Tooth, 1/4"
WASHER, LOCK, Int Tooth, 1/4"
1шт.
Выбрано товаров: 54
