Запчасти Case IH 2300 (4-08) - CHASSIS, GOVERNOR CONTROLS, DIESEL (12) - CHASSIS

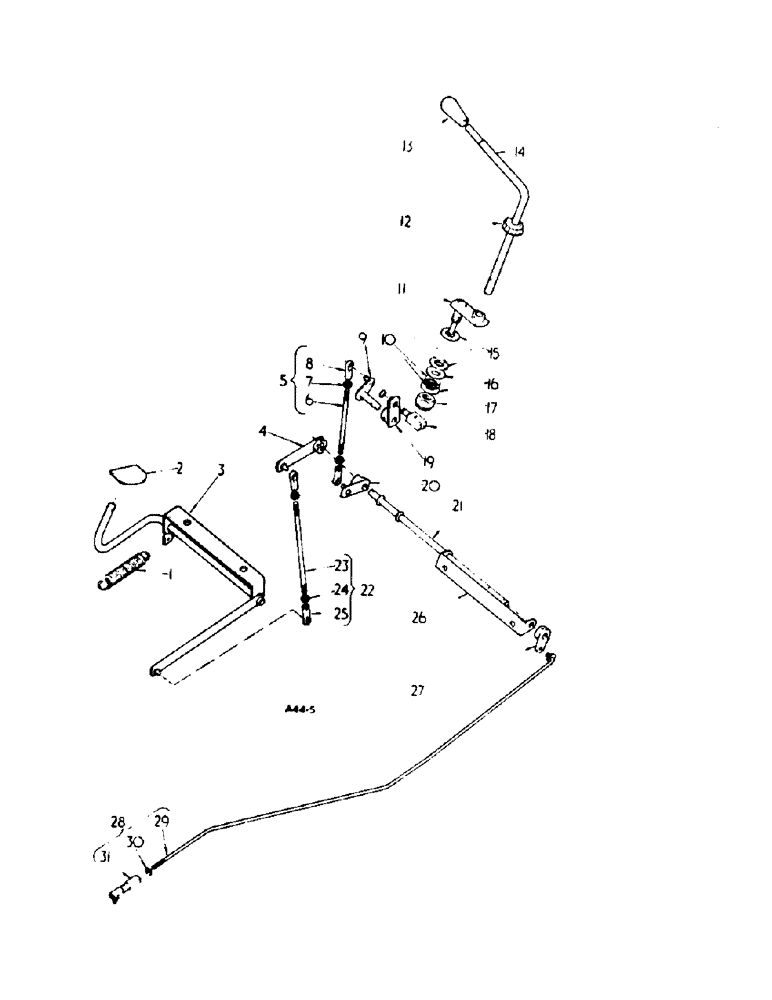

Схема запчастей Case IH 2300 - (4-08) - CHASSIS, GOVERNOR CONTROLS, DIESEL (12) - CHASSIS
1
24
29
15
28
6
26
17
2
22
14
30
5
31
18
4
12
7
13
11
10
3
16
8
25
9
27
19
23
20
21

Артикул

Название

Примечание

Количество

1

3047546R1

SPRING

pedal return

1шт.

2

3108779R1

PEDAL

cpte. foot accelerator

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

3

3112889R1

BRACKET

cpte., cross shaft (used w/safety frame & cab)

1шт.

3

3112052R1

BRACKET

cpte., cross shaft

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2

2шт.

271501

SOCKET

NUT, hex 7/16

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

4

3112094R1

LEVER

cpte., foot accelerator

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

5

3112048R91

ROD

cpte., control comprising:

1шт.

6

NSS

NOT SOLD SEPARAT

ROD, control

1шт.

7

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

8

3068537R1

TRUNNION

END, control rod

2шт.

9

3112080R1

LEVER

cpte., governor control

1шт.

10

3112079R1

WASHER

disc spring

2шт.

11

3112075R2

ARM

cpte., governor control

1шт.

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, (Export-Diesel 001405/up) (Domestic-Diesel 001113/up) (Domestic-Diesel 2300/000541/up) 3/16" x 7/8", Slotted

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, (Export-Diesel up to /001404) (Domestic-Diesel up to /001112) (Domestic-Diesel up to /2300/00 0540) 1/8" x 7/8", Slotted

1шт.

575808R1

WASHER

plain 19/32 x 1 x .063

1шт.

12

528290R1

GUIDE RING

COLLAR, governor control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, 3/8" soc. hd.

1шт.

13

402584R1

BUTTON

KNOB, governor control handle

1шт.

14

3112074R2

ROD

governor control handle

1шт.

15

3112078R1

FRICTION WASHER

friction governor control

2шт.

16

551174R1

WASHER

19/32" x 1-1/4" x 1/8"

2шт.

17

3112678R1

NUT

9/16" UNF self locking

1шт.

18

3112086R1

FORK

governor control

1шт.

3112087R1

WASHER

governor control fork

1шт.

138693R1

SNAP RING,#31, Ext

Ring, Snap, . #31, Ext

1шт.

19

3112082R1

LEVER

cpte., throttle arm

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32" x 13/16" x .051" plain

1шт.

20

3112091R1

LEVER

cpte, cross shaft driving

1шт.

21

3112090R2

SHAFT

cross cpte., governor control

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

22

3112050R91

ROD

control cpte., foot accelerator comprising

1шт.

23

NSS

NOT SOLD SEPARAT

ROD, control foot accelerator

1шт.

24

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

25

3068537R1

TRUNNION

END, control rod

2шт.

26

3112088R1

BRACKET

cross shaft cpte.

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

3114217R1

LEVER

cpte., cross shaft

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

28

3112097R91

ROD

assy., cpte., cross shaft to governor comprising:

1шт.

29

NSS

NOT SOLD SEPARAT

ROD, assy., cross, Serial Range: shaft-governor

1шт.

137141

AXLE PIN

PIN, cotter 1/16" x 5/8"

1шт.

120392

WASHER,1/4", SAE

9/32" x 5/8 x .051"

1шт.

23036R1

WASHER

13/32" x 3/4" x .030" plain

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

30

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" UNF

1шт.

31

3109941R2

END

adj. control rod

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" UNF

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" hex jam, high idle adj. stop

1шт.

225506

DRIVING SPROCKET,Slotted Fillister Hd, 1/4" - 28 x 1 1/2"

SCREW, 1/4" x 1-1/2" fill, high idle adj. stop

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

hex hd. 3/8" x 1-1/2", foot accelerator stop

1шт.

120377

NUT,3/8" - 16, Gr 5

Foot accelerator stop 3/8"-16, G5

2шт.

Выбрано товаров: 60
