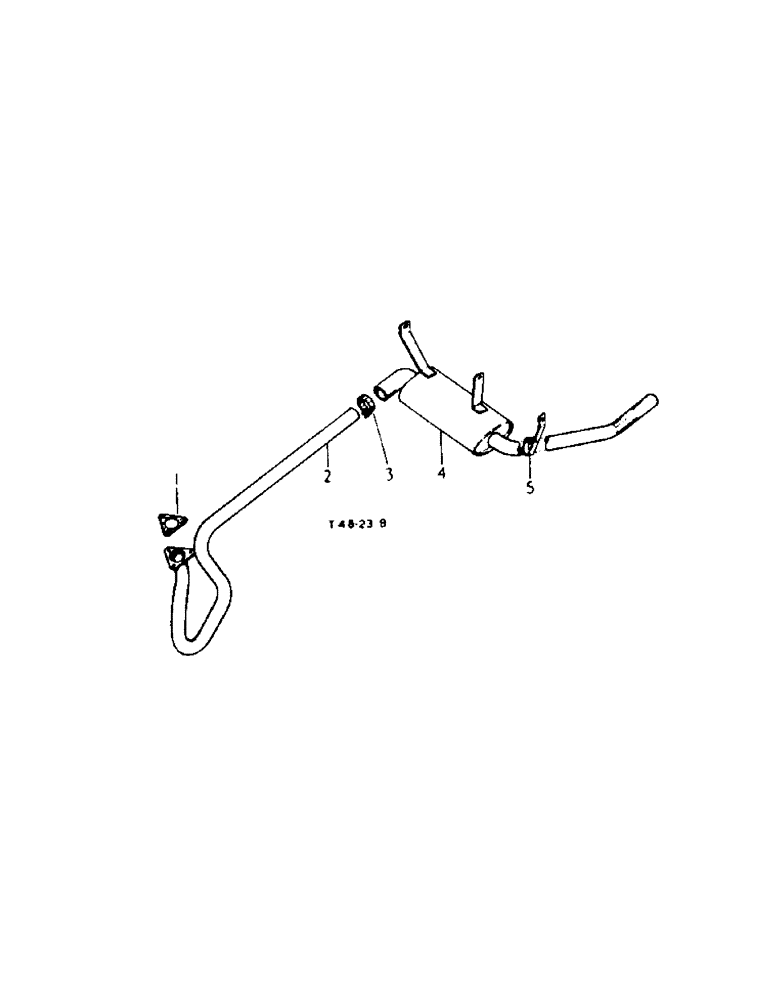

Запчасти Case IH 2300 (4-07[A]) - CHASSIS, DOWNSWEPT EXHAUST PIPE, PETROL (12) - CHASSIS

1

3060566R1

GASKET

exhaust pipe flange, downswept (Petrol)

1шт.

2

3112753R1

PIPE

exhaust, manifold to silencer, cpte., downswept (Petrol)

1шт.

NLS

NO LONGER SERVICED

Downswept exhaust pipe (Petrol) Hex, 3/8"-16 x 1", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Downswept exhaust pipe (Petrol) 3/8"

3шт.

3

704621R1

CLAMP

exhaust pipe, downswept (Petrol)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4", Downswept exhaust pipe (Petrol)

1шт.

102635

NUT,3/8"-16, G5

Downswept exhaust pipe (Petrol) 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Downswept exhaust pipe (Petrol) 3/8"

1шт.

4

3106834R1

MUFFLER

SILENCER, exhaust, cpte., downswept pipe (Petrol)

1шт.

NLS

NO LONGER SERVICED

Downswept exhaust pipe (Petrol) Hex, 3/8"-16 x 1", G5

2шт.

5

3068010R1

CLAMP

support, muffler outlet pipe, downswept exhaust (Petrol)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Downswept exhaust pipe (Petrol) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

Downswept exhaust pipe (Petrol) 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Downswept exhaust pipe (Petrol) 3/8"

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(For muffler outlet pipe support clamp), Downswept exhaust pipe (Petrol) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.
