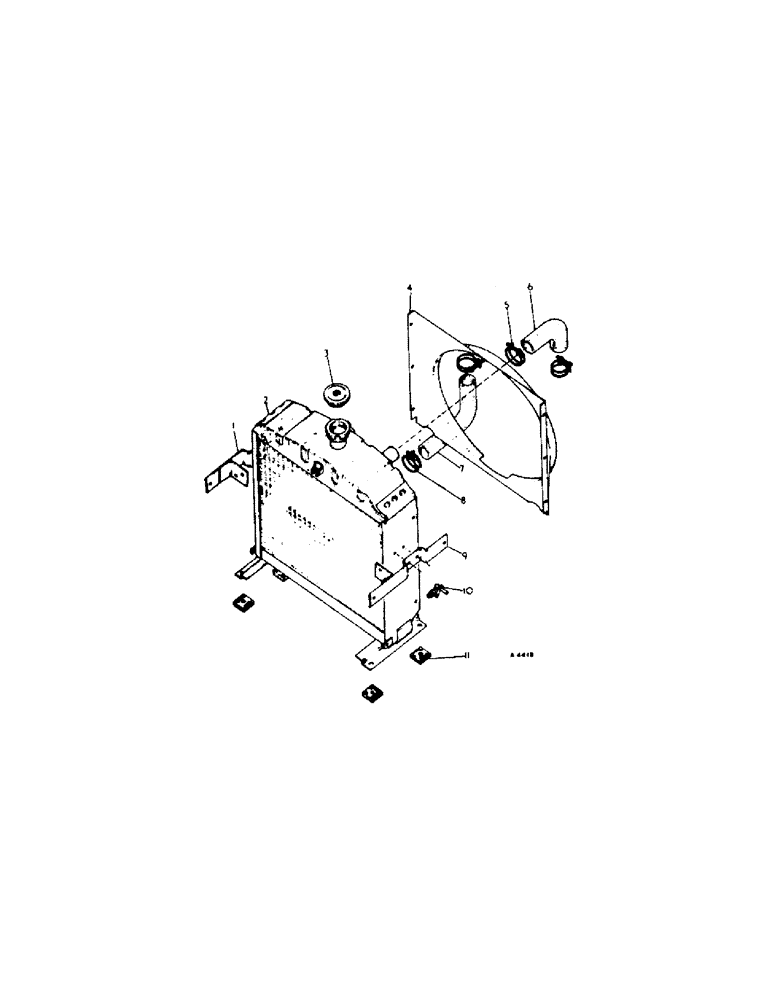

Запчасти Case IH 2300 (4-06[A]) - CHASSIS, RADIATOR AND CONNECTIONS (12) - CHASSIS

1

3112070R1

SUPPORT

cpte. air cleaner R.H., radiator and connections

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Radiator and connections Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Radiator and connections 1/4"

2шт.

106261

WASHER,1/4"

5/16 x 3/4 x .051, radiator and connections

2шт.

2

3112868R94

RADIATOR

w/cap, fan housing and guards cpte. and connections

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex hd. 7/16 x 1-1/4, radiator and connections

4шт.

NLS

NO LONGER SERVICED

hex 7/16, radiator and connections

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Radiator and connections 7/16"

4шт.

3

3115339R91

CAP

filler (used w/radiator 3112868R94) and connections

1шт.

3

3111424R91

FILLER CAP

CAP, filler (used w/radiator 3112868R91) and connections

1шт.

4

3115338R91

COWL

assy., fan (used w/3112868R94), radiator and connections

1шт.

4

3047379R1

HOUSING

COWL, fan (used w/3112868R91), radiator and connections

1шт.

25-114

NUT,1/4"-28, G5

1/4 UNF hex, radiator and connections

6шт.

149495

SCREW,Sl Rnd Hd, 1/4" - 28 x 1/2"

1/4 UNF x 1/2 rd. hd., radiator and connections

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Radiator and connections 1/4"

6шт.

5

705935R91

HOSE CLAMP

CLAMP, radiator inlet hose and connections

2шт.

6

3112067R1

RADIATOR HOSE,1.50" ID x 4.44", SAE 20R4 CLASS R or SAE 20R4 CLASS D1

Inlet 1.50" ID x 4.44", SAE 20R4 CLASS R or SAE 20R4 CLASS D1

1шт.

7

3112068R1

HOSE

radiator outlet and connections

1шт.

8

705934R91

CLAMP

radiator outlet hose and connections

2шт.

9

3112069R1

SUPPORT, cpte. air cleaner L.H. and connections

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Radiator and connections Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Radiator and connections 1/4"

2шт.

106261

WASHER,1/4"

5/16 x 3/4 x .051, radiator and connections

2шт.

10

3113083R1

PLUG, DRAIN

radiator and connections

1шт.

11

3041407R1

PAD

radiator mounting and connections

4шт.

3120448R1

PIPE

overflow, parts not illustrated, radiator and connections

1шт.

3047381R1

CLIP, pipe, parts not illustrated, radiator and connections

1шт.
