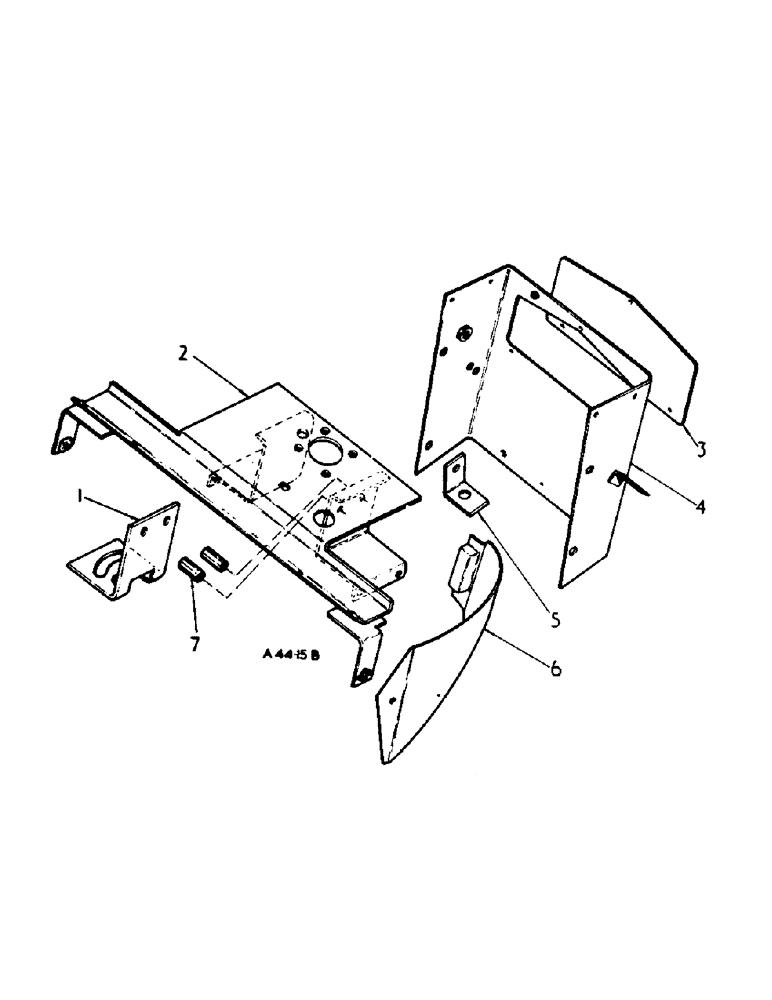

Запчасти Case IH 2300 (4-04) - CHASSIS, HOOD AND INSTRUMENT PANEL SUPPORTS (12) - CHASSIS

1

3114772R1

BRACKET

friction governor control

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

plain .281 x .025 x .051 phc

2шт.

2

3114269R1

SUPPORT

cpte. instrument panel (Export-Diesel 000925/up) (Domestic-Diesel 00060.1/up) (Canada-Diesel 000718/up) (Canada- Petrol 000633/up) (Domestic-Diesel 2350/000513/up)

1шт.

2

3112176R2

SUPPORT

cpte. instrument panel (Export-Diesel up to /000924) (Domestic-Diesel up to /000608) (Canada-Diesel up to /000717) (Canada-Petrol up to /000632) (Domestic-Diesel up to /2356/ 000512)

1шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

hex hd. 1/4 x 3/4

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

3112185R1

COVER

inspection

1шт.

24402R1

SCREW, pan hd. 12-14 x 1/2

3шт.

4

3114121R2

SUPPORT

rear cpte., Austrian market and Deluxe lighting

1шт.

For machines with flat top fenders only

1шт.

4

3112172R2

BRACKET

SUPPORT, rear cpte. hood and instrument panel

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

172837

BOLT, hex hd. 3/8 x 3/4

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

3112175R1

BRACKET, support mounting

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

hex hd. 5/8 x 1

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

3112168R1

PANEL

side L.H.

1шт.

3112169R1

PANEL

side R.H.

1шт.

7

3114771R1

SPACER, instrument panel support mounting

2шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
