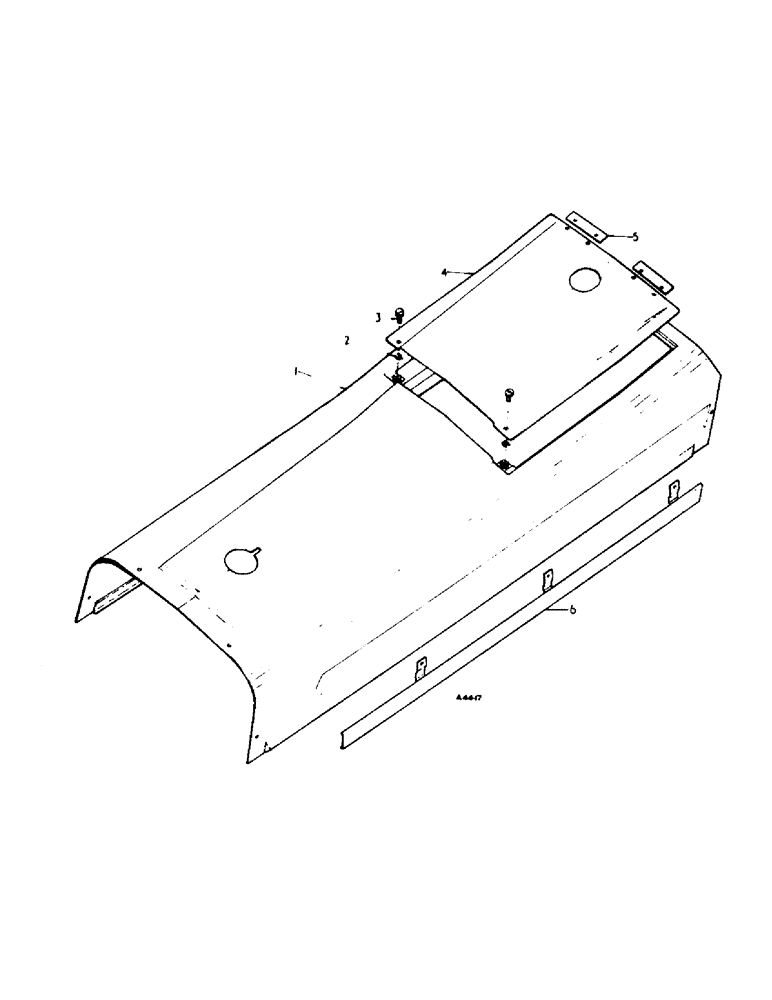

Запчасти Case IH 2300 (4-03) - CHASSIS, HOOD AND REAR COVER (12) - CHASSIS

1

3114083R1

ENGINE HOOD

SHEET, assy., hood (upswept exhaust)

1шт.

1

3112162R1

SHEET, assy., hood (downswept exhaust)

1шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8 hex cap

6шт.

2

376787R1

WASHER

2шт.

3

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.

4

3112170R11

COVER

assy., hood rear comprising: (4) nut 110633, (4) screw 155937, (2) screw 289872R1, (2) strip 3112171R1, (2) washer 376787R1, (4) washer 106497

1шт.

5

3112171R1

STRIP

rear hood cover retainer

2шт.

110633

NUT,#10-24

4шт.

155937

SCREW,Cross Flat Hd, #10 - 24 x 1/2"

10-24 x 5/8" fill. hd. mach

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

6

3112164R1

PANEL

assy., lower hood L.H. (illustrated)

1шт.

3112165R1

PANEL

assy., lower hood R.H.

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.
