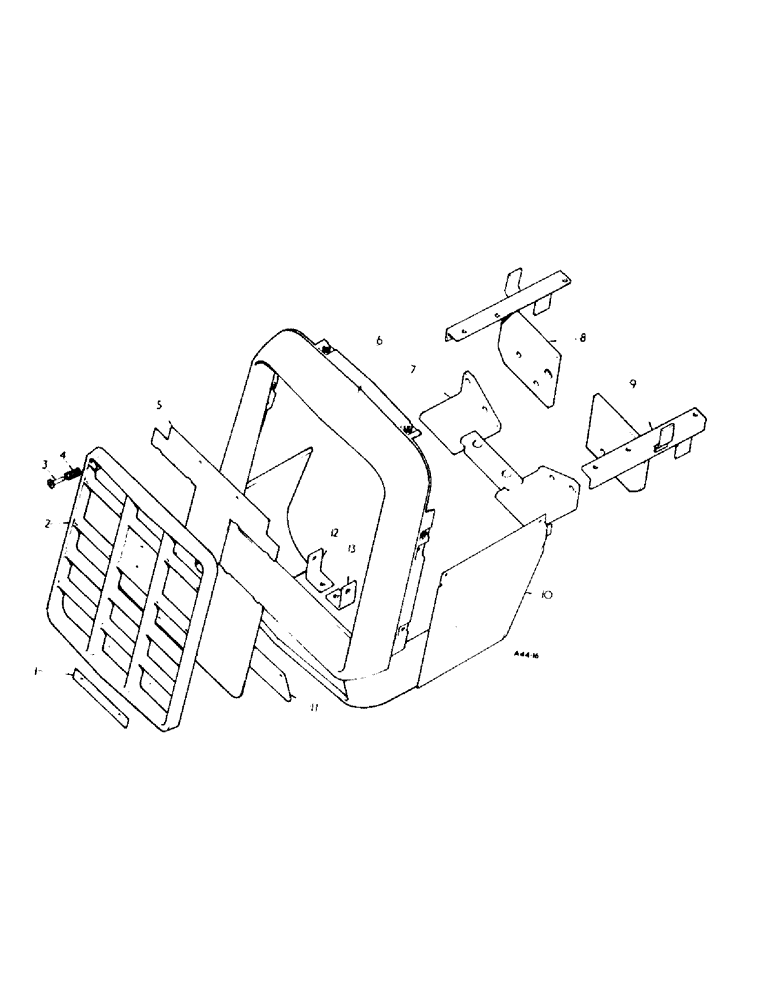

Запчасти Case IH 2300 (4-02) - CHASSIS, RADIATOR GRILLE (12) - CHASSIS

1

532192R1

BRACKET

grill retaining

1шт.

537163R1

BAR

grill retaining

1шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 slt. pan hd.

2шт.

20555R1

ROLL PIN

PIN, 5/32 x 1-1/4

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga.

2шт.

2

537496R1

GRILLE

GRILL, radiator

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, hex-hd. tap 10-24 x 1-1/2

4шт.

3

3113470R1

PIN

LATCH, assy., grill

2шт.

4

532180R1

SPRING

grill latch

2шт.

5

528155R3

SCREEN

grill

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga.

2шт.

6

3112152R1

GRILLE

HOUSING, assy., radiator grill

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

3112563R1

SUPPORT

front end weight

1шт.

3044051R1

WEIGHT

NUT, front support frame

2шт.

218200

NUT,7/8"-14, G5

hex 7/8 UNF

2шт.

3071296R1

STUD

front support frame

2шт.

8

3112561R1

FRAME

front cpte., R.H.

1шт.

179887

CABLE

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

hex hd. 5/8 UNF x 1-1/4

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

9

3112560R1

FRAME

front cpte., L.H.

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

hex hd. 5/8 UNF x 1-1/4

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

10

3112155R1

GRILLE

PANEL, assy., grill side L.H. (illustrated)

1шт.

3112156R1

GRILLE

PANEL, assy., grill side R.H.

1шт.

109084

NUT,1/4"-20, G5

2шт.

172439

SPACER

hex hd., tap 1/4" UNF x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

402406R1

PANEL

assy., lower radiator grill

1шт.

157728

SCREW

1/4" x 5/8" truss. hd. mach.

2шт.

12

3112160R1

BRACKET

grill housing angle L.H.

1шт.

17438R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 2

hex hd. 7/16 x 1-1/8

2шт.

NLS

NO LONGER SERVICED

7/16" hex

1шт.

496-21047

WASHER

plain, 15/32 x 59/64 x .051

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

13

3112161R1

BRACKET

grill housing angle R.H.

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex hd. 7/16" x 1-1/8"

2шт.

NLS

NO LONGER SERVICED

hex 7/16"

1шт.

496-21047

WASHER

plain 15/32 x 59/64 x .051

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

538025R91

NO LONGER SERVICED

GRILLE AND LATCH ASSY., radiator

1шт.
