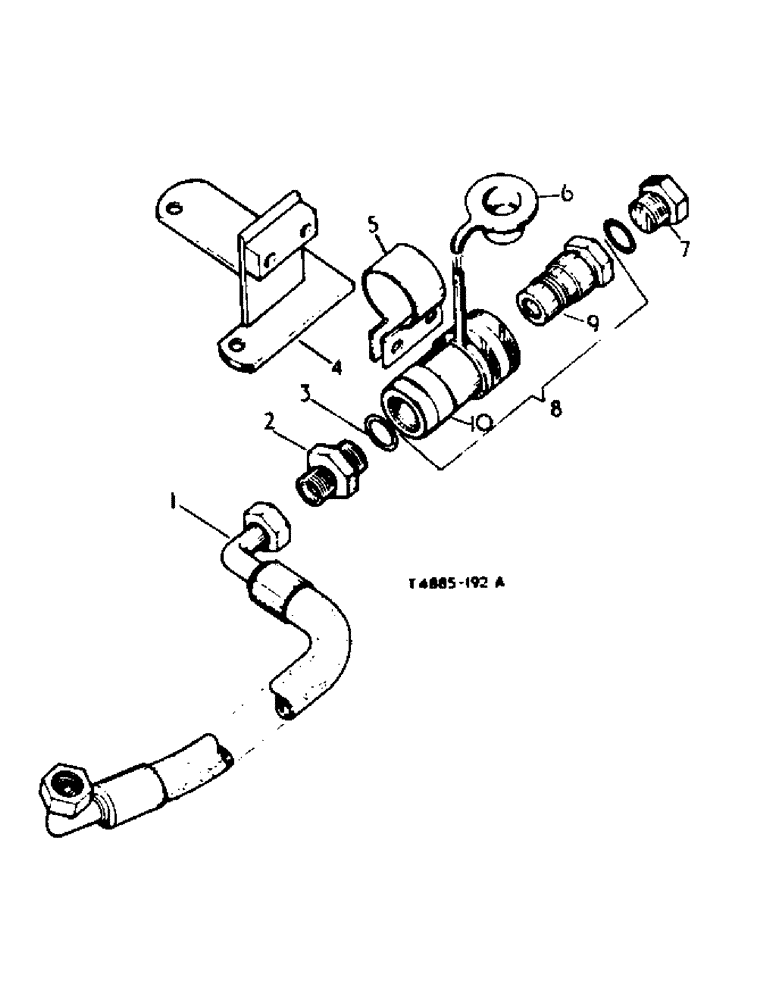

Запчасти Case IH 2300 (5-16) - HYDRAULIC ATTACHMENTS, SELF SEALING COUPLING ATTACHMENT, SINGLE BREAKAWAY (07) - HYDRAULIC SYSTEM

3063992R92

ATTACHMENT, self sealing coupling

1шт.

Must be fitted to first bank auxiliary valve

1шт.

1

3063993R91

HOSE

flexible

1шт.

2

3060799R2

ADAPTER

ADAPTOR, hose

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2/4 x 15/16 x 3/32

2шт.

4

3065078R11

SUPPORT

PLATE, assy., coupling support

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

hex hd. 5/16 x 1-1/2 (00712/up)

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16 (00712/up)

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(00712/up) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

hex hd. 5/16 x 2, Serial Range: (up-00711)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (up to 00711) 1/4"

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

(up to 00711) Hex, 3/8"-16 x 1 1/2", G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (up to 00711) 5/16"

2шт.

5

3114106R1

CLAMP

coupling

1шт.

5

3063989R1

CLAMP

coupling

1шт.

On orders for 3063988R1 or 3063989R1, furnish 1 off 3114106R1 together with 2 off 179818 and 102634

1шт.

5

3063988R1

CLAMP

coupling

1шт.

On orders for 3063988R1 or 3063989R1, furnish 1 off 3114106R1 together with 2 off 179818 and 102634

1шт.

6

373220R1

PLUG

SEAL, dust, Opt.

1шт.

6

401757R11

PLUG

SEAL, dust, Opt.

1шт.

7

9410360

PLUG

blanking 5/8

1шт.

8

3067991R91

BREAKER POINTS

COUPLING, breakaway CPTE. comprising:

1шт.

9

3067992R91

COUPLING, BREAK AWAY

COUPLING, breakaway male half CPTE.

1шт.

10

3067993R91

COUPLING, BREAK AWAY

COUPLING, breakaway female half CPTE.

1шт.

3115783R1

O-RING

female half

1шт.

3115782R1

BACK-UP RING

back up

1шт.
