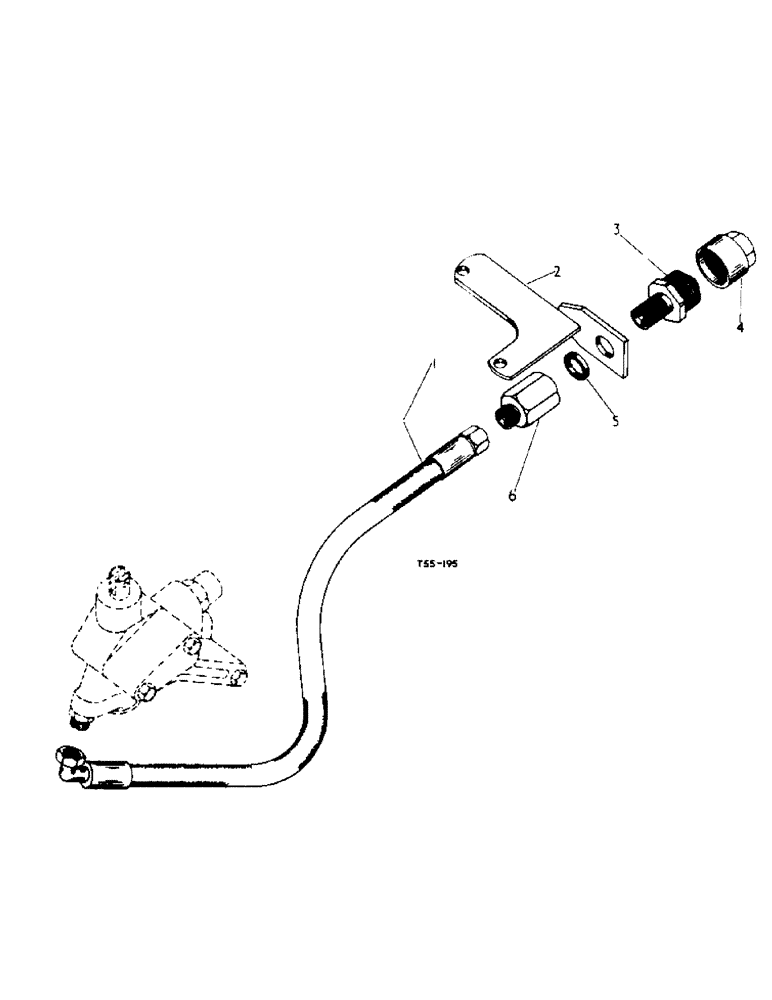

Запчасти Case IH 2300 (5-14) - HYDRAULIC ATTACHMENTS, SELF SEALING COUPLING ATTACHMENT, SINGLE ACTING VALVE (07) - HYDRAULIC SYSTEM

3063991R92

ATTACHMENT, self sealing coupling

1шт.

Fitted to tractors with single acting independent auxiliary valve attachment

1шт.

1

3063987R91

HOSE

flexible

1шт.

2

3065083R91

SUPPORT

assy., coupling

1шт.

3

705579R91

COUPLING

Dowty, male half, self sealing (optional w/3041962R91)

1шт.

3045140R1

RING

O-RING

1шт.

3045142R91

SLEEVE

assy., valve

1шт.

3045138R1

SPRING, locking

1шт.

3045139R1

SPRING, male half, valve

1шт.

3045141R1

VALVE

1шт.

3

3041962R91

COUPLING, BREAK AWAY

COUPLING, male half, self sealing (optional w/705579R91)

1шт.

3045135R1

RING

O-RING

1шт.

3045134R91

SLEEVE

assy., sub

1шт.

3045136R1

SLEEVE

tub

1шт.

3045137R1

SPRING

1шт.

4

3041963R1

CAP

dust (opt.)

1шт.

4

705578R1

CYLINDER END CAP

CAP, coupling dust (opt.)

1шт.

5

704337R91

WASHER, 1/2" BSP, Dowty

1шт.

6

3063984R1

ADAPTER

ADAPTOR, Serial Range: coupling-hose

1шт.
