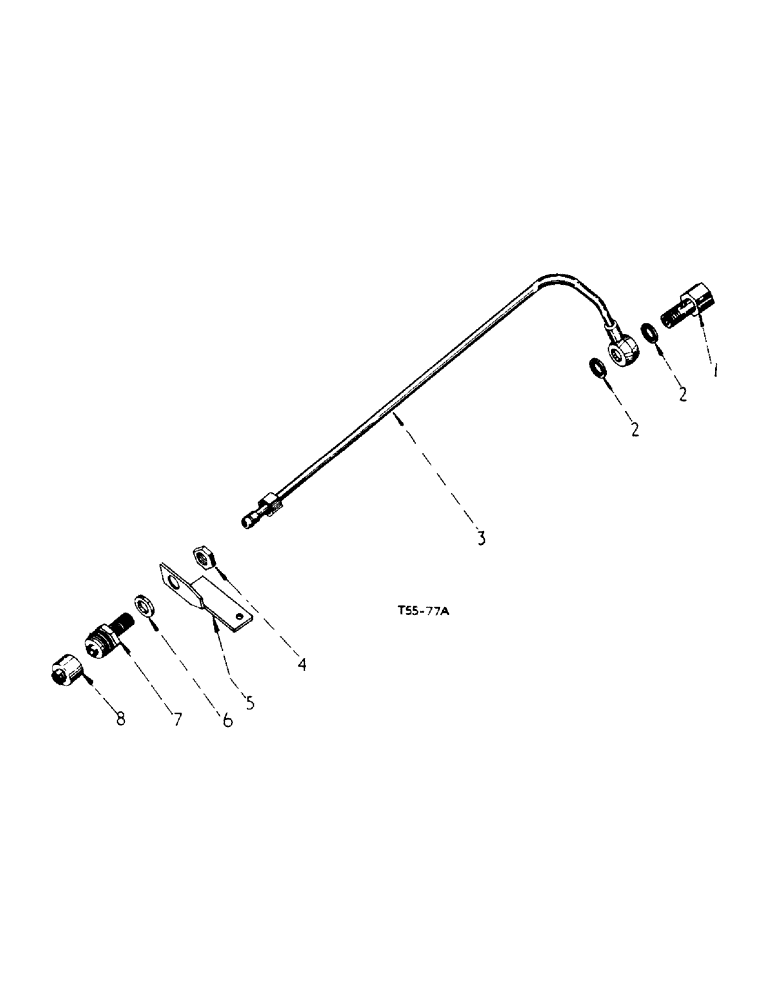

Запчасти Case IH 2300 (5-13) - HYDRAULIC ATTACHMENTS, SELF SEALINC COUPLING ATTACHMENT (07) - HYDRAULIC SYSTEM

3048413R92

COUPLING

ATTACHMENT, self-sealing coupling

1шт.

Can only be used when tractor is fitted with hydraulic lift attachment, Vary Touch

1шт.

1

705512R1

BOLT,1/2"-14 x 1 5/8"

self sealing coupling

1шт.

2

704337R1

SEALING WASHER

WASHER, Dowty, 1/2" BSP

2шт.

3

3048414R91

PIPE

assy., self sealing coupling

1шт.

4

752286R1

NUT

lock, 1/2" BSP

1шт.

5

3065076R11

SUPPORT

BRACKET, self sealing coupling

1шт.

NLS

NO LONGER SERVICED

1шт.

6

551658R1

WASHER

plain, 25/32" x 1-1/4" x 22 ga.

1шт.

To be used as required

1шт.

6

Q3501

WASHER

plain, 25/32" x 1-1/4" x 16 ga.

1шт.

To be used as required

1шт.

6

575813R1

WASHER

plain, 25/32" x 1-1/4" x 11 ga.

1шт.

To be used as required

1шт.

7

3041962R91

COUPLING, BREAK AWAY

COUPLING, self sealing, male half comprising:

1шт.

3045135R1

RING

O-RING

1шт.

3045134R1

SLEEVE, sub. assy.

1шт.

3045136R1

SLEEVE

tubular

1шт.

3045137R1

SPRING

1шт.

7

705579R91

COUPLING

self-sealing (Dowty) male half comprising:

1шт.

3045140R1

RING

O-RING

1шт.

3045138R1

SPRING, locking

1шт.

3045139R1

SPRING, valve (male half)

1шт.

3045141R1

VALVE

1шт.

3045142R91

SLEEVE

assy., valve

1шт.

8

705578R1

CYLINDER END CAP

CAP, coupling, dust (opt.)

1шт.

8

3041963R1

CAP

dust (opt.)

1шт.
