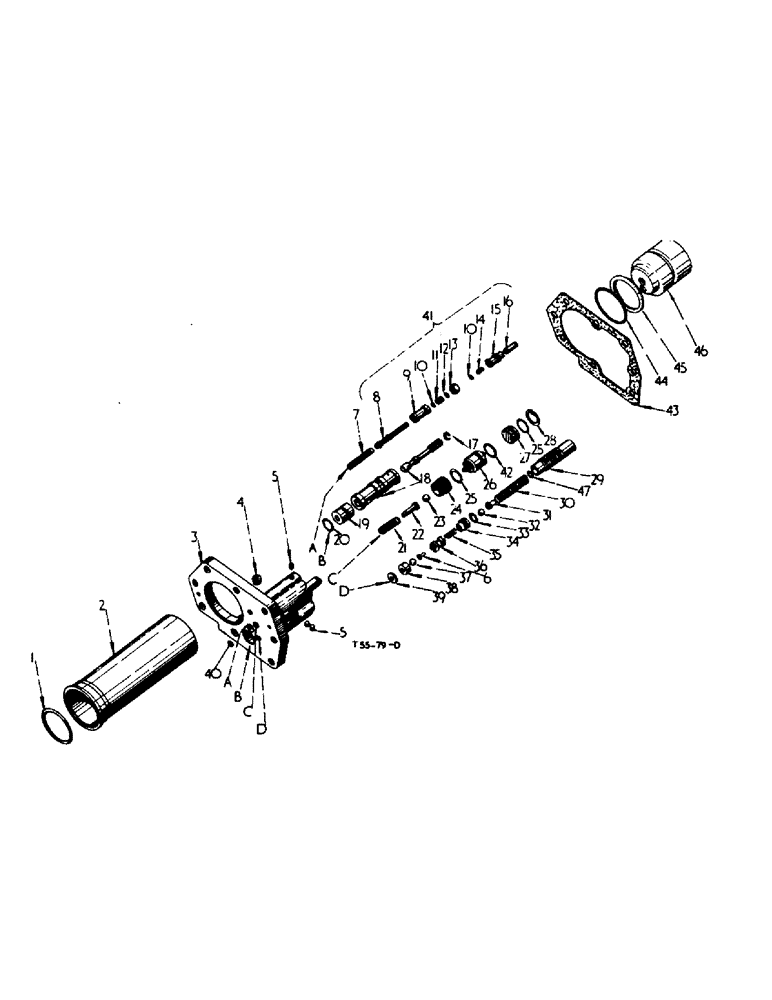

Запчасти Case IH 2300 (5-11) - HYDRAULIC ATTACHMENTS, VALVE BODY, CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

cyl. 2-5/8" x 3" x 3/16" (class 6)

1шт.

2

3044434R1

SLEEVE

CYLINDER, hydraulic lift

1шт.

3

3044426R1

BODY

valve

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

444697

PLUG,Hex Soc, 3/8"-18

3/8" NPT

1шт.

5

444687

PLUG,Hex Soc, 1/8"-27

3шт.

6

3063495R1

SEAT

RIDER, ball

1шт.

7

41608D

SPRING

spool

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL, lowering

1шт.

Order P/N 3049142R93

1шт.

9

NSS

NOT SOLD SEPARAT

SLEEVE, lowering

1шт.

Order P/N 3049142R93

1шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4" x 3/8" x 1/16"

2шт.

11

NSS

NOT SOLD SEPARAT

GLAND, lowering spool

1шт.

Order P/N 3049142R93

1шт.

12

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16" x 7/16" x 1/16" (class 6)

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG, lowering sleeve

1шт.

Order P/N 3049142R93

1шт.

14

3045610R1

SPRING

plunger

1шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE, lowering spool

1шт.

Order P/N 3049142R93

1шт.

16

NSS

NOT SOLD SEPARAT

PLUNGER, lowering spool

1шт.

Order P/N 3049142R93

1шт.

17

3040910R1

RETAINER

CIRCLIP, internal 1/2" bore

1шт.

18

3049088R91

SPOOL

and SLEEVE, w/circlip 304090R1 assy., (matched set)

1шт.

19

3040809R1

PLUG

main sleeve

1шт.

20

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

valve sleeve, 13/16" x 1-1/16" x 1/8"

1шт.

21

352026R2

SPRING

flow control valve ball

1шт.

22

350084R2

SEAT

RIDER, flow control valve ball

1шт.

23

3072912R1

BALL

flow control valve

1шт.

24

751562R1

SEAT

flow control valve

1шт.

25

704378R1

O-RING,0.139" Thk x 0.85" ID

2шт.

26

751563R91

PISTON

valve CPTE.

1шт.

27

751566R1

PLUG

valve piston

1шт.

28

751567R1

RETAINER

CIRCLIP, internal, 1-3/16" bore

1шт.

29

3108947R2

HOUSING

relief valve spring

1шт.

30

751557R1

SPRING

relief valve

1шт.

31

3108946R3

SEAT

RIDER, relief valve ball

1шт.

32

3072883R1

BALL,3/8" Dia

relief valve

1шт.

33

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

valve seat, 9/16" x 3/4" x 3/32" (class 6)

1шт.

34

751554R1

SEAT

relief valve

1шт.

35

3074227R1

SPRING

non-return valve

1шт.

36

751555R2

SLEEVE

non-return valve

1шт.

37

3072883R1

BALL,3/8" Dia

non-return valve

1шт.

38

751559R2

SEAT

non-return valve

1шт.

39

751560R1

COPPER WASHER

copper, 9/32" x 23/32" x 16 ga.

1шт.

40

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

flow control valve bore, 3/8" x 1/2" x 1/16/" (class 6)

1шт.

41

3049142R94

SPOOL

lowering assy comprising: (1) gland (NSS), (1) O-ring 379366R1, (2) O-ring 706584R1, (1) plug (NSS), (1) plunger (NSS), (1) sleeve (NSS), (1) sleeve (NSS), (1) spool (NSS), (1) spring 3045610R1

1шт.

42

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

valve piston

1шт.

43

3044437R2

GASKET

valve body

1шт.

44

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8" x 3" x 3/16"

1шт.

45

3109731R1

BACK-UP RING,67.03mm ID x 76.17mm OD x 1.802mm Thk

back-up

1шт.

46

3044376R92

PISTON

assy. comprising:

1шт.

3072882R1

BALL,3/32" Dia

chrome, steel . (grade 2) 3/32" Dia

1шт.

707747R1

SCRAPER RING

O-RING, relief valve

1шт.

707745R1

PLUG

relief valve

1шт.

3044377R4

PISTON

1шт.

707746R2

SEAT

RIDER, ball

1шт.

57561D

VALVE SPRING

SPRING, valve

1шт.

47

3110027R1

SHIM

steel (as required)

2шт.

3063656R93

VALVE

PACKAGE, non return valve and relief valve comprising the items shown in the footnote

1шт.

(2) ball 3072883R1, (1) housing 3108947R2, (1) "O" ring 377952R1, (1) rider 3063495R1, (1) rider 3108946R3, (1) seat 751554R1, (1) seat 751559R2, (1) spring 751557R1, (1) spring 3074227R1, (1) sleeve 751555R2, (1) washer 751560R1, (5) shim 3110027R1

1шт.

3063659R92

REPAIR KIT

PACKAGE, service, lowering spool comprising: (1) O-ring 3067183R1, (1) O-ring 379365R1, (1) O-ring 21433R1, (1) O-ring 384937R1, (1) O-ring 381871R1, (1) spool 3063657R92, (1) spring 41058DA

1шт.

3067990R91

KIT

PACKAGE, control valve O-ring service comprising: (1) O-ring 381871R1, (2) O-ring 704753R1, (2) O-ring 379365R1, (4) O-ring 384937R1, (2) O-ring 704378R1, (2) O-ring 385713R1, (2) O-ring 377952R1, (2) O-ring 3067183R1, (2) O-ring 37936

1шт.
