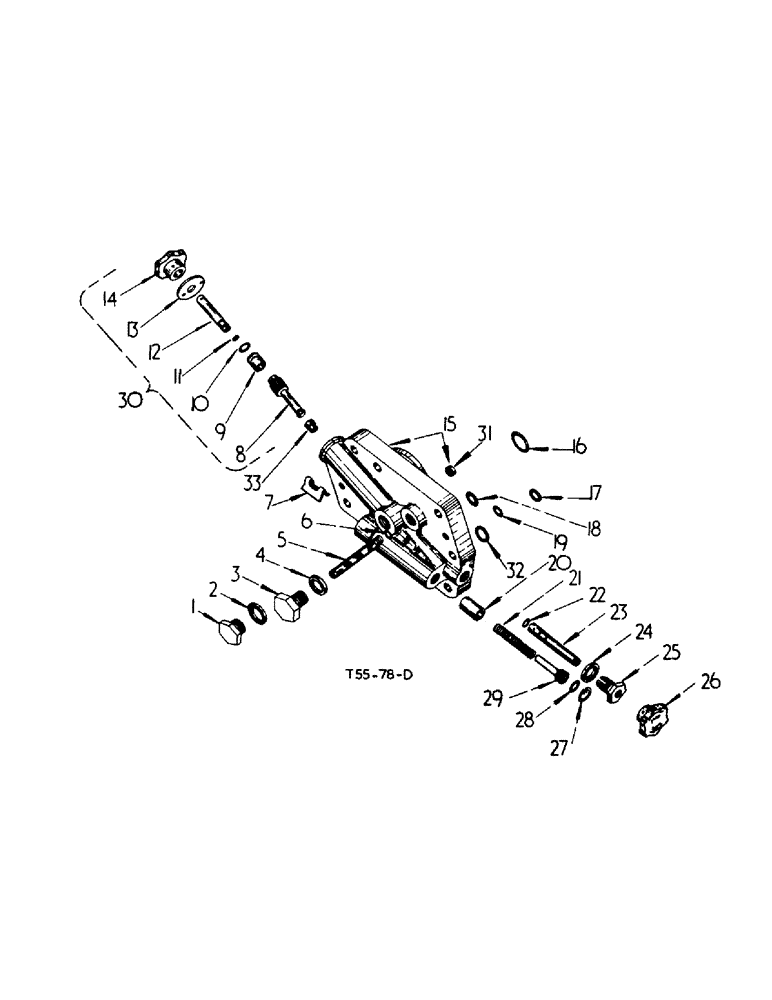

Запчасти Case IH 2300 (5-09) - HYDRAULIC ATTACHMENTS, CYLINDER HEAD, CONTROL VALVE (07) - HYDRAULIC SYSTEM

3069236R95

CONTROL VALVE

VALVE, control draft (Vary touch)

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex hd. 1/2" x 2-1/4"

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2" x 2-1/2"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

704743R91

SEALING WASHER

WASHER, Dowty, 1/4" B.S.P.

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex hd. 3/8 x 1-3/8 comprising: cylinder head, valve body (see detail list)

2шт.

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

1

706027R1

PLUG

1/2" BSP (Auxiliary Tapping)

1шт.

2

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

3

751580R3

BOLT,5/8" - 18 x 5/8"

needle valve cover

1шт.

4

3045118R1

SEAL

WASHER, Dowty

1шт.

5

3047294R95

FILTER

ORIFICE, assy.

1шт.

6

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4" x 3/8" x 1/16"

1шт.

7

3045109R2

SPACER

1шт.

8

3045102R2

VALVE

isolator

1шт.

9

3045106R1

BUSHING

BUSH, isolator valve

1шт.

10

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

O-RING, 15/32 x 21/32"

1шт.

11

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

7/32" x 11/32" (class 1)

1шт.

12

3045107R1

SHAFT

isolator valve knob

1шт.

443137

AXLE PIN

PIN, groove, 5/32" x 1/2"

1шт.

13

3045104R1

PLATE

stop

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

3045113R1

KNOB

isolator valve

1шт.

142494

GUIDE

Pin, grooved, 5/32" x 7/8", Type A

1шт.

15

3069235R91

CYLINDER

HEAD, w/plug and seat 3067146R1 assy., cyl.

1шт.

16

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

pressure outlet 11/16" x 7/8" x 3/32" (class 5)

1шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16" x 3/4" x 3/32"

1шт.

18

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4" x 3/4" (Angus)

1шт.

19

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

pressure inlet, 7/16" x 5/8" x 3/32" (class 6)

1шт.

20

3045105R1

PISTON

speed control

1шт.

21

3045111R1

SPRING

speed control piston

1шт.

22

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16" x 7/16" x 1/16" (class 6)

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL, speed control, order Spool 3045103R11

1шт.

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Rail 3/16" x 1/2", Slotted

1шт.

24

3045118R1

SEAL

WASHER, Dowty

1шт.

25

NSS

NOT SOLD SEPARAT

LATCH, spool, order Spool 3045103R11

1шт.

26

3045112R1

KNOB

speed control

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

Pin, grooved, 5/32" x 7/8", Type A

1шт.

27

3047246R1

RETAINER

CIRCLIP, (for 11/16" dia. bore)

1шт.

28

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

7/16" x 5/8" x 3/32"

1шт.

29

3108188R1

PLUG

ASSY.

1шт.

3045103R11

SPOOL

speed control comprising: (1) knob 3045112R1, (1) latch, (1) pin 17136R1, (1) pin 142494, (1) spool

1шт.

30

3045102R21

VALVE

assy., isolator comprising: (1) bush 3045106R1, (1) knob 3045113R1, (1) O-ring 23524R1, (1) O-ring 3045116R1, (1) pin 443137, (1) pin 142494, (1) plate 3045104R1, (1) shaft 3045107R1, (1) valve 3045102R1

1шт.

31

NSS

NOT SOLD SEPARAT

(Not serviced)

1шт.

32

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16" x 3/4" c 3/32" (class 6)

1шт.

33

3067146R1

SEAT

isolator valve

1шт.
