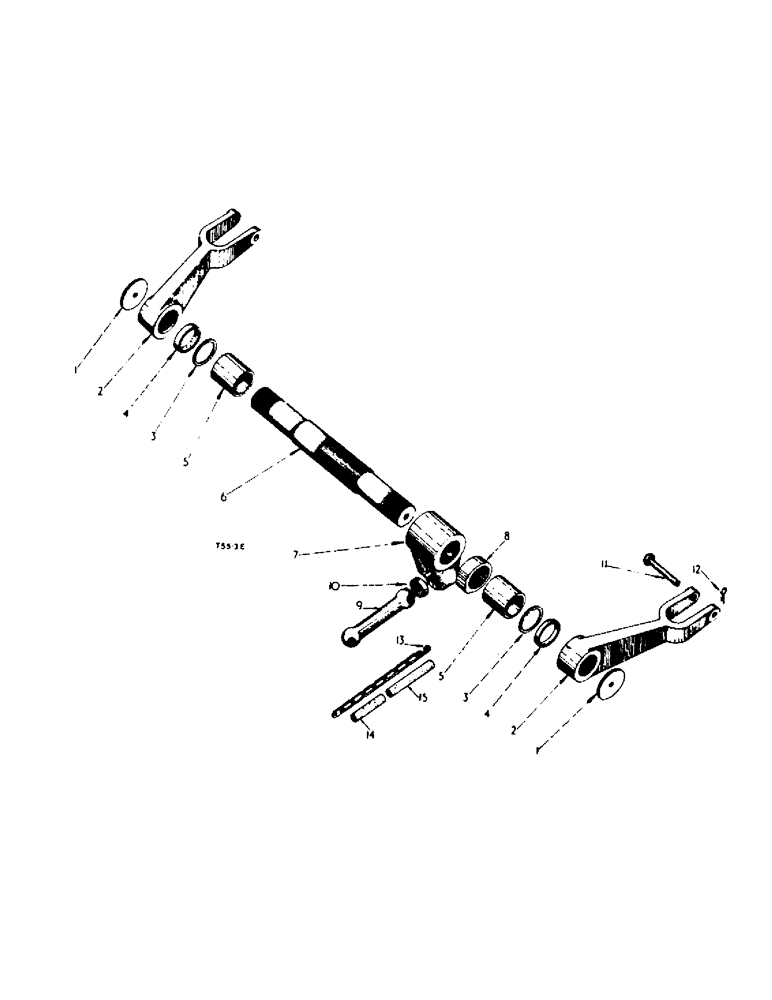

Запчасти Case IH 2300 (5-07) - HYDRAULIC ATTACHMENTS, HYDRAULIC LIFT ARMS, HYDRAULIC LIFT ATTACHMENT, VARY TOUCH (07) - HYDRAULIC SYSTEM

1

708922R1

PLATE, lift arm, retaining

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

3044375R1

ARM

lift

2шт.

3

3044372R1

WASHER

rockshaft

2шт.

4

3109496R91

SEAL

OIL SEAL, rockshaft, Opt.

2шт.

4

708920R92

RETAINER

OIL SEAL, rockshaft, Opt.

2шт.

4

3071148R91

OIL SEAL,55.12mm ID x 73.28mm OD x 12.7mm Thk

OIL SEAL, rockshaft, Opt.

2шт.

4

3109497R91

SEAL

OIL SEAL, rockshaft, Opt.

2шт.

5

3044371R1

BUSHING

BUSH, rockshaft

2шт.

6

3044370R1

SHAFT

ROCKSHAFT

1шт.

7

3044373R1

ARM

rocker

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

hex hd. 3/8" UNF x 1"

1шт.

8

3048403R1

CAM

rockshaft

1шт.

9

708924R1

ROD

connecting

1шт.

M79594

PIN,5/16" x 3 1/4"

std. hd. 5/16" x 3-1/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

10

3046977R1

BUSHING

BUSH, connecting rod

1шт.

11

3044309R1

PIN

std. hd. (5/8" dia. x 3-3/8")

2шт.

12

720631R1

LINCH PIN

PIN, cotter, Opt.

2шт.

12

520175R1

CLIP

PIN, cotter, Opt.

2шт.

13

3070768R91

CHAIN

safety CPTE.

1шт.

14

395829R1

PIPE

HOSE, safety chain (short)

1шт.

15

395830R2

HOSE,0.50" ID x 5.00"

Safety Chain, Long 0.50" ID x 5.00"

1шт.
