Запчасти Case IH 2300 (5-04) - HYDRAULIC ATTACHMENTS, HOUSING, HYDRAULIC LIFT ATTACHMENT, VARY TOUCH (07) - HYDRAULIC SYSTEM

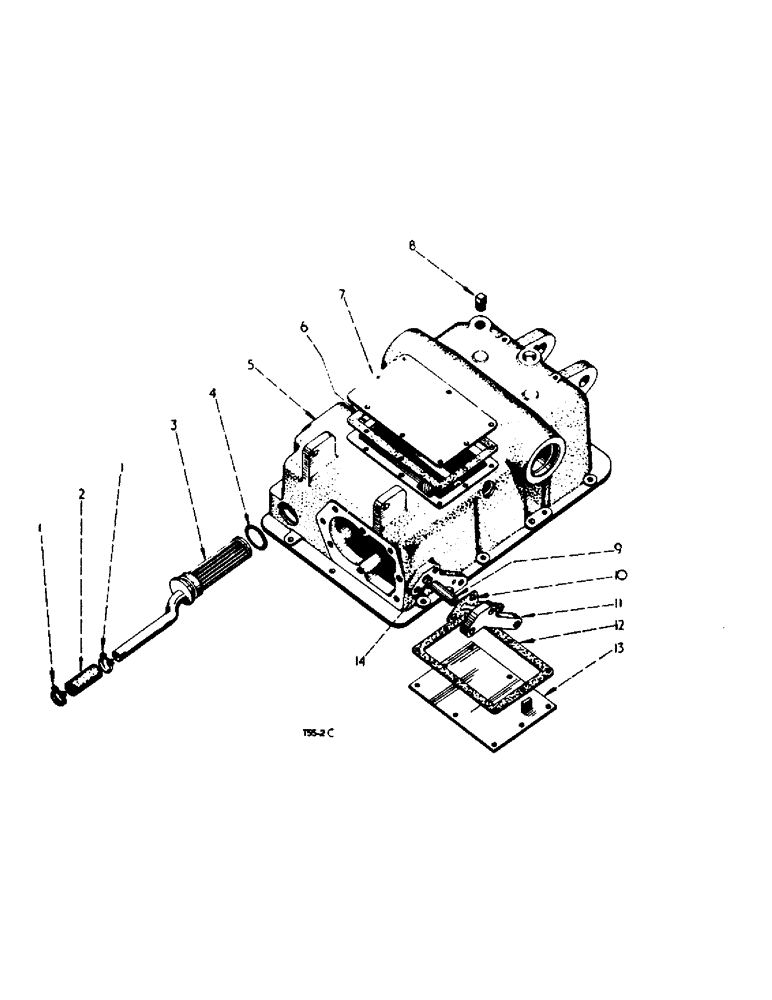

Схема запчастей Case IH 2300 - (5-04) - HYDRAULIC ATTACHMENTS, HOUSING, HYDRAULIC LIFT ATTACHMENT, VARY TOUCH (07) - HYDRAULIC SYSTEM
11
10
9
8
4
14
3
12
7
1
2
6
1
5
13

Артикул

Название

Примечание

Количество

1

709899R91

CLAMP

hose

2шт.

2

704741R1

HOSE,0.81" ID x 2.50"

Suction Filter 0.81" ID x 2.50"

1шт.

3

3044368R93

FILTER

CPTE., suction

1шт.

4

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

O-RING, suction filter

1шт.

5

3070782R1

HOUSING

hydraulic lift (Austrian Market)

1шт.

5

3044365R4

HOUSING

hydraulic lift

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex hd. 3/8" x 1-3/8"

8шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

hex hd. 3/8" x 3-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

6

3044367R2

GASKET

top cover plate

1шт.

7

3044366R1

PLATE

top cover

1шт.

179814

SPACER

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

219301

SHAFT

3/4" pipe, Opt.

1шт.

8

444592R1

PLUG

3/4" ANPT pipe, Opt.

1шт.

8

217-442

PLUG,3/4" - 14

3/4" pipe, Opt.

1шт.

9

751540R1

CONNECTOR, ELEC

CONNECTOR, valve return

1шт.

10

3061055R2

GASKET

auxiliary valve, cover plate

1шт.

11

751541R1

PLATE

auxiliary valve, cover

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

751499R2

GASKET

hydraulic lift housing, cover plate

1шт.

13

751497R11

PLATE

CPTE., cover, hydraulic lift housing

1шт.

179814

SPACER

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

"O" RING, 9/16" x 3/4" x 3/32" (class 6)

1шт.

58997DB

PLUG

magnetic drain, 3/4" NPT

1шт.

172570

PLUG,Exp, 1 3/8"

1-3/8" expansion

1шт.

Выбрано товаров: 28
