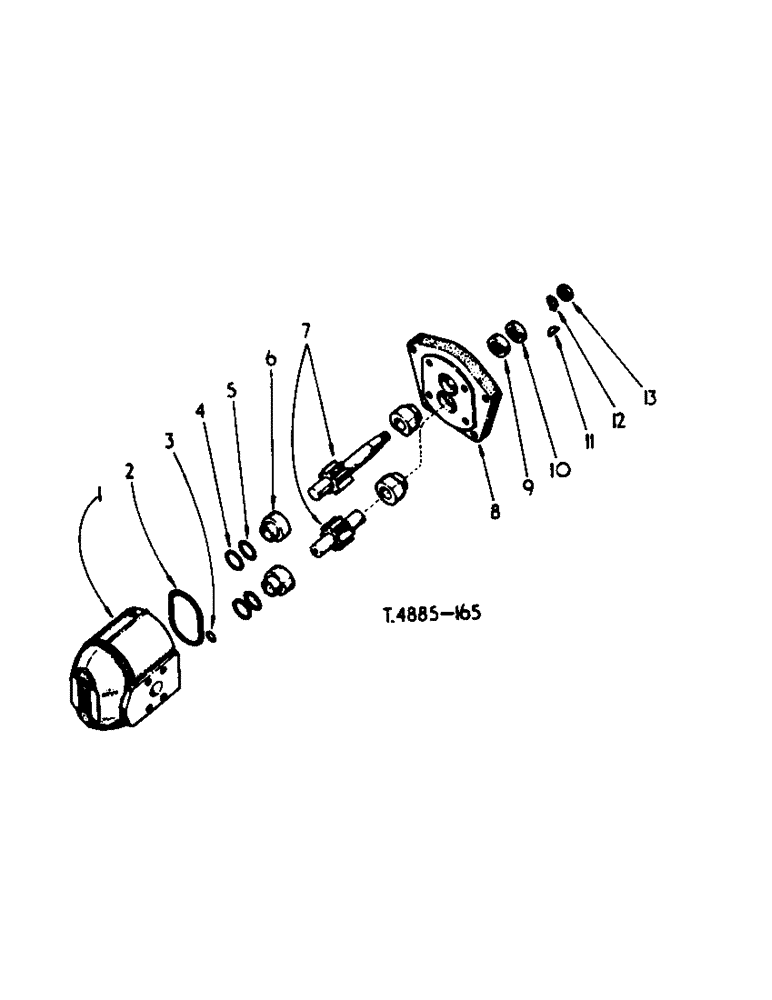

Запчасти Case IH 2300 (5-03) - HYDRAULIC LIFT ATTACHMENTS, HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

3067220R91

PUMP

hyd. CPTE., (Dowty)

1шт.

1

3067281R1

BODY, pump

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal package P/N 3105195R91

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal package P/N 3105195R91

1шт.

4

3067289R1

RING, back-up

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Part of seal package P/N 3105195R91

1шт.

6

3067285R91

BUSHES, (matched pair)

2шт.

7

3067283R91

GEAR, drive and driven (matched pair)

1шт.

8

3111763R1

COVER, pump body, Opt.

1шт.

8

3067281R1

COVER, pump body, Opt.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL, oil

1шт.

Part of seal package P/N 3105195R91

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, oil

1шт.

Part of seal package P/N 3105195R91

1шт.

11

706067R1

KEY

No. 405 Woodruff

1шт.

12

706069R1

LOCK WASHER

WASHER, tab

1шт.

13

3044638R1

NUT

LOCKNUT

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3/4" x 9/16" x 3/32" class 5 (outlet)

1шт.

3044642R1

SCREW

1/4" x 3/4" (Allen) (outlet port)

2шт.

706053R1

SPRING WASHER

lock (outlet port)

2шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8" x 1-1/16" x 3/32" class 5 (inlet)

1шт.

706075R1

SCREW

5/16" x 3/4" (Allen)

1шт.

706072R1

WASHER

lock (inlet port)

2шт.

3105195R91

STRIPPER PACKAGE

PACKAGE, seal, Includes: Ref. 2, 3, 5, 9 and 10

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, hydraulic lift comprising: control lever (see detail list), control valve assy ( see detail list), housing, lift arms (see detail list), pump (see detail list), pipes (suction and pressure) (see detail list)

1шт.
