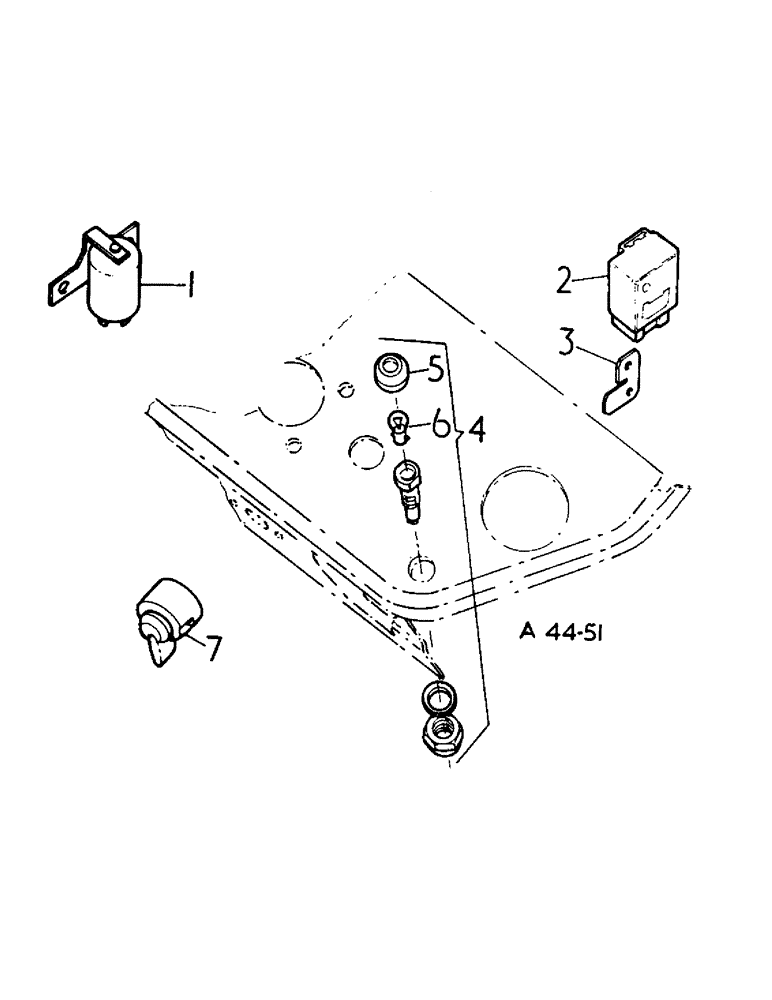

Запчасти Case IH 2300 (3-30) - ELECTRICAL, DIRECTION INDICATOR INSTRUMENTS, DELUXE LIGHTING AND AUSTRIAN MARKET (06) - ELECTRICAL SYSTEMS

1

3112365R91

FLASHER UNIT

UNIT, flasher

1шт.

For machines with flat top fenders only

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 sltd. pan hd. tap

2шт.

2

3112634R91

FLASHER UNIT

UNIT, flasher

1шт.

For machines fitted with safety cab or frame only

1шт.

3

3112635R1

BRACKET

flasher mounting

1шт.

For machines fitted with safety cab or frame only

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 sltd. pan hd. tap

1шт.

4

3072048R91

WARNING LIGHT

RIGHT, flasher warning, comprising

2шт.

5

3074995R91

CAP

screwed w/lens (yellow)

1шт.

6

894350H1

BULB

12v 2.2w m.c.c.

1шт.

7

3072070R91

FLASHER SWITCH

SWITCH, flasher

1шт.

134532

DISC

NUT, 6-32 C-Z sq. mach screw

2шт.

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

6-32 ZN x 3/4 sltd. rd. hd. mach

2шт.

106495

Lock, #6

2шт.
