(3-28) - ELECTRICAL, STOP, TAIL AND TRAFFICATOR LAMP, AUSTRIAN MARKET AND DELUXE LIGHTING

Запчасти Case IH 2300 (3-28) - ELECTRICAL, STOP, TAIL AND TRAFFICATOR LAMP, AUSTRIAN MARKET AND DELUXE LIGHTING (06) - ELECTRICAL SYSTEMS

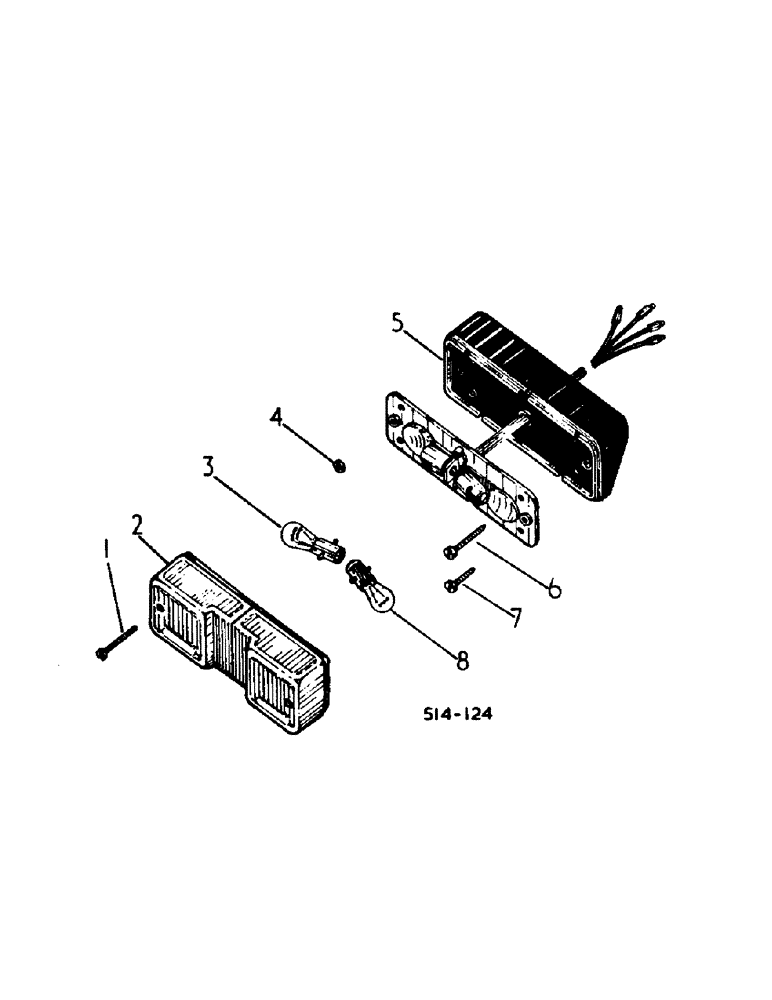

Схема запчастей Case IH 2300 - (3-28) - ELECTRICAL, STOP, TAIL AND TRAFFICATOR LAMP, AUSTRIAN MARKET AND DELUXE LIGHTING (06) - ELECTRICAL SYSTEMS
7
1
8
6
3
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3112333R91

LAMP, stop/tail and trafficator, consists of:

2шт.

1

3112785R1

SCREW

4BA x 1-1-2 zinc pltd.

4шт.

3

3112692R1

LENS

red/amber

2шт.

3

894878H1

BULB

LAMP, 12v, 21-5w sbc bulb

2шт.

4

3112786R1

WASHER

RING, retaining

4шт.

5

NSS

NOT SOLD SEPARAT

CUSHION, black rubber 20 deg.

2шт.

6

3112705R1

SCREW, no. 10-16 x 1-3/4 pan hd. std.

4шт.

7

24247R1

SCREW

no. 10-16 x 7/8 pan hd. std.

4шт.

8

3025210R91

BULB

LAMP, 12v 21w scc

2шт.
