(3-27) - ELECTRICAL, STOP, TAIL AND TRAFFICATOR LAMP, AUSTRIAN MARKET AND DELUXE LIGHTING

Запчасти Case IH 2300 (3-27) - ELECTRICAL, STOP, TAIL AND TRAFFICATOR LAMP, AUSTRIAN MARKET AND DELUXE LIGHTING (06) - ELECTRICAL SYSTEMS

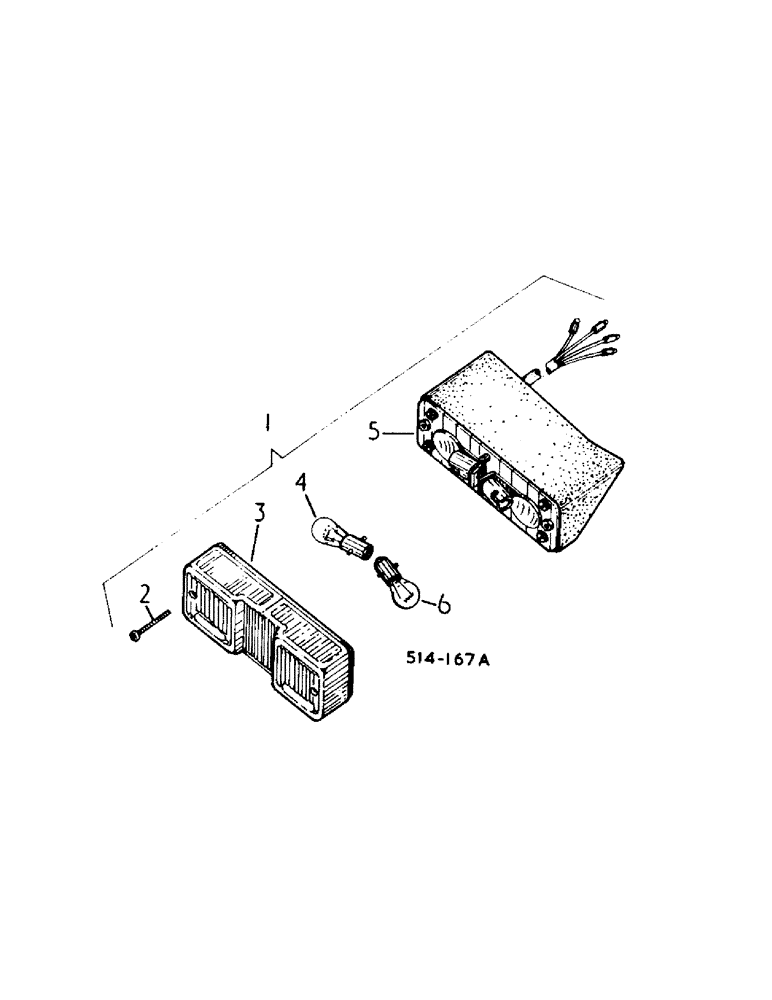

Схема запчастей Case IH 2300 - (3-27) - ELECTRICAL, STOP, TAIL AND TRAFFICATOR LAMP, AUSTRIAN MARKET AND DELUXE LIGHTING (06) - ELECTRICAL SYSTEMS
2
3
1
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3113203R91

LIGHT ASSY.

LAMP, stop, tail and trafficator L.H.

1шт.

1

3113204R91

LIGHT ASSY.

LAMP, stop, tail and trafficator R.H. each consists of:

1шт.

3

3112785R1

SCREW

4BA x 1-1/2 zinc pltd.

2шт.

3

3112692R1

LENS

red/amber

1шт.

4

894878H1

BULB

LAMP, 12v, 21-5w sbc bulb

1шт.

5

NSS

NOT SOLD SEPARAT

CUSHION, black rubber

1шт.

6

3025210R91

BULB

LAMP, 12v 21w scc

2шт.
